TS

S-Beam Bi-Directional Load Cell | Hermetically Sealed

CAPACITY
10KG-10,000KG

NON-LINEARITY
0.02% RO

RATING
IP65/IP68

The TS is a low-profile, stainless steel S-Type load cell for tension and compression measurements during static or dynamic testing.


Load cells of this type with a capacity of 100KG or more are laser welded to achieve IP68 sealing.



The design is suitable for a wide range of applications and can be supplied with rod ends if required.


To view the full specification, please download the product datasheet.

Download STP View Data sheet Get a Quote
TS s-type shear beam load cell for tension and compression measurement

Nature's Symphony

Breathtaking colors of our planet
Button

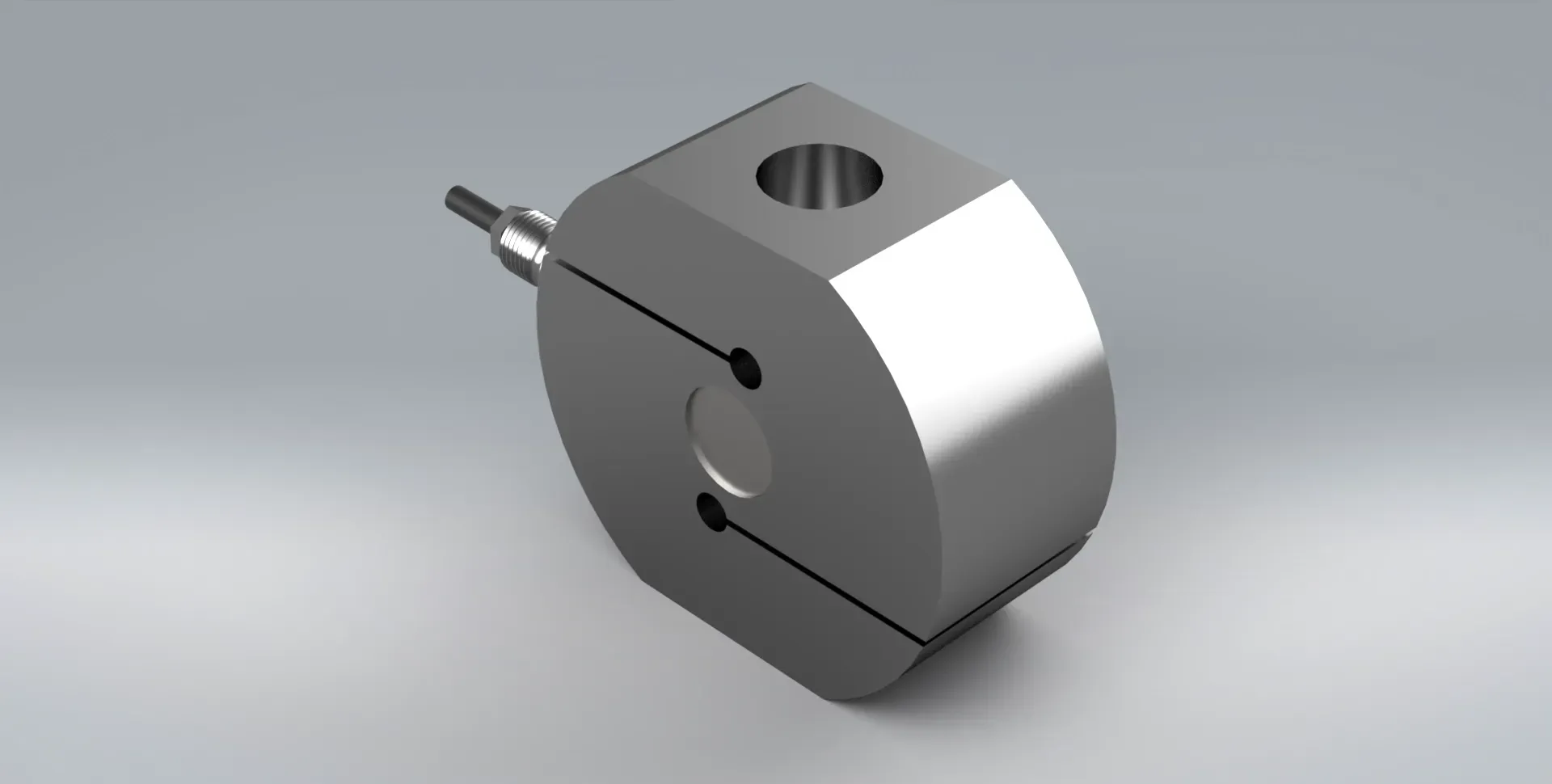

S-type load from Procter and Chester Measurements on a grey background

Faces of Humanity

Portraits of people from around the globe
Button

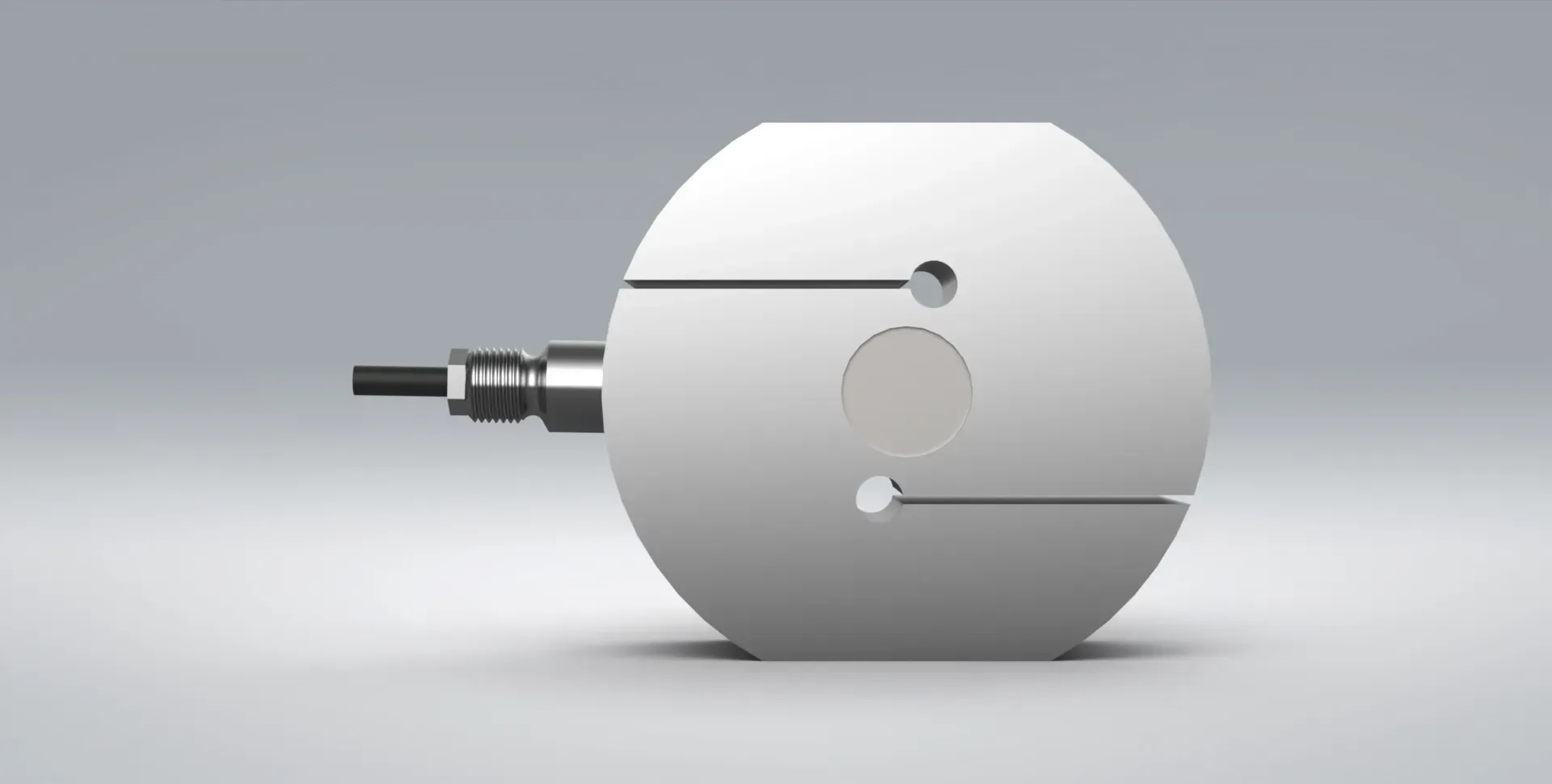

TS low-profile s-type load cell made from stainless steel for tension and compression measurement
