Low-Profile Pancake Load Cell with Shear Web Design

CAPACITY
0.5kN – 1000kN

NON-LINEARITY
±0.15% RO

RATING
IP65

The PLC is a bi-directional pancake load cell designed for monitoring both tension and compression in static or dynamic test rig applications . Its shear web design permits a degree of misaligned loading with minimal effect on the load cell output.


This load cell can be customised through dimensional modification, addition of a redundant bridge, temperature range, sealing, etc.



An alternative to the PLC is the TC4 pancake load cell, which is of similar design and is considered an ‘off the shelf’ product.


To view the full standard specification and accessories available, please download the product datasheet.


If this load cell doesn’t quite suit your application, get in touch to discuss your requirement in more detail with one of our experienced team members.

Technical Information Download Data Sheet Get a Quote
PLC low-profile bi-directional pancake load cell with a shear web design used to measure tension and compression

Nature's Symphony

Breathtaking colors of our planet
Button

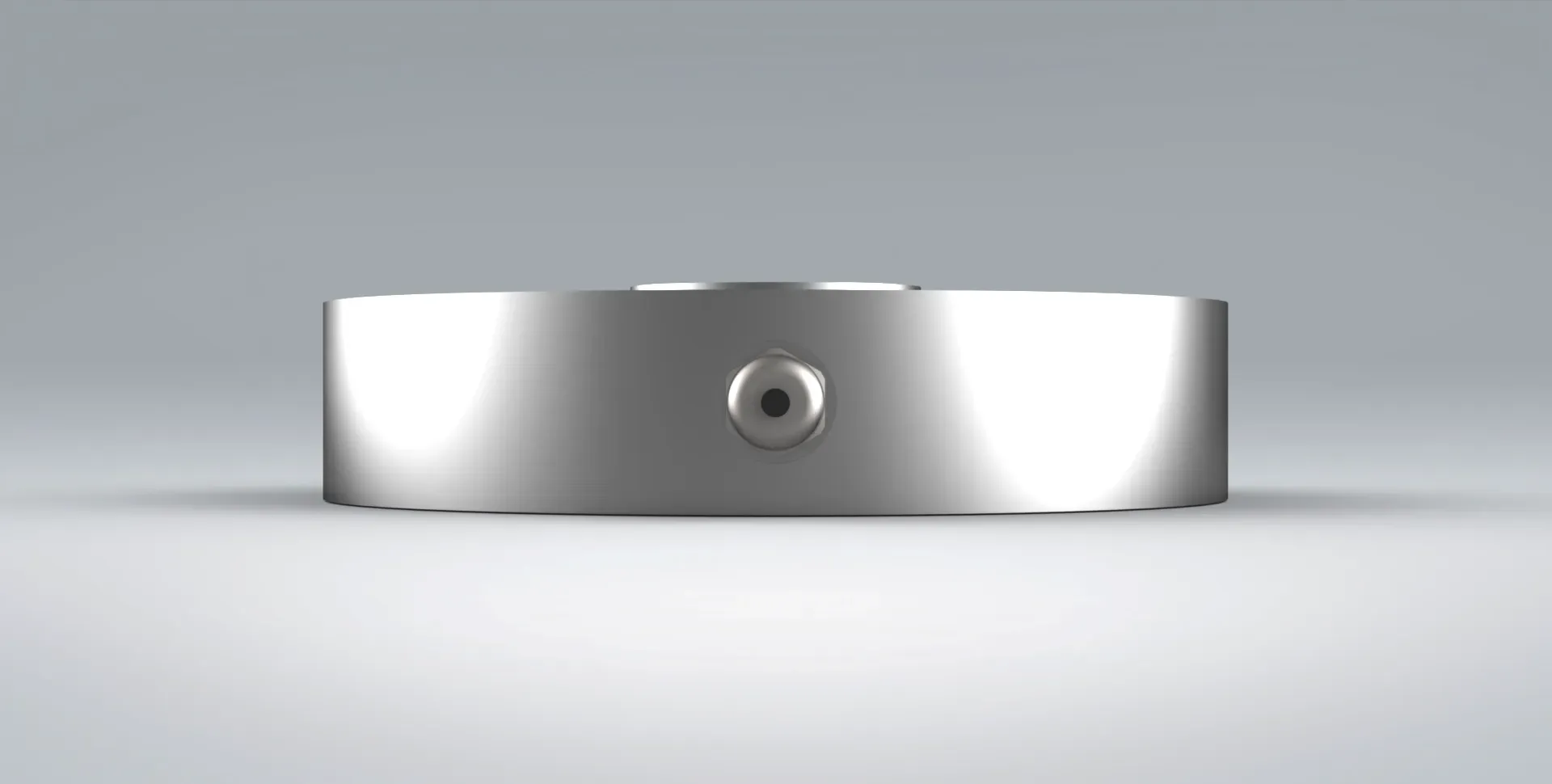

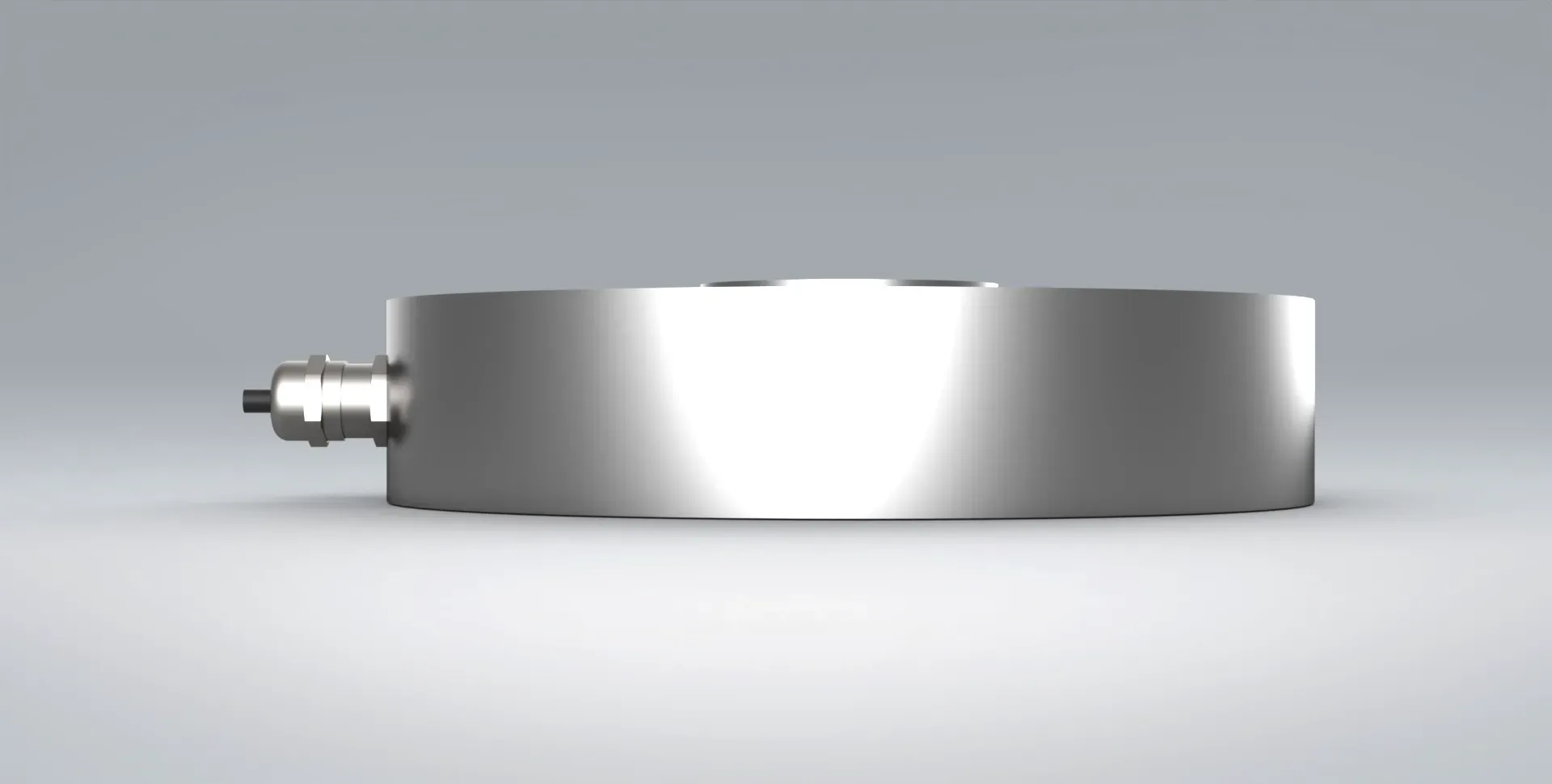

side view of the PLC pancake load cell on a grey background from PCM

Faces of Humanity

Portraits of people from around the globe
Button
PLC bi-directional pancake load cell used to measure tension and compression

Sands of Time

Stark beauty of desolate dunes
Button

Similar Products

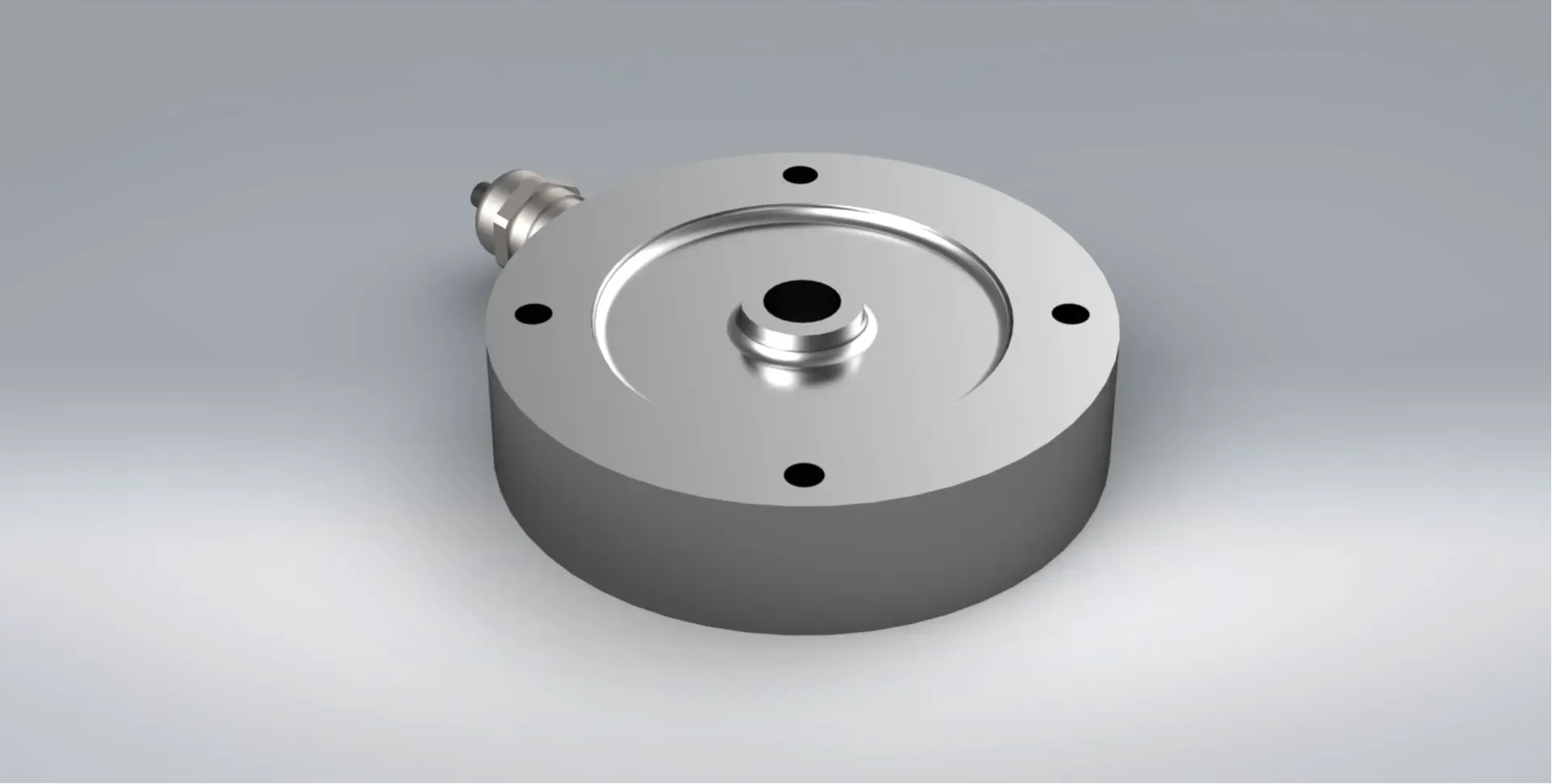

a 3D designed model of the DIA compression load cell with a diaphragm design from PCM.

DIA

May 19, 2024
CAPACITY: 500KG - 1000KG
NON-LINEARITY: ±1% FS
RATING: IP65

available

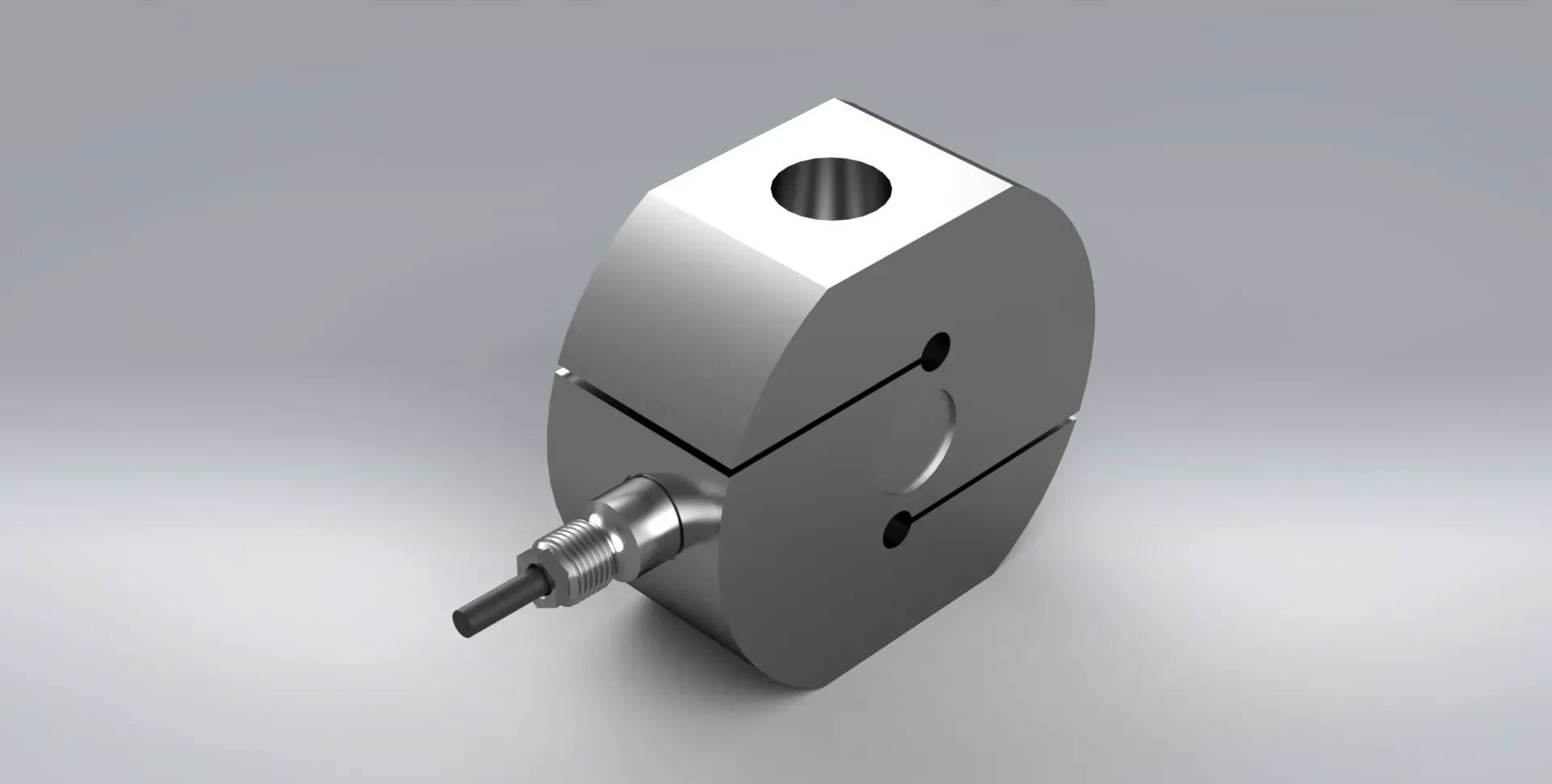

A 3d model of a TS stainless steel S-Type load cell, used for compression or tension measurement in static or dynamic testing

TS

By Connor • May 12, 2024
CAPACITY: 10KG-10,000KG
NON-LINEARITY: N/A
RATING: IP65/IP68

available
A close up design of the TC4 bi-directional pancake load cell for tension and compression measurement from stainless steel.

TC4

May 11, 2024
CAPACITY: 0.5TF – 500TF
NON-LINEARITY: ±0.05% FS
RATING: IP67

Typical Specification

PARAMETER VALUE UNITS
Capacities Range 0.5, 1, 2.5, 5, 12.5, 25, 50, 100, 125, 250, 500, 1000 kN
Rated Output (NOMINAL) 2 mV/V
Linearity & Non-Repeatability 0.15 ±% of Rated Output
Zero Balance 1 ±% of Rated Output
Temperature Effect (ON ZERO) 0.02 ±% of Rated Output/°C
Temperature Effect (ON OUTPUT) 0.1 ±% of Rated Output/°C
Temperature Range (COMPENSATED) Ambient to +70 °C
Temperature Range (OPERATING) -30 to +80 °C
Input Resistance 780 (NOMINAL) Ω
Output Resistance 700 (NOMINAL) Ω
Insulation Resistance >2 GΩ
Excitation (RECOMMENDED SUPPLY) 10 Volts AC or DC
Excitation (MAXIMUM SUPPLY) 20 Volts AC or DC
Mechanical Limit (SAFE OVERLOAD) 150 % of Rated Output
Mechanical Limit (ULTIMATE OVERLOAD) 300 % of Rated Output
Cable Length 5 m
Cable Type 4-wire, screened -
Construction Material Aluminium(0.5-5kN) Stainless Steel(>5kN) -
Environmental Protection IP65 -

Additional Information

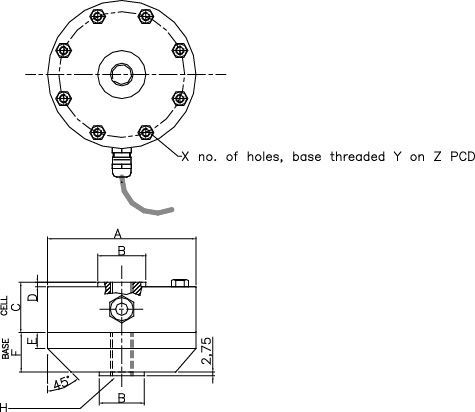

Outline dimensions for the PLC low-profile pancake load cell.

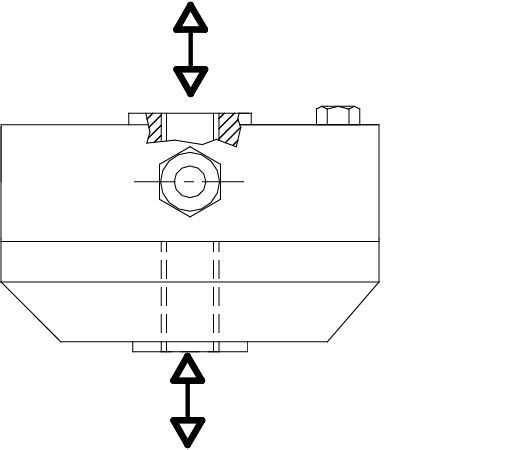

Loading instructions for the PLC low-profile pancake load cell.
