T20

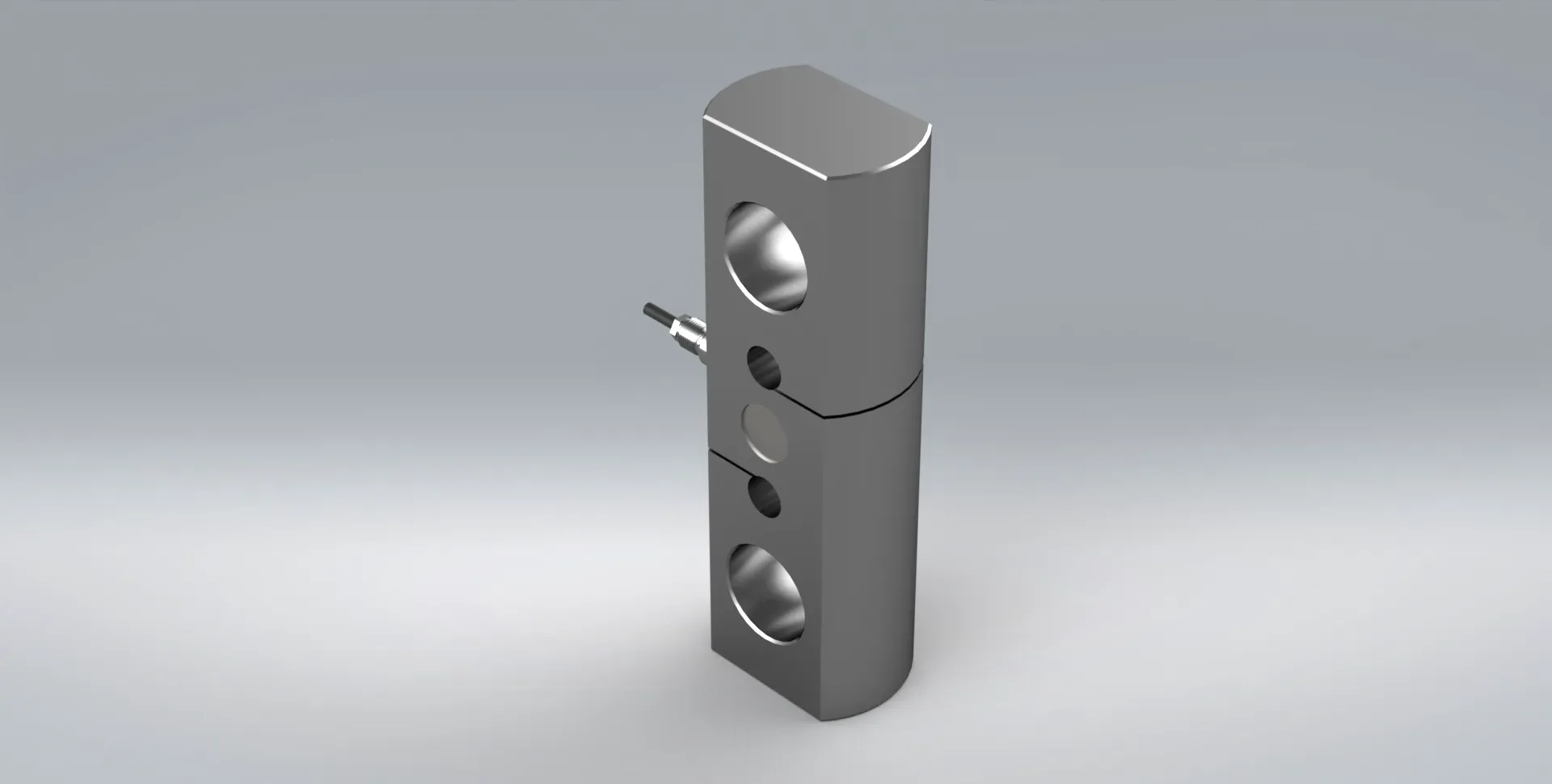

Tension Link Load Cell | Hermetically Sealed
CAPACITY
5TF-20TF
NON-LINEARITY
±0.023% RO
RATING
IP68

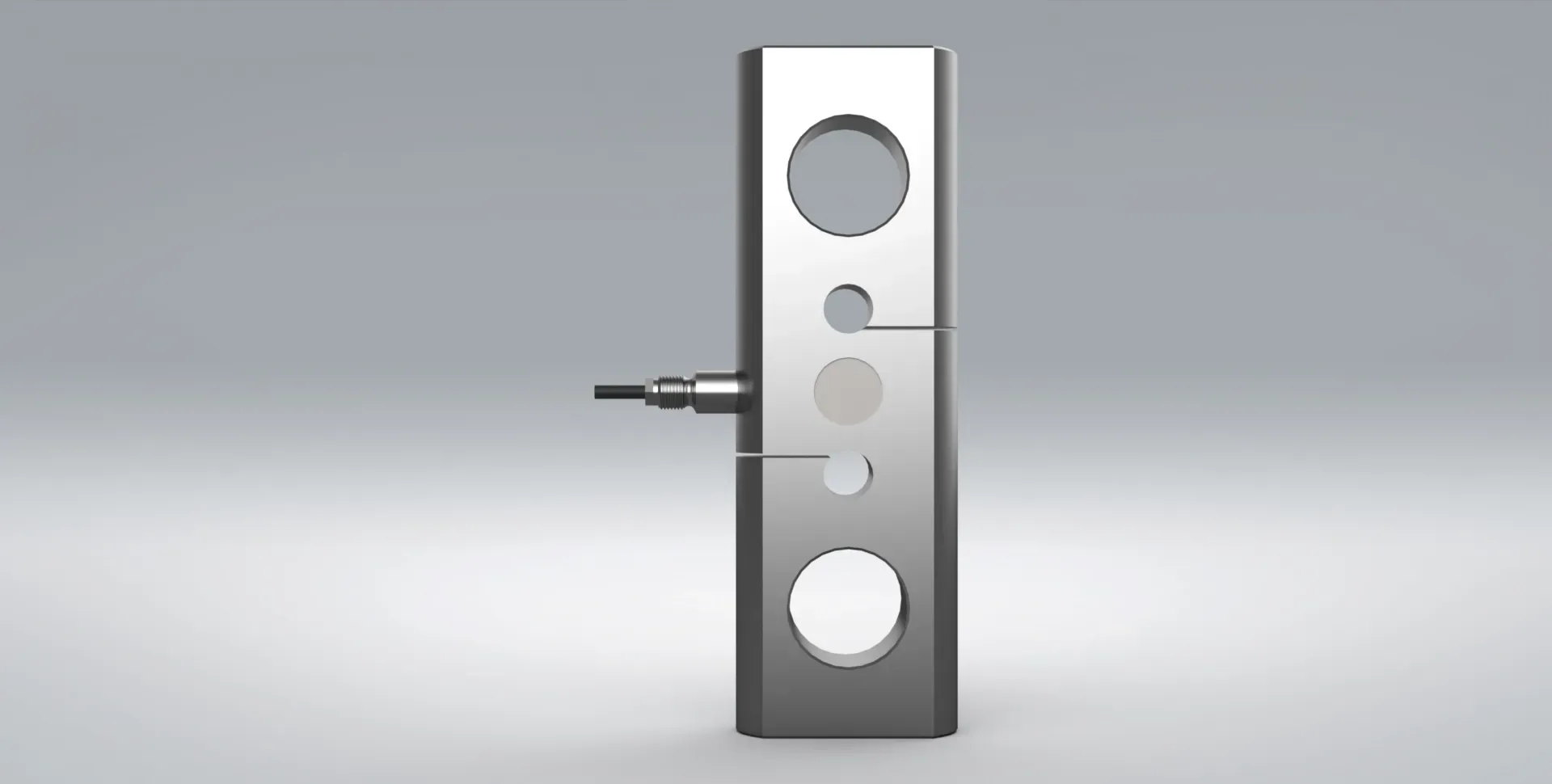

The T20 is a standard tension link load cell for simple tension measurement incontrolled lifting or test rig applications
Its laser welded stainless steel assembly achieves IP68 sealing, making it robust and resilient to harsh environments.
The cable exit is hard wired, but a plug/socket arrangement can be supplied, if required.
Should the application demand a wireless option, we can incorporate the T24 instrumentation.
To view the full specification, please download the product datasheet.
Similar Products
Typical Specification
| PARAMETER | VALUE | UNITS |
|---|---|---|
| Capacities Range (Emax) | 5, 7.5, 10, 15, 20 | tf |
| Combined Error | ≤0.023 | ±% of Rated Output |
| Non-Repeatability | ≤0.014 | ±% of Rated Output |
| Zero Return ((OVER 30 MINUTES) | ≤0.030 | ±% of Applied Load |
| Creep at Nominal Load (OVER 30 MINUTES) | ≤0.024 | ±% of Applied Load |
| Creep at Nominal Load (OVER 20 & 30 MINUTES) | ≤0.011 | ±% of Applied Load |
| Temperature Effect (ON ZERO) | ≤0.028 | ±% of Rated Output/°C |
| Temperature Effect (ON OUTPUT) | ≤0.008 | ±% of Rated Output/°C |
| Rated Output | 2 | mV/V |
| Sensitivity Tolerance | ≤0.1 | ±% of Rated Output |
| Input Impedance | 420 ±20 | Ω |
| Output Impedance | 350 ±2 | Ω |
| Insulation Resistance | >5 | GΩ |
| Zero Balance | ≤1 | ±% of Rated Output |
| Excitation RECOMMENDED | 10 | Volts AC or DC |
| Excitation NOMINAL | 1-15 | Volts AC or DC |
| Excitation MAXIMUM | 18 | Volts AC or DC |
| Mechanical Limit SERVICE LOAD | 120 | % of Rated Output |
| Mechanical Limit SAFE OVERLOAD | 150 | % of Rated Output |
| Mechanical Limit ULTIMATE OVERLOAD | >300 | % of Rated Output |
| Mechanical Limit MAX. TRANSVERSE LOAD | 200 | % of Rated Output |
| Mechanical Limit MAX. DYNAMIC LOAD | 50 | % of Rated Output |
| Displacement at Nominal Load | ~0.3 | mm |
| Temperature Range OPERATING | -20 to +70 | °C |
| Temperature Range STORAGE | -20 to +80 | °C |
| Cable Length | 5 | m |
| Sensor Construction Material | Stainless Steel | - |
| Environmental Protection | IP68 (100 HOURS AT 1M WATER COLUMN) | - |
| Weight | ~4.4 ~7 | KG |
Additional Information
If the dimensions or specification do not suit, PCM has an in-house design team that should be able to satisfy your requirements.

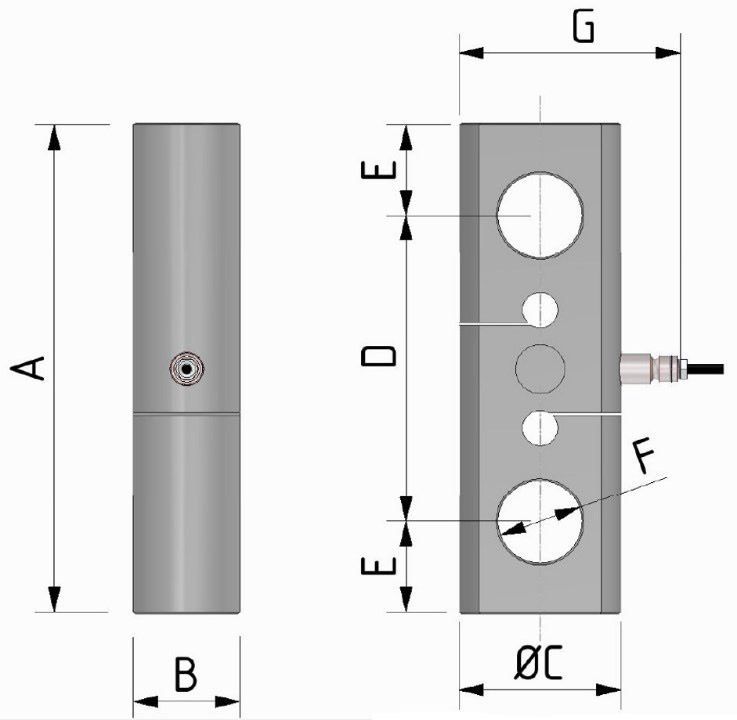

| CAPACITY (tf) | ORDERING CODE | A | B | ØC | D | E | F(1) | G |
|---|---|---|---|---|---|---|---|---|
| 5 | CT205TC25 | 200 | 45 | 76 | 130 | 35 | 33 | 103 |
| 7.5 | CT207T5C25 | 200 | 45 | 76 | 130 | 35 | 33 | 103 |
| 10 | CT2010TC25 | 200 | 45 | 76 | 130 | 35 | 33 | 103 |
| 15 | CT2015TC25 | 250 | 54 | 82 | 156 | 47 | 42.5 | 109 |
| 20 | CT2020TC25 | 250 | 54 | 82 | 156 | 47 | 42.5 | 109 |
(1) Connection holes for standard shackles.

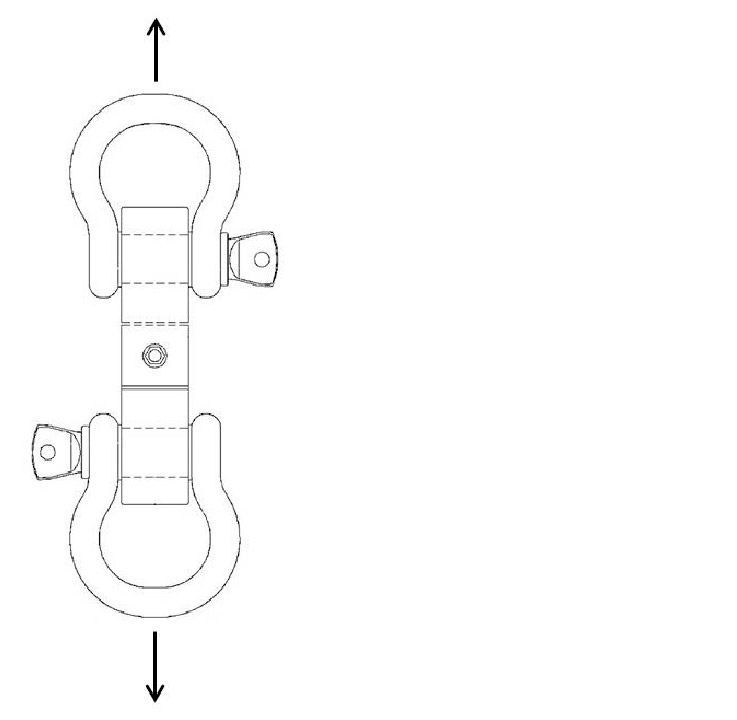

Accessories
| CAPACITY (tf) | DESCRIPTION(2) | ORDERING CODE |
|---|---|---|
| 5 | 15tf Rated Shackle | Crosby G209A-1017604 |
| 7.5 | 15tf Rated Shackle | Crosby G209A-1017604 |
| 10 | 15tf Rated Shackle | Crosby G209A-1017604 |
| 15 | 21tf Rated Shackle | G209A-1017648 |
| 20 | 21tf Rated Shackle | G209A-1017648 |
(2) Shackles are safety coefficient. The T20 load cell has a mechanical factor of safety of 3:1.
Connector Options
| ORDERING CODE | DESCRIPTION |
|---|---|
| CONNM12MF + CONNM12FV5 | Direct M12 output connector. Female 5 poles straight M12x1 connector complete with 3m PVC shielded cable. |
Wiring Details
| OUTPUT | CABLE (1) | OPTION: M12 (2) |
|---|---|---|
| EXCITATION + | Red | 1 |
| EXCITATION - | Black | 3 |
| OUTPUT + | White | 2 |
| OUTPUT - | Yellow | 4 |
| - | Shield (3) | 5 |
