D200
Tension Link Load Cell | High Capacity
CAPACITY
20TF-100TF
NON-LINEARITY
±0.1% RO
RATING
IP65

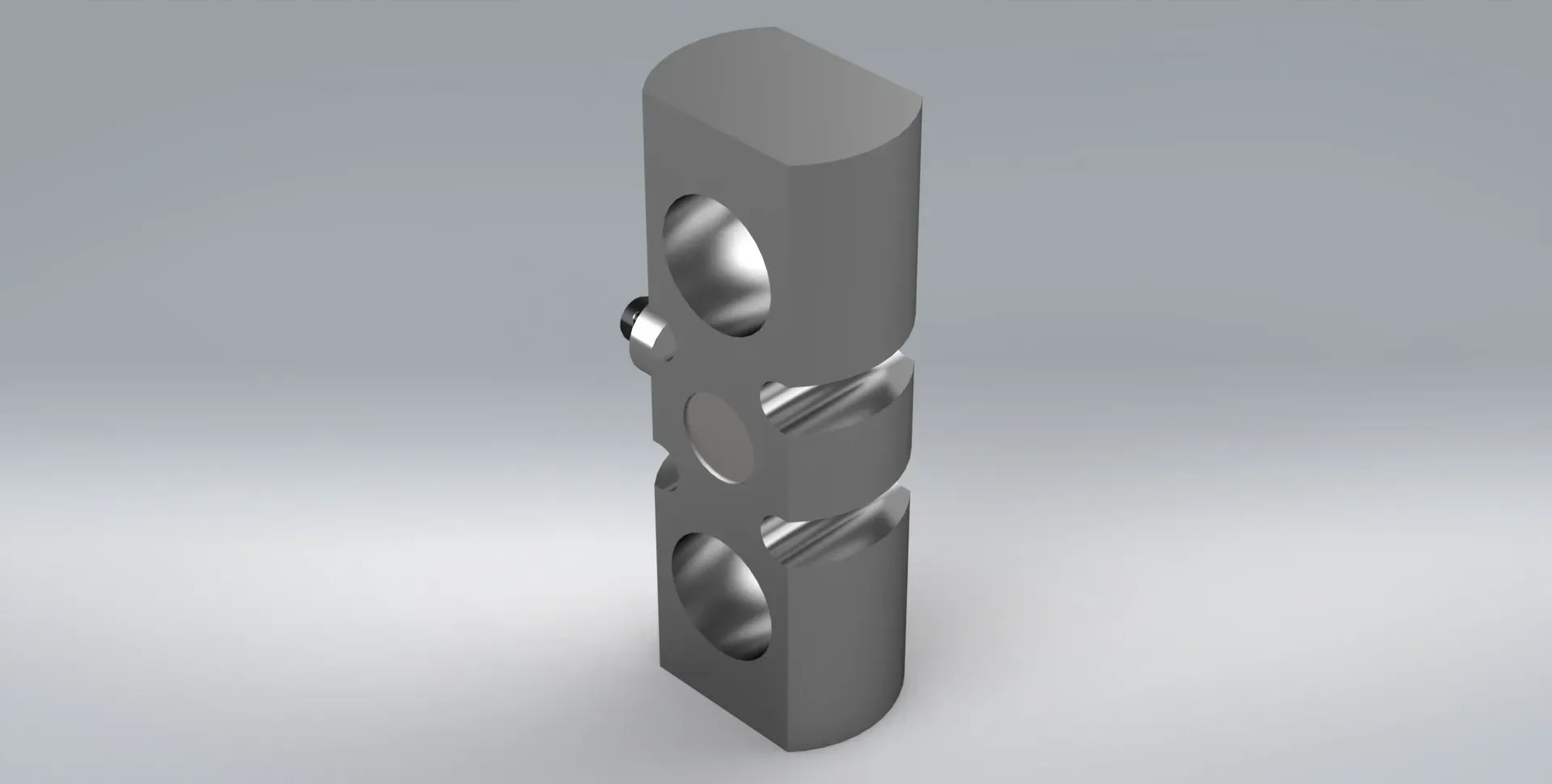

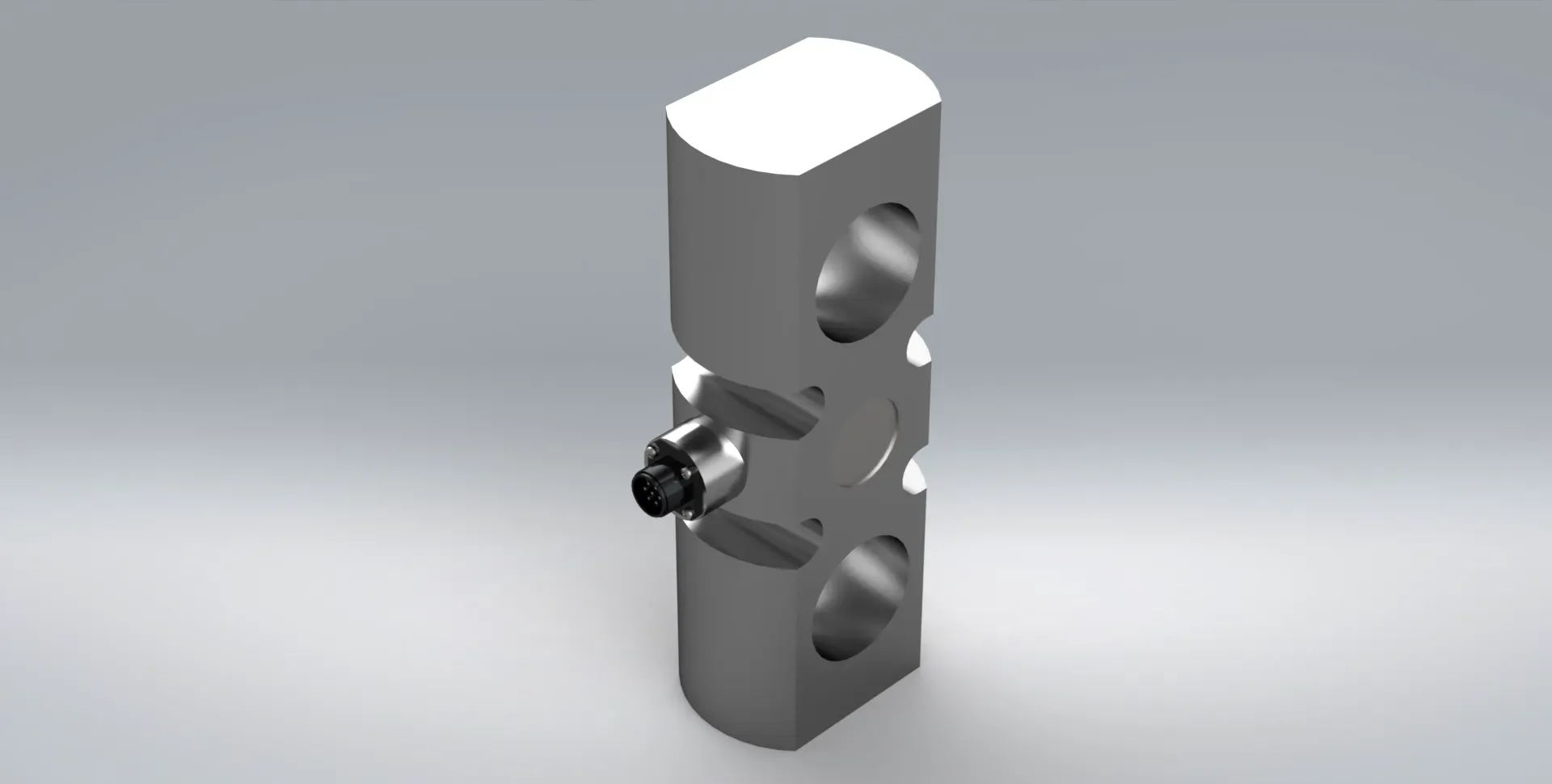

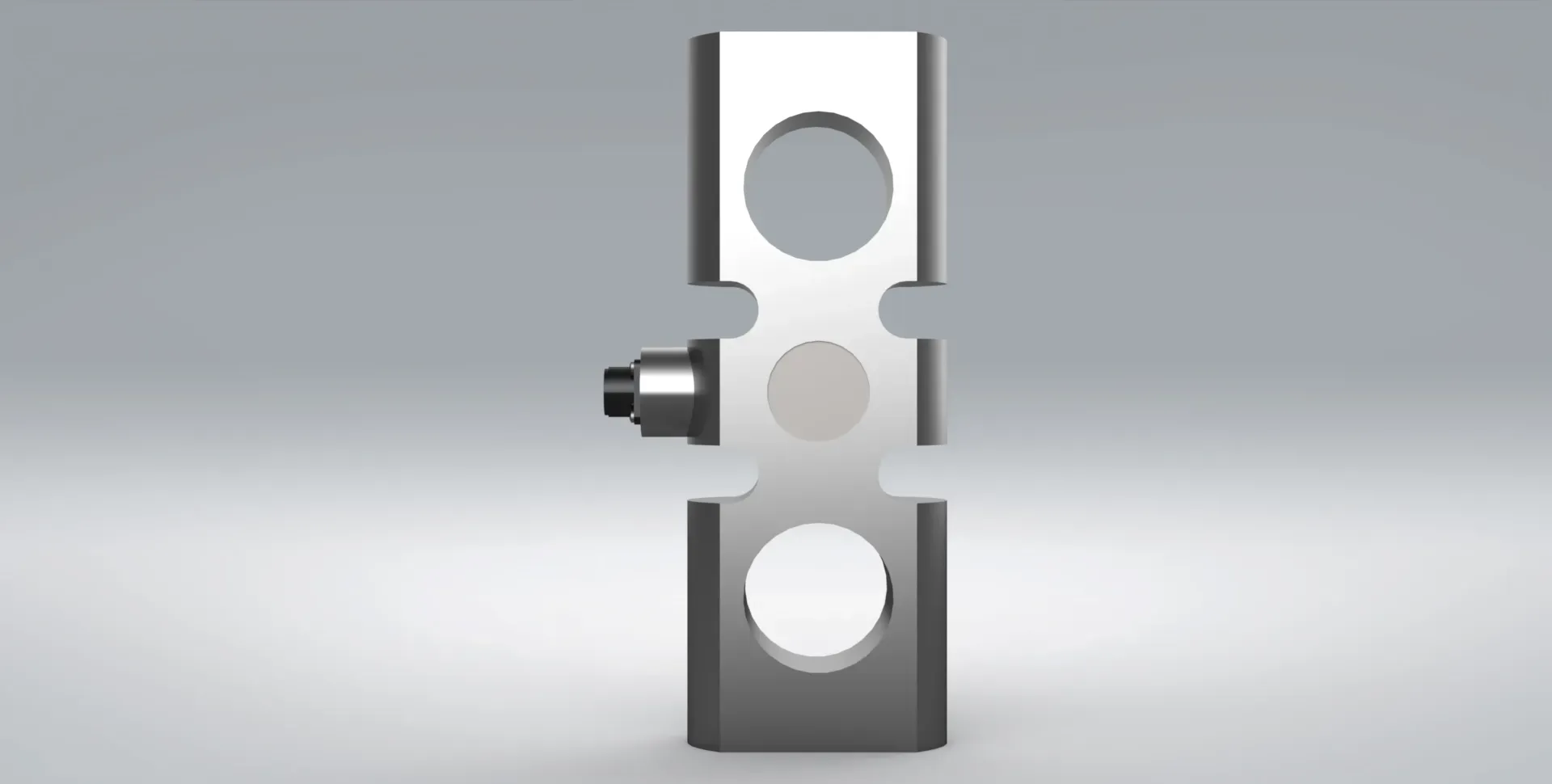

The D200 tension link load cell is a high-capacity device designed for tension measurement.
It has a laser welded stainless steel assembly to achieve IP65 sealing, and is robust, ideal for controlled lifting or test rig applications in any industry.
There are a wide variety of options available for this load cell range, including wireless output via radio telemetry.
To view the full specification, please download the product datasheet.
Similar Products
Typical Specification
| PARAMETER | VALUE | UNITS |
|---|---|---|
| Capacities Range | 20,30,50,75,100 | tf |
| Rated Output | 2 | mV/V |
| Sensitivity Tolerance | 0.1 | ±% of Rated Output |
| Linearity & Hysteresis | 0.1 | ±% of Rated Output |
| Temperature Effect (ON ZERO) | 0.028 | ±% of Rated Output/°C |
| Temperature Effect (ON OUTPUT) | 0.008 | ±% of Rated Output/°C |
| Input Resistance (NOMINAL LOAD) | 420±20 | Ω |
| Output Resistance (NOMINAL LOAD) | 350±2 | Ω |
| Insulation Resistance | >5 | GΩ |
| Zero Balance | ≤1 | ±% of Rated Output |
| Excitation (RECOMMENDED SUPPLY) | 10 | Volts AC or DC |
| Excitation (NOMINAL SUPPLY RANGE) | 1-15 | Volts AC or DC |
| Excitation (MAXIMUM SUPPLY) | 18 | Volts AC or DC |
| Mechanical Limit (SERVICE LOAD) | 120 | % of Rated Output |
| Mechanical Limit (SAFE OVERLOAD) | 150 | % of Rated Output |
| Mechanical Limit (Ultimate Overload) | 200 | % of Rated Output |
| Mechanical Limit (SAFE TRANSVERSE LOAD) | 50 | % of Rated Output |
| Temperature Range (OPERATING) | -10 to +70 | °C |
| Temperature Range (STORAGE) | -20 to +80 | °C |
| Environmental Protection | IP65(1) | - |
| Construction Material | Stainless Steel | - |
| Electrical Connection | MIL-C 5015 7-poles male and mating 5m cable | - |
Additional Information
| LOAD (tf) | ORDERING CODE | ØA | B | C | ØD | E | F |
|---|---|---|---|---|---|---|---|
| 20 | CD20020TC25 | 102 | 280 | 78 | 60 | 50 | ~140 |
| 30 | CD20030TC25 | 102 | 280 | 78 | 60 | 50 | ~140 |
| 50 | CD20050TC25 | 130 | 350 | 88 | 73 | 75 | ~171 |
| 75 | CD20075TC25 | 130 | 350 | 88 | 73 | 75 | ~171 |
| 100 | CD200100TC25 | 130 | 350 | 88 | 73 | 75 | ~171 |
Options & Accessories
| CAPACITY (tf) | DESCRIPTION(2) | ORDERING CODE |
|---|---|---|
| 20 | 35tf Rated Shackle | Crosby G2130-1019677 |
| 30 | 35tf Rated Shackle | Crosby G2130-1019677 |
| 50 | 55tf Rated Shackle | Crosby G2130-1019695 |
| 75 | 85tf Rated Shackle | Crosby G2140-1021174 |
| 100 | Custom fittings can be sourced/manufactured on request | - |
| DESCRIPTION | ORDERING CODE |
|---|---|
| Female 7 poles straight MIL7 connector complete with 5m PVC shielded cable. | IP67 (Direct Cable Output) |
| Double strain gauge (redundant) bridge. | CD210..[INSERT LOAD CELL ORDERING CODE]..C25 |
Wiring Details
| OUTPUT | MIL7M | MATING CABLE |
|---|---|---|
| EXCITATION+ | C | RED |
| SENSE+ | F | ORANGE |
| OUTPUT+ | A | WHITE |
| EXCITATION- | B | BLACK |
| SENSE- | G | BLUE |
| OUTPUT- | D | YELLOW |
| - | E | SHIELD |
