FT1

Shear Beam Load Cell | Hermetically Sealed

CAPACITY
350KG-7500KG

NON-LINEARITY
±0.024% RO

RATING
IP68

The FT1 is a high accuracy, low-profile shear beam load cell that is laser welded and manufactured from stainless steel, making it suitable for static or dynamic applications in hostile environments.



As standard, the FT1’s output is mV/V, but it can be supplied with a 4-20mA built-in amplifier, if required.


To view the full specification, please download the product datasheet.

Technical Information Download STP Download Data Sheet Get a Quote
FT1 low-profile shear beam load cell manufactured from stainless steel, suitable for static or dynamic applications

Nature's Symphony

Breathtaking colors of our planet
Button

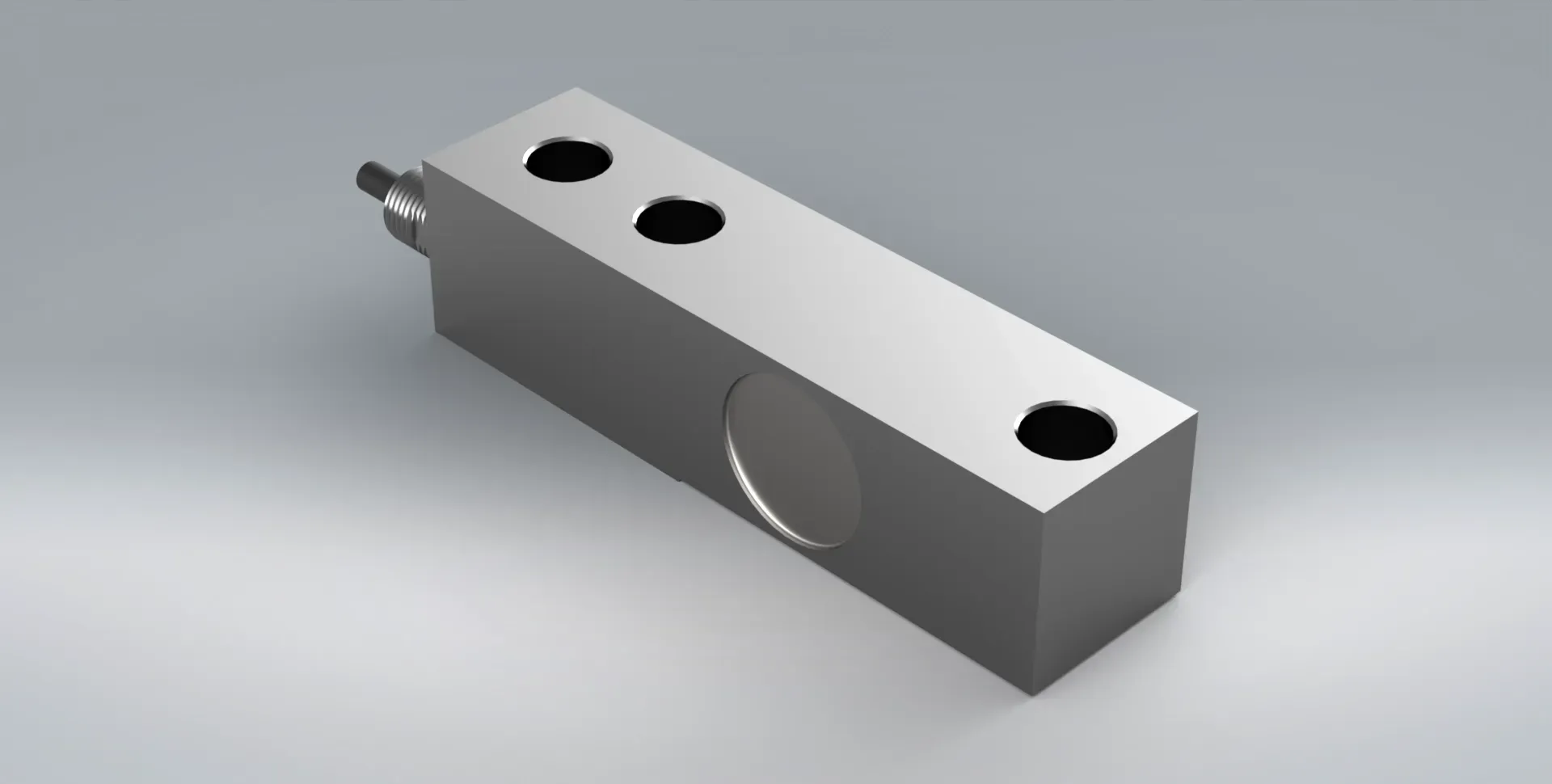

The FT1 high accuracy load cell from Procter & Chester Measurements on a grey background

Faces of Humanity

Portraits of people from around the globe
Button

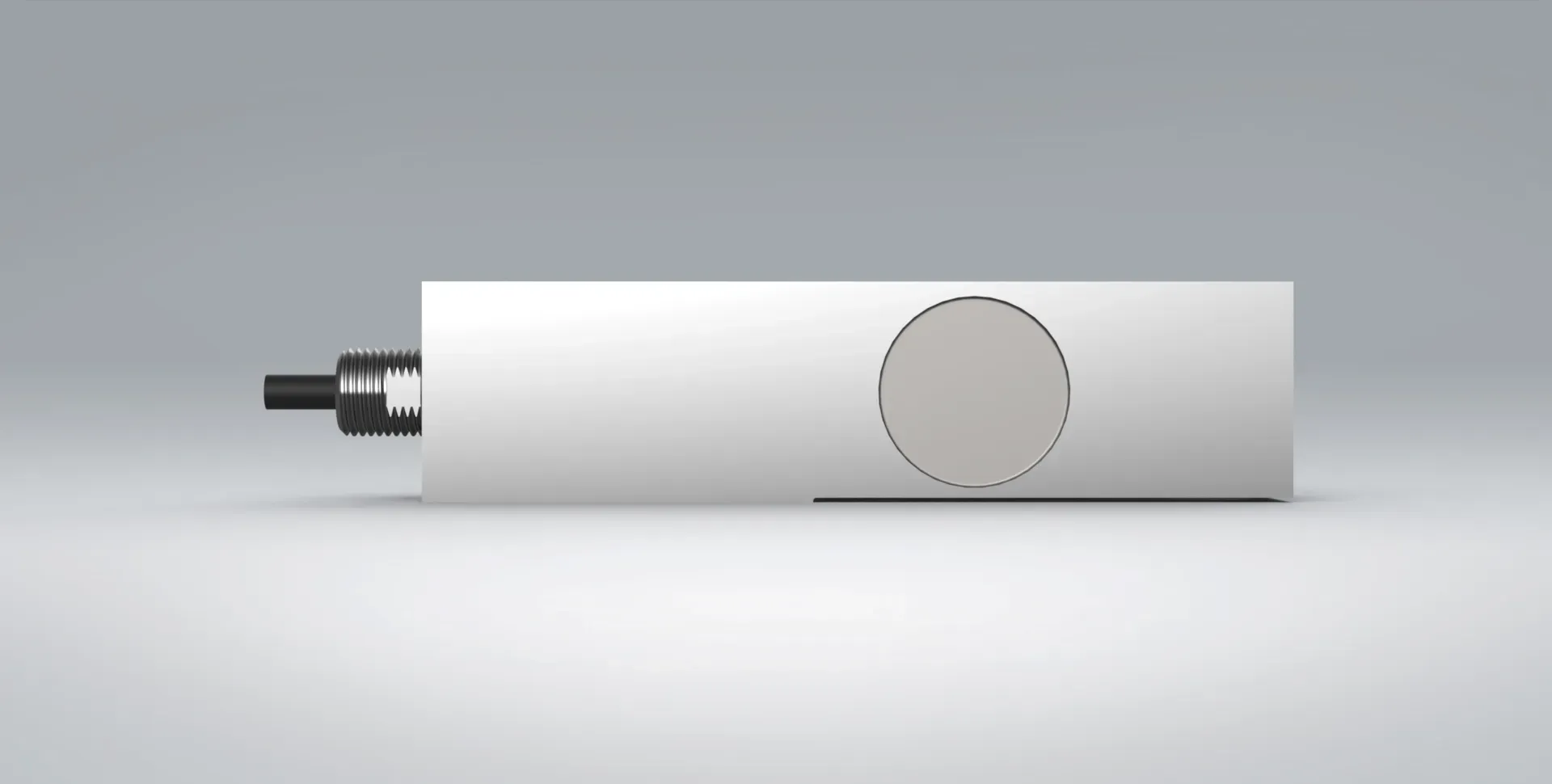

FT1 stainless steel, hermetically sealed shear beam load cell from PCM

Sands of Time

Stark beauty of desolate dunes
Button

Similar Products

Red 3D model of the TCA low profile bi-directional S-Type Load Cell on a light grey background.

TCA

May 13, 2024
CAPACITY: 1KG – 50KG
NON-LINEARITY: ±0.03% FS
RATING: IP20
A 3d model of a TS stainless steel S-Type load cell, used for compression or tension measurement in static or dynamic testing

TS

By Connor • May 12, 2024
CAPACITY: 10KG-10,000KG
NON-LINEARITY: N/A
RATING: IP65/IP68

available
A close up of the stainless steel F1 cantilever load cell on a grey background, hermetically sealed against moisture.

F1

May 9, 2024
CAPACITY: 2.5KG – 200KG
NON-LINEARITY: ±0.026% FS
RATING: IP67

Typical Specification

PARAMETER VALUE UNITS
Capacities Range 350, 500, 1000, 2000, 3000, 5000, 7500 KG
Rated Output 2 mV/V
Nominal Sensitivity 0.1% ±% of Rated Output
Combined Error 0.024 ±% of Rated Output
Non-Repeatability 0.012 ±% of Rated Output
Zero Return (AFTER 30 MINUTES) 0.028 ±% of Rated Output
Creep (NOMINAL LOAD OVER 30 MINUTES) 0.026 ±% of Rated Output
Creep (NOMINAL LOAD OVER 20 AND 30 MINUTES) 0.012 ±% of Rated Output
Temperature Effect (ON ZERO) 0.026 ±% of Rated Output/°C
Temperature Effect (ON OUTPUT) 0.020 ±% of Rated Output/°C
Input Resistance 420±20 Ω
Output Resistance 350±2 Ω
Insulation Resistance >5 GΩ
Zero Balance 1 ±% of Rated Output
Excitation (RECOMMENDED SUPPLY) 10 Volts AC or DC
Excitation (NOMINAL RANGE) 1-15 Volts AC or DC
Excitation (MAXIMUM) 18 Volts AC or DC
Temperature Range (NOMINAL) -10 to +40 °C
Temperature Range (COMPENSATED) -20 to +80 °C
Temperature Range (OPERATING) -20 to +70 °C
Mechanical Limit (SERVICE LOAD) 120 % of Rated Output
Mechanical Limit (SAFE OVERLOAD) 150 % of Rated Output
Mechanical Limit (ULTIMATE OVERLOAD) >300 % of Rated Output
Mechanical Limit (MAXIMUM TRANSVERSE LOAD) 50 % of Rated Output
Mechanical Limit (MAXIMUM DYNAMIC LOAD) 50 % of Rated Output
Displacement at Nominal Load ~0.2 to ~0.5 mm
Cable Length 5 m
Sensor Construction Material Stainless Steel -
Environmental Protection IP68 -
Weight ~1.1 to ~2.6 ~KG

Additional Information

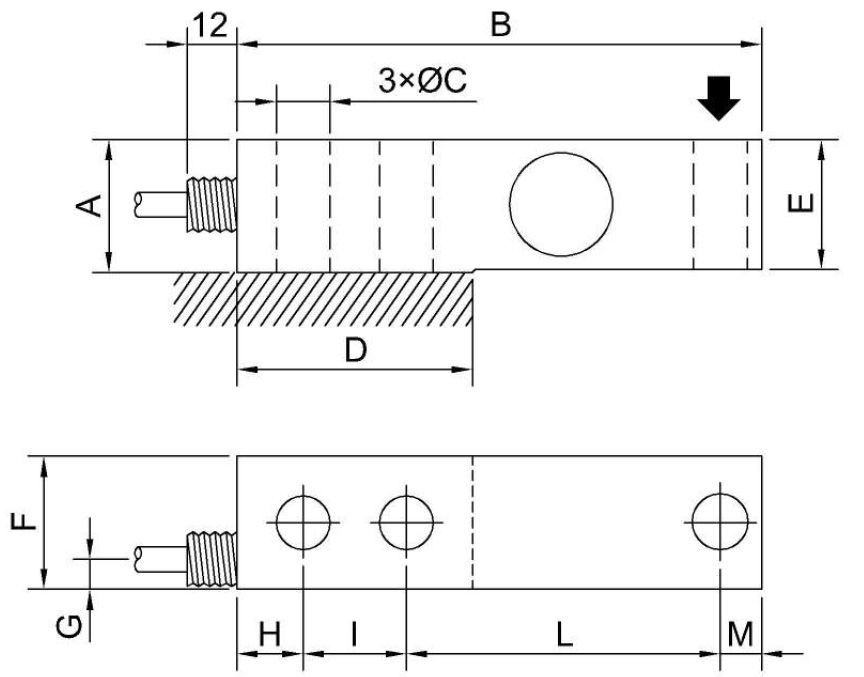

Outline dimenions of the FT1 shear beam load cell.

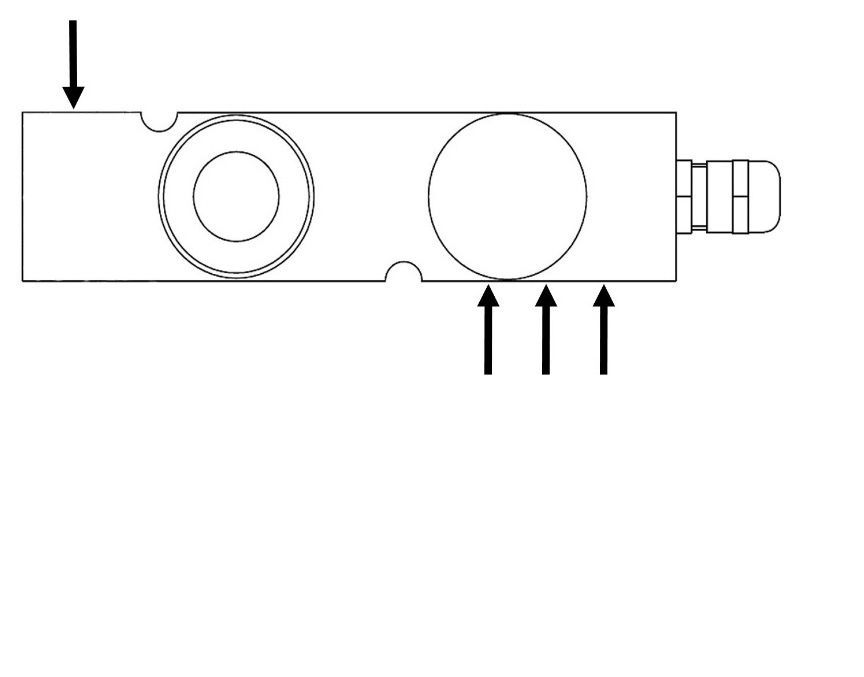

Loading instructions for the FT1 shear beam load cell.


CAPACITY (KG) A B ØC D E F G H I L M
350, 500, 1000, 2000 32.2 127 13 57 31.5 32.6 7 16 25 76 10
3000, 5000, 7500 45 180 21 85 45 Ø57.2 12 18 38.1 105.9 18

If the dimensions or specification do not suit, PCM has an in-house design team that should be able to satisfy your requirements.

Fixing Screw Specification

CAPACITY (KG) DIAMETER RESISTANCE CLASS TIGHTENING TORQUE (Nm)
350, 500, 1000, 2000 M12 12.9 150
3000, 5000, 7500 M20 12.9 160

Ordering Codes

CAPACITY (KG) ORDERING CODE
350 CFT1350KC25
500 CFT1500KC25
1000 CFT11TC25
2000 CFT12TC25
3000 CFT13TC25
5000 CFT15TC25
7500 CFT17T5C25

Wiring Details

Wiring details for the FT1 shear beam load cell.
OUTPUT CABLE(1)
EXCITATION+ RED
EXCITATION- BLACK
OUTPUT+ WHITE
OUTPUT- YELLOW
- SHIELD
