F1
Single-Ended Bending Beam Load Cell | Hermetically Sealed
CAPACITY
2.5KG – 200KG
NON-LINEARITY
±0.026% RO
RATING
IP67

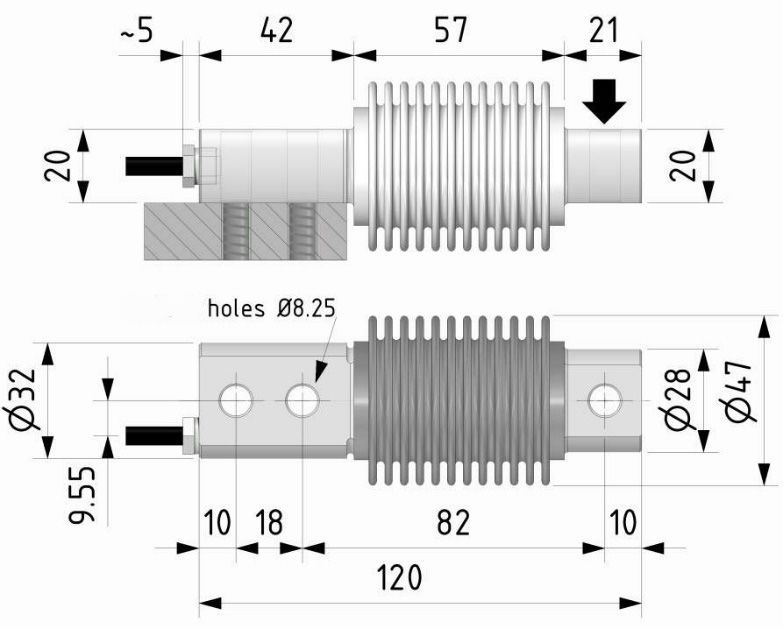

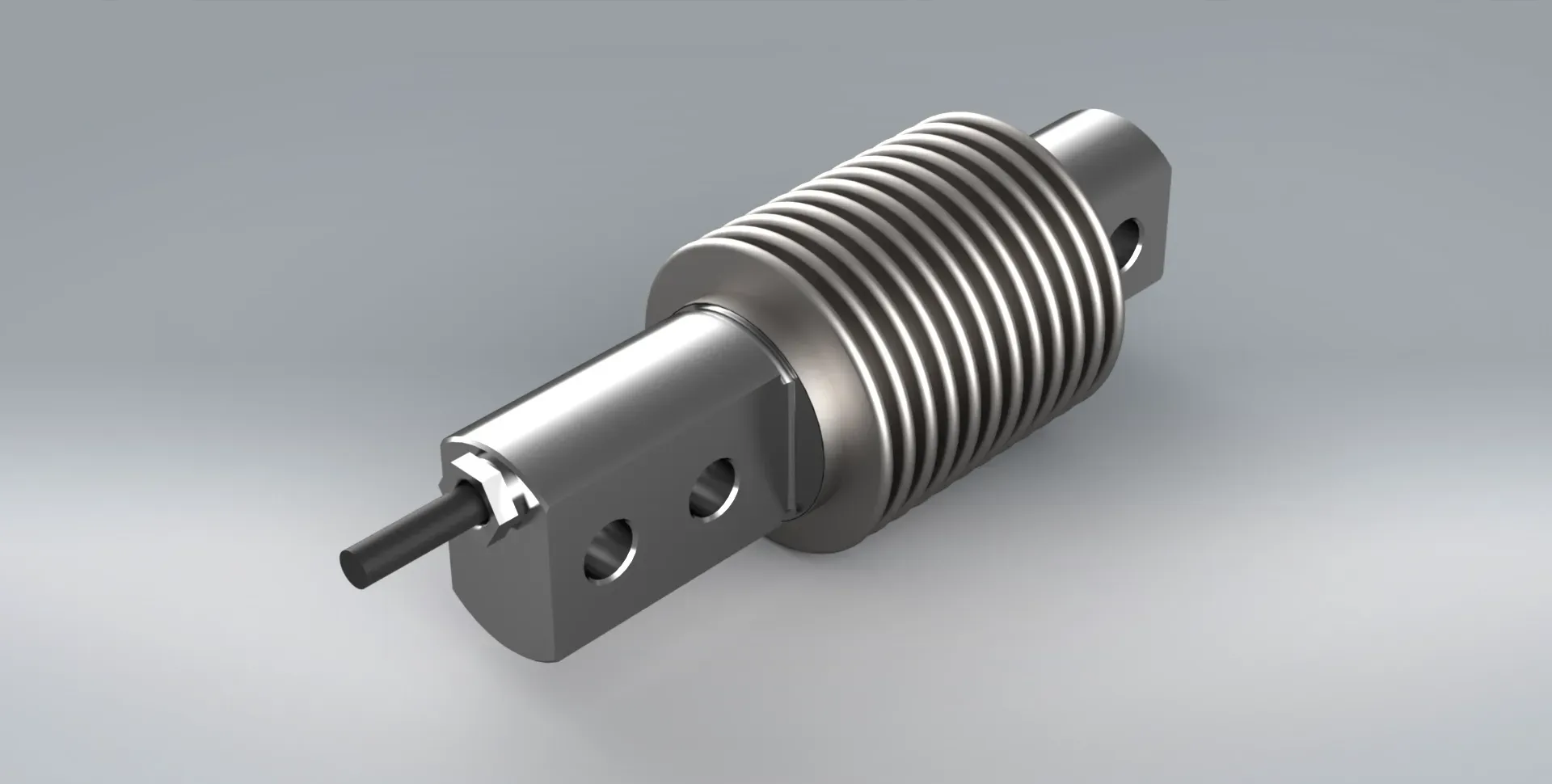

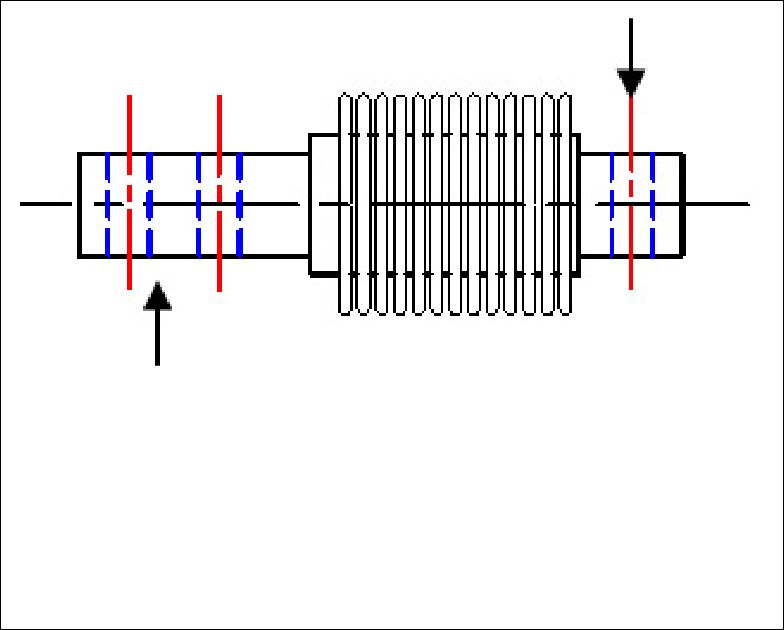

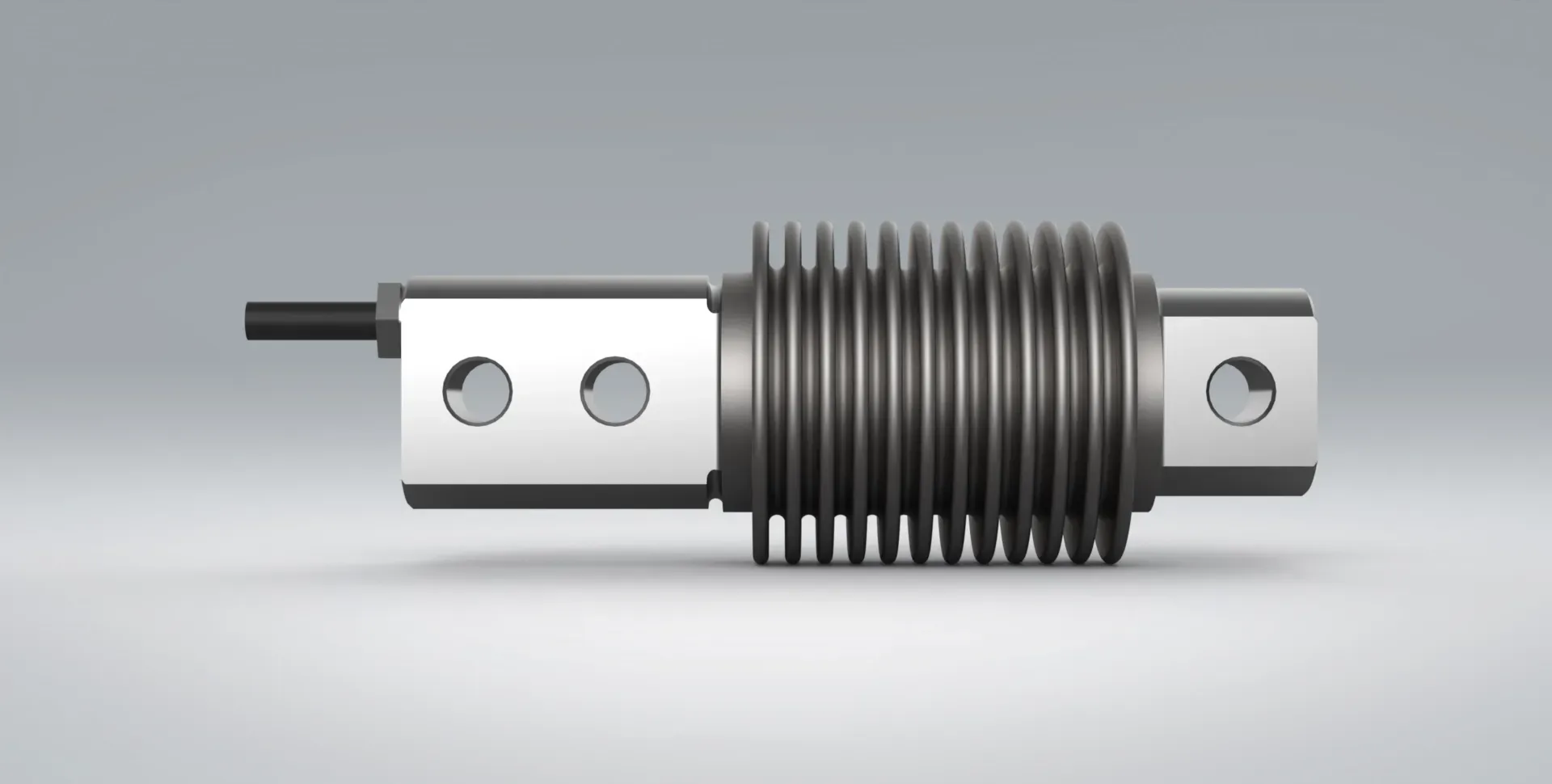

The F1 is a welded cantilever load cell manufactured from stainless steel. It is hermetically sealed against moisture and features a polyurethane shielded cable, making it ideal for applications with harsh environments.
Otherwise known as a single-ended bending beam load cell, the F1 can be used in a wide range of applications where high accuracy and good sealing are critical.
The mounting kit is a popular option as it provides a simple solution for easy installation in tank/silo weighing applications.
To view the full specification, please download the product datasheet.
If this load cell doesn’t quite suit your application, get in touch to discuss your requirement in more detail with one of our experienced team members.
Similar Products
Typical Specification
| PARAMETER | VALUE | UNITS |
|---|---|---|
| Capacities Range | 2.5, 5, 10, 25, 50, 100, 200 | KG |
| Rated Output | 2 | mV/V |
| Sensitivity Tolerance | 0.1 | ±% of Rated Output |
| Linearity & Hysteresis | 0.026 | ±% of Rated Output |
| Repeatability | 0.012 | ±% of Rated Output |
| Zero Return (AFTER 30 MINUTES) | 0.025 | ±% of Rated Output |
| Creep at Nominal Load (OVER 30 MINUTES) | 0.026 | ±% of Rated Output |
| Creep at Nominal Load (OVER 20 & 30 MINUTES) | 0.010 | ±% of Rated Output |
| Input Resistance | 420±20 | Ω |
| Output Resistance | 350±2 | Ω |
| Insulation Resistance | >5 | GΩ |
| Zero Balance | ≤1 | ±% of Rated Output |
| Temperature Effect (ON ZERO) | 0.025 | ±% of Rated Output/°C |
| Temperature Effect (ON OUTPUT) | 0.008 | ±% of Rated Output/°C |
| Temperature Range (STORAGE) | -20 to +80 | °C |
| Temperature Range (OPERATING) | -20 to +70 | °C |
| Mechanical Limit (SAFE OVERLOAD) | 150 | % of Rated Output |
| Mechanical Limit (ULTIMATE OVERLOAD) | >300 | % of Rated Output |
| Mechanical Limit (SAFE TRANSVERSE LOAD) | 200 | % of Rated Output |
| Mechanical Limit (SAFE DYNAMIC LOAD) | 75 | % of Rated Output |
| Displacement at Nominal Load | ~0.4 | mm |
| Excitation (RECOMMENDED SUPPLY) | 10 | Volts AC or DC |
| Excitation (NOMINAL RANGE) | 1-15 | Volts AC or DC |
| Excitation (MAXIMUM) | 18 | Volts AC or DC |
| Weight | ~0.62 | KG |
| Cable | 5 | m |
| Sensor Construction Material | Stainless Steel | - |
| Environmental Protection | IP67 | - |
| Fixing Screw (DIAMETER) | M8 | - |
| Fixing Screw (RESISTANCE CLASS) | 12.9 | - |
| Fixing Screw (TIGHTENING TORQUE) | 20 | Nm |
Additional Information
| CAPACITY (KG) | ORDERING CODE |
|---|---|
| 2.5 | CF12K5C25 |
| 5 | CF15KC25 |
| 10 | CF110KC25 |
| 25 | CF125KC25 |
| 50 | CF150KC25 |
| 100 | CF1100KC25 |
| 200 | CF1200KC25 |
Wiring Details
(1) PVC 105°C shielded cable, Ø 5.2mm with 4 tinned Ø0.35mm2 conductors. (2) Connected to the body of the load cell.
| OUTPUT | CABLE(1) |
|---|---|
| EXCITATION+ | RED |
| EXCITATION- | BLACK |
| OUTPUT+ | WHITE |
| OUTPUT- | YELLOW |
| - | SHIELD(2) |
