DIA

Low-Profile Diaphragm Load Cell | Pancake Style With Through-Hole

CAPACITY
500KG - 1000KG

NON-LINEARITY
±1% RO

RATING
IP65

The DIA is a compression load cell that utilises the diaphragm design and is ideal for static measurement.


With a height of just 22mm, its low-profile make this load cell ideal for restricted height applications. As standard, it is manufactured from aluminium (500KG) or stainless steel (1000KG) and sealed to IP65.


The load cell is also customisable and maybe possible to adapt the design to suit your application, if required.



To view the full specification, please download the product datasheet.


If this load cell doesn’t quite suit your application, contact us to discuss your requirement in more detail with one of our experienced team members.

Technical Information Download STP Download Data Sheet Get a Quote

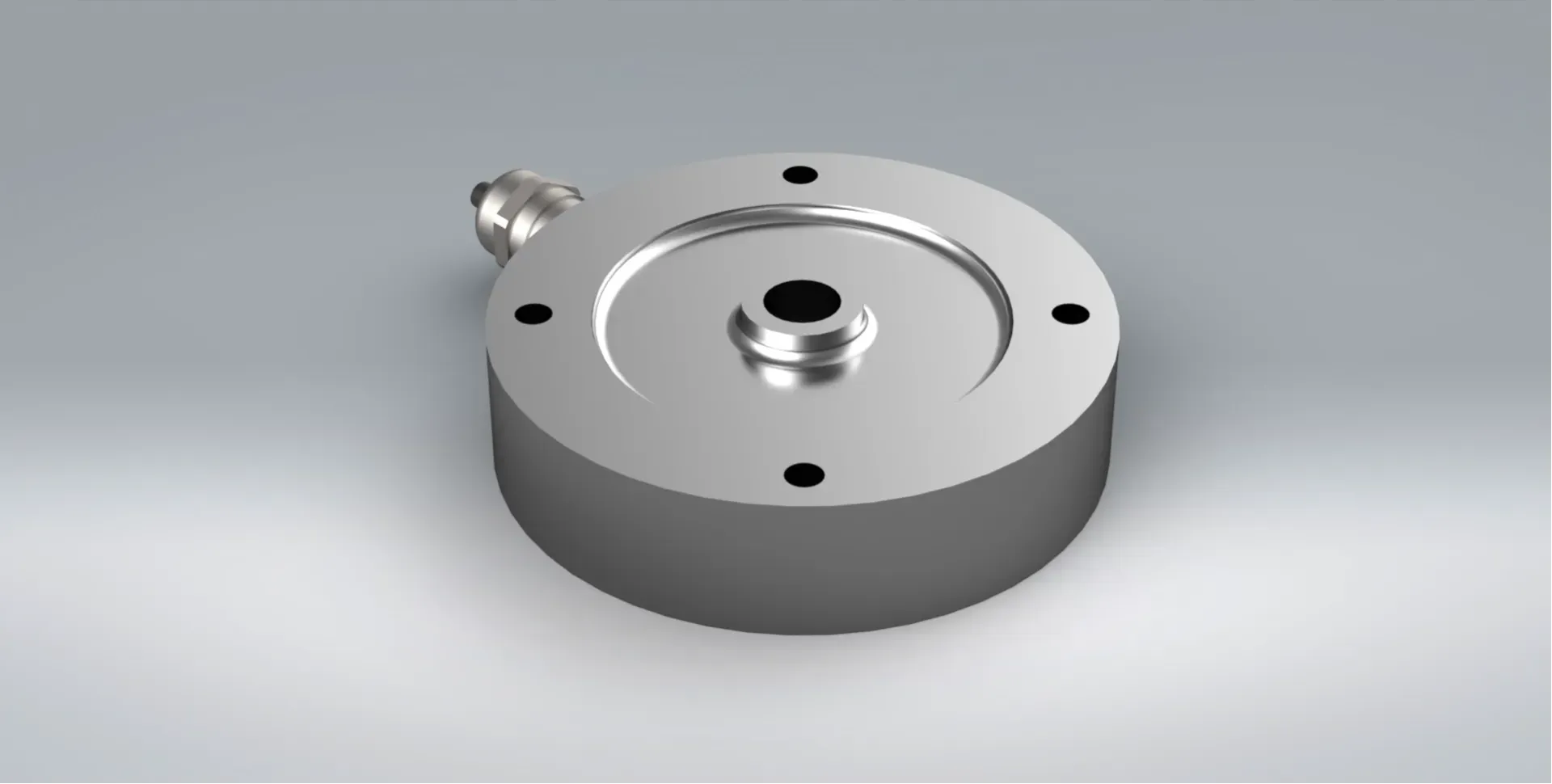

DIA low-profile pancake load cell with through-hole from PCM for static measurement.

Nature's Symphony

Breathtaking colors of our planet
Button

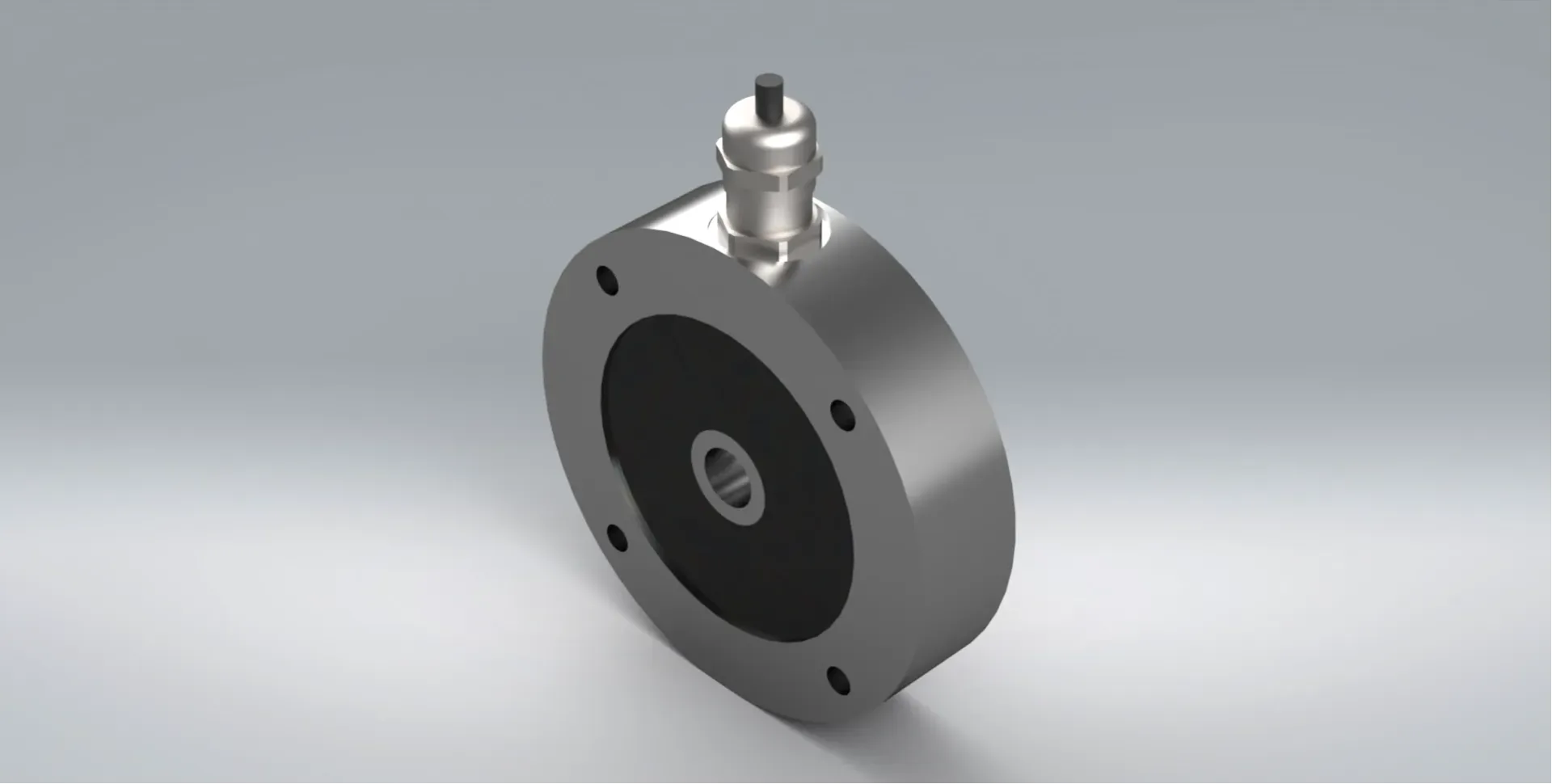

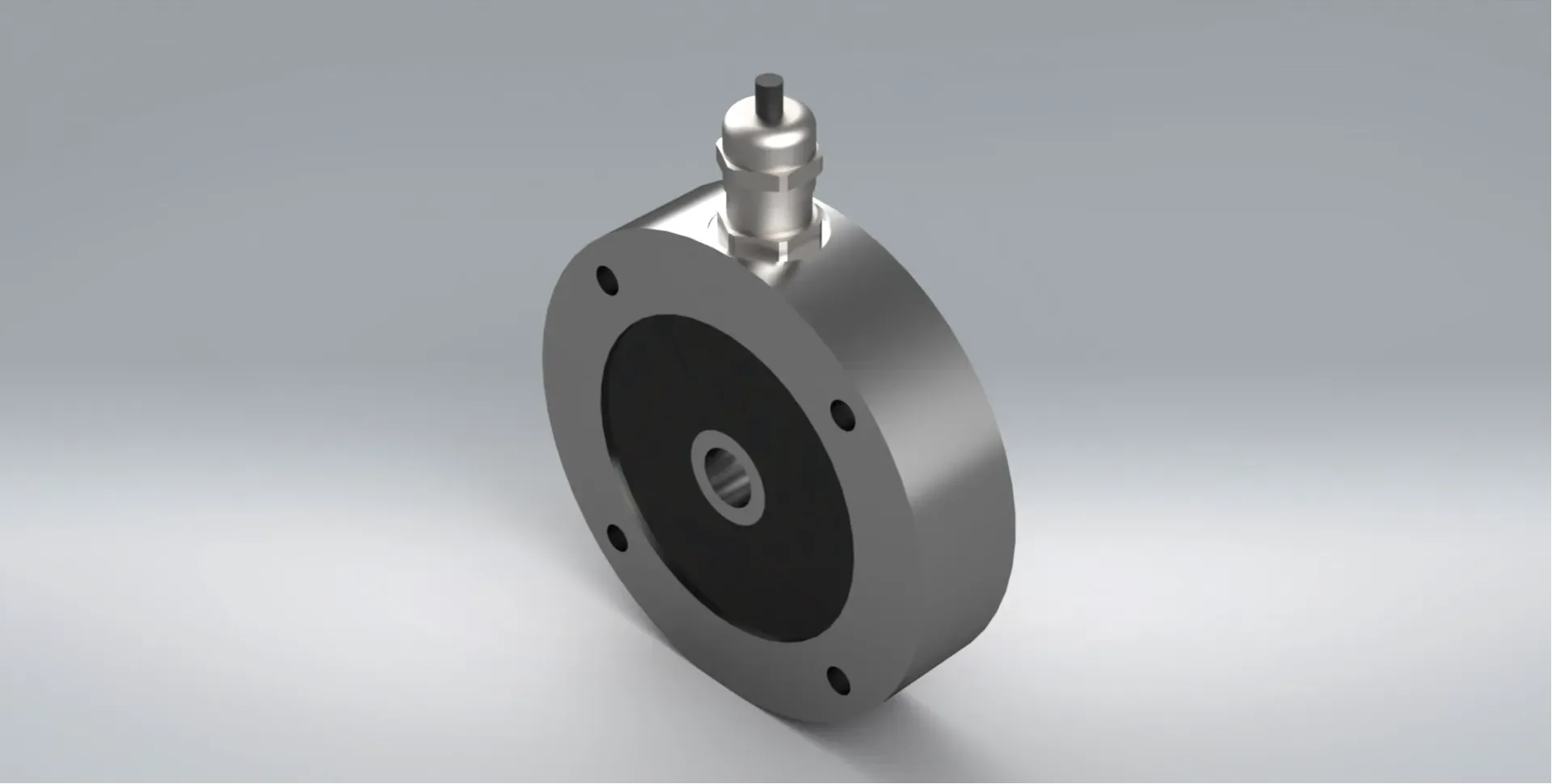

Side view of the DIA diaphragm pancake load cell on a grey background.

Faces of Humanity

Portraits of people from around the globe
Button

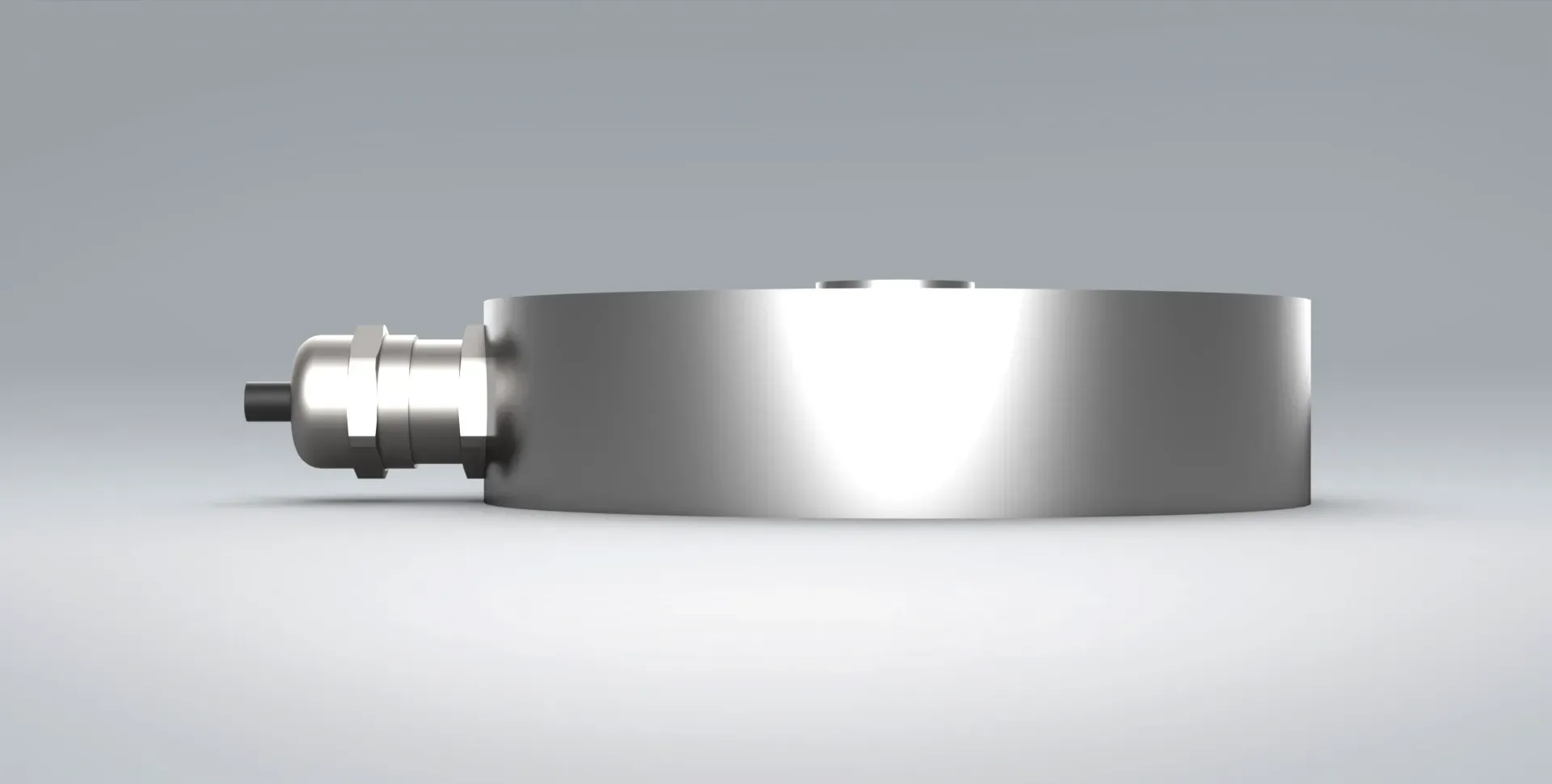

Bottom of the DIA pancake load cell from Procter and Chester Measurements

Sands of Time

Stark beauty of desolate dunes
Button

Similar Products

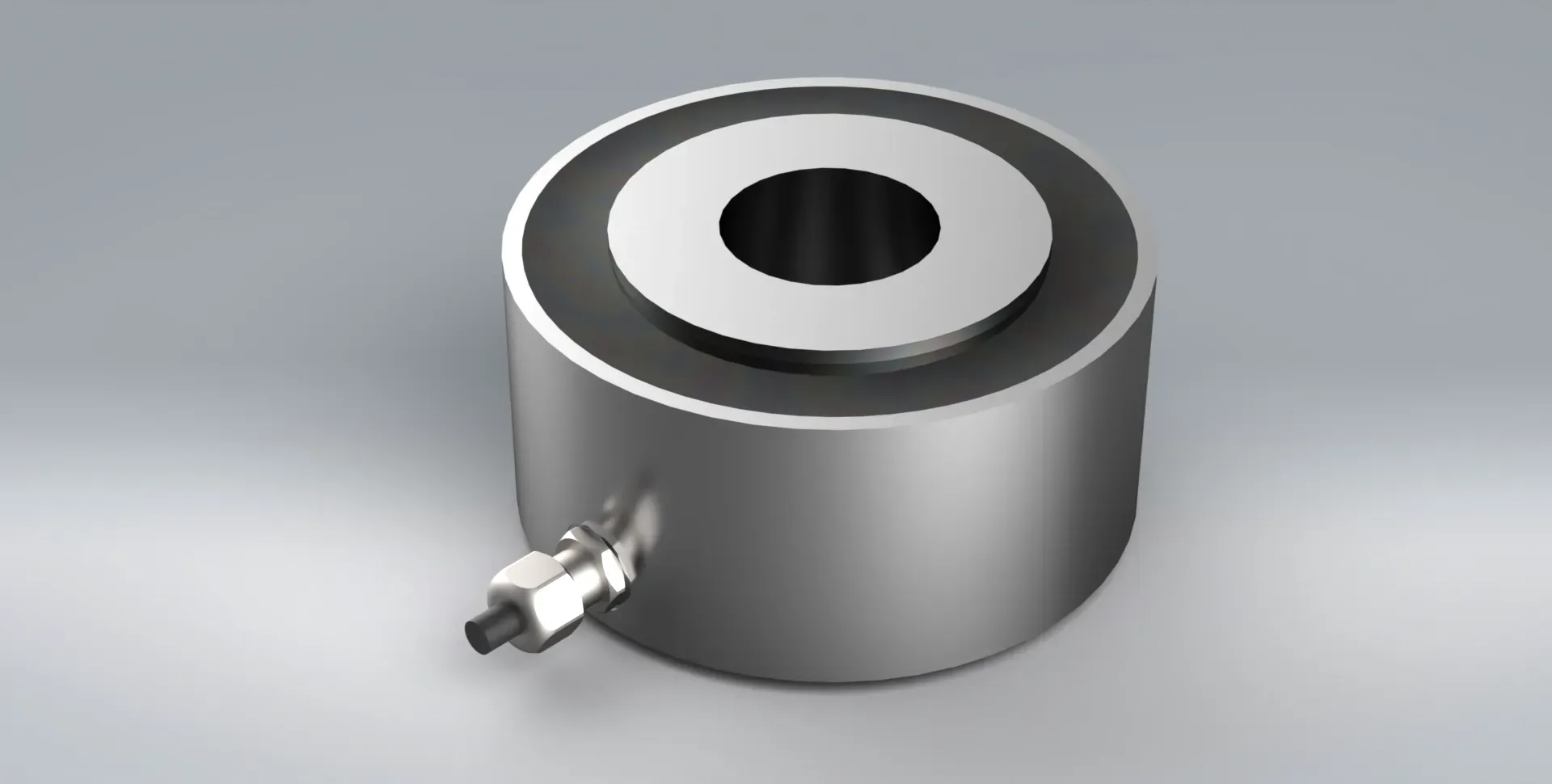

A metallic FW compression load cell with a compact bobbin style design manufactured from stainless steel.

FW

May 18, 2024
CAPACITY: 4TF - 80TF
NON-LINEARITY:±1% FS
RATING: IP67

available

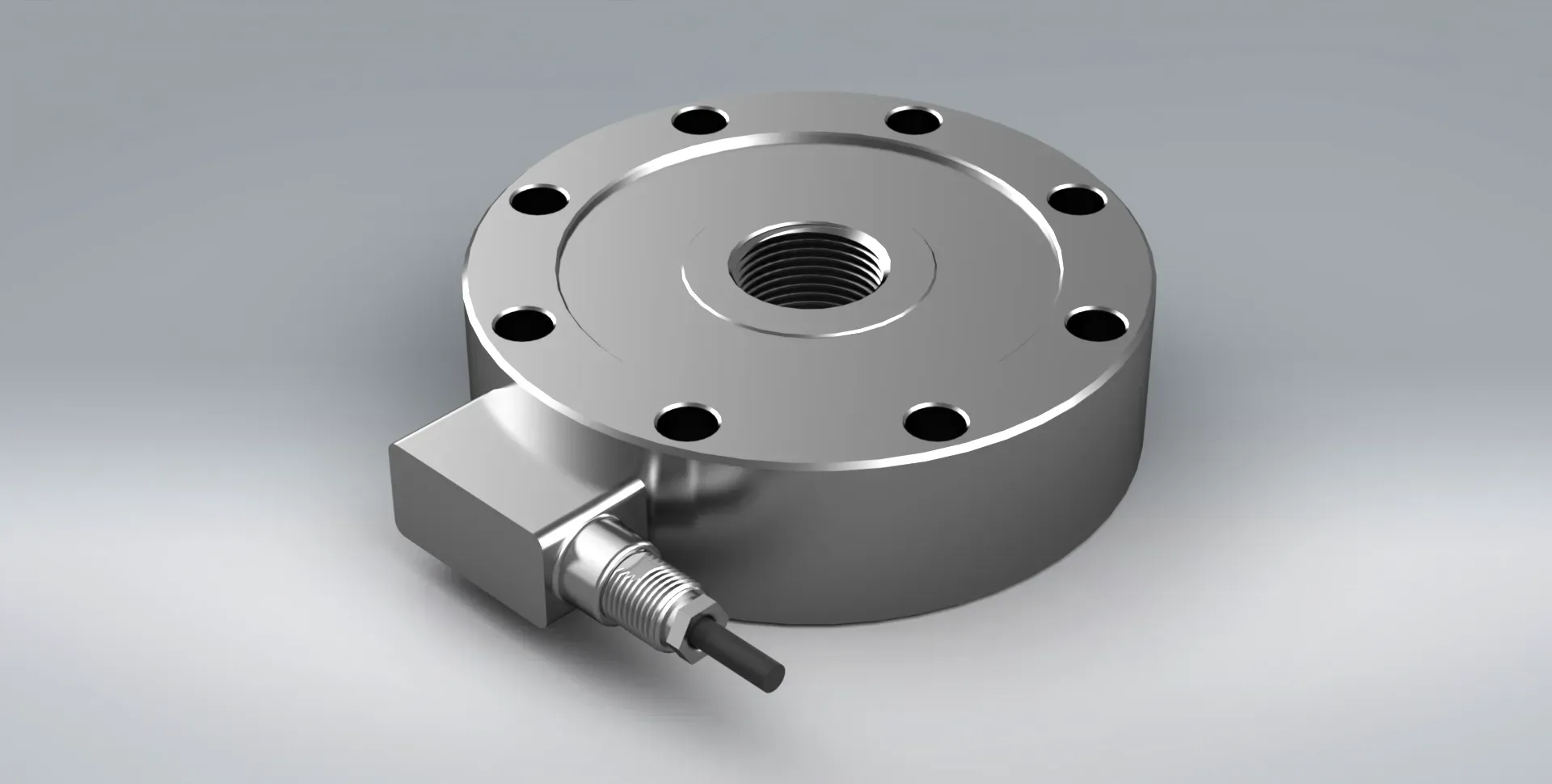

A close up design of the TC4 bi-directional pancake load cell for tension and compression measurement from stainless steel.

TC4

May 11, 2024
CAPACITY: 0.5TF – 500TF
NON-LINEARITY: ±0.05% FS
RATING: IP67

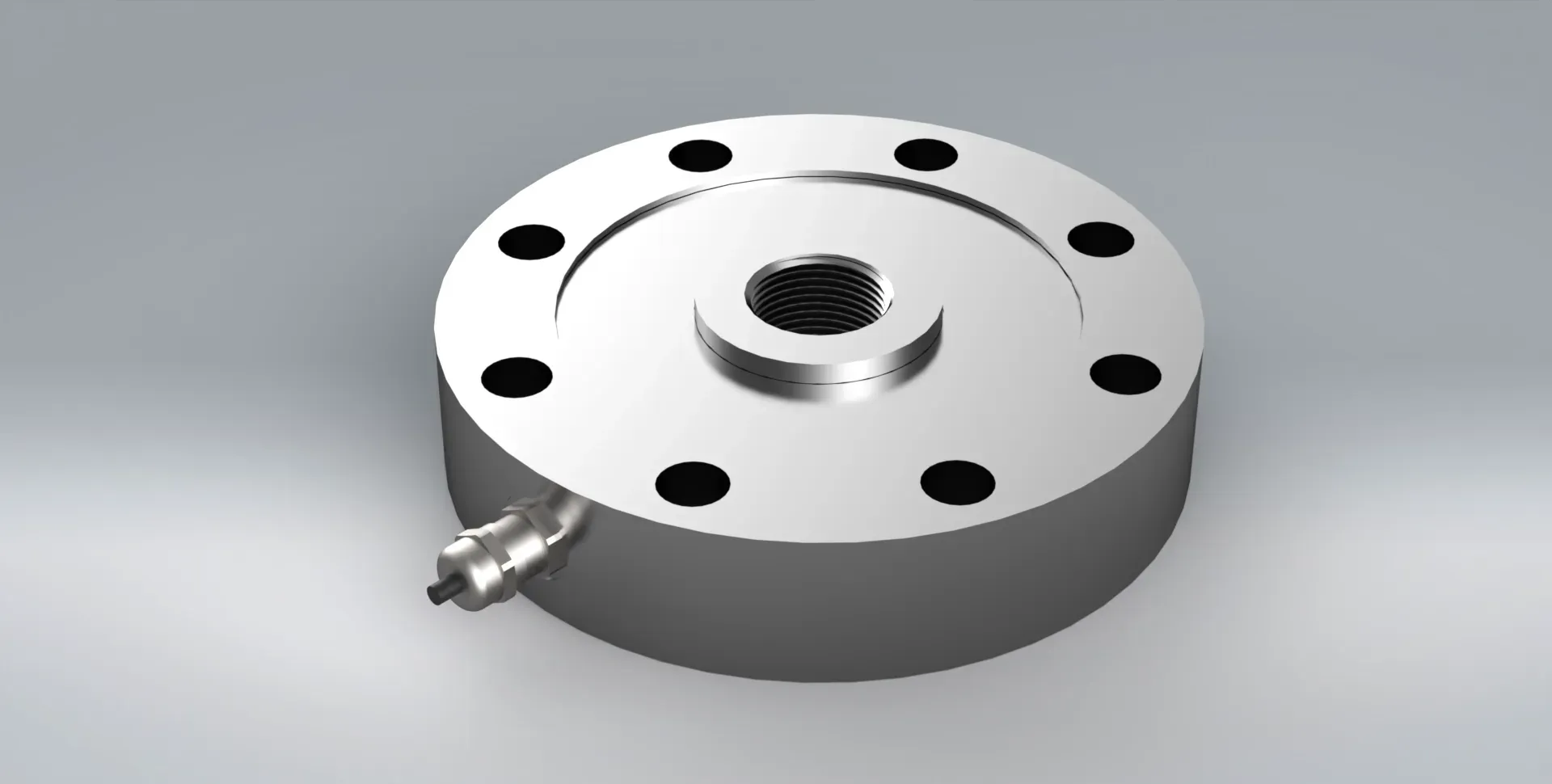

3D model of the PLC bi-directional pancake load cell on a plain grey background.

PLC

May 10, 2024
CAPACITY: 0.5kN – 1000kN
NON-LINEARITY: ±0.15% FS
RATING: IP65

Typical Specification

PARAMETER VALUE UNITS
Capacities Range 500, 1000 KG
Nominal Sensitivity 2 mV/V
Linearity & Non-Repeatability 0.5-1.0 ±% of Rated Output
Zero Balance 1.0 ±% of Rated Output
Temperature Range (OPERATING) -30 to +80 °C
Temperature Range (COMPENSATED) -10 to +70 °C
Temperature Effect (ON OUTPUT) 0.1 ±% of Applied Load/°C
Temperature Effect (ON ZERO) 0.02 ±% of Applied Load/°C
Input Impedance 400 Ω
Output Impedance 350 Ω
Insulation Resistance >2 GΩ
Excitation (RECOMMENDED) 10 Volts AC or DC
Excitation (MAXIMUM) 15 Volts AC or DC
Mechanical Limit (SAFE OVERLOAD) 150 % of Rated Output
Mechanical Limit (ULTIMATE OVERLOAD) 300 % of Rated Output
Cable Length 5 m
Sensor Construction Material Aluminium or Stainless Steel -
Environmental Protection IP65 -
Weight 0.5 ~KG

Additional Information

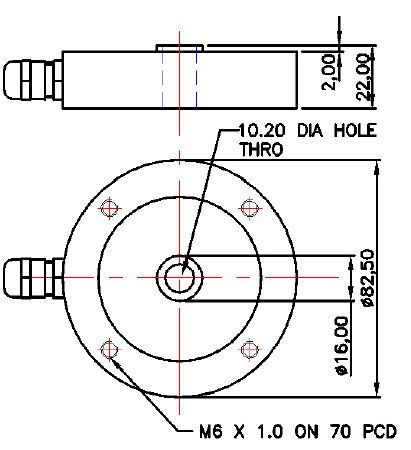

Outline dimensions for the DIA pancake load cell from PCM.


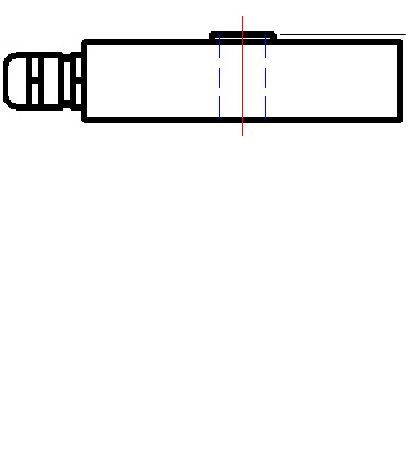

Loading instructions for a DIA pancake style load cell.


If the dimensions or specification do not suit, PCM has an in-house design team that should be able to satisfy your requirements.

Wiring Details

OUTPUT CABLE (STANDARD)
EXCITATION+ RED
EXCITATION- BLUE
OUTPUT+ YELLOW
OUTPUT- GREEN
- SHIELD
