FW

Bolt Force Washer Load Cell | Donut Style With Through-Hole

CAPACITY
4TF - 80TF

NON-LINEARITY
±1% RO

RATING
IP67

The FW compression load cell has a compact bobbin style design. It is manufactured from stainless steel and has an 8 strain gauge Wheatstone bridge as standard.

This load cell is ideal for bolt torque monitoring projects with bore sizes and capacities available to suit most applications. Optional hardened or spherical washers are also available to help improve performance in-situ.

The capacity, height and bore size of this load cell is customisable - we can adapt its design to suit your application if required.


To view the full specification, please download the product datasheet.

If this load cell doesn’t quite suit your application, get in touch to discuss your requirement in more detail with one of our experienced team members.

Technical Information Download STP Download Data Sheet Get a Quote

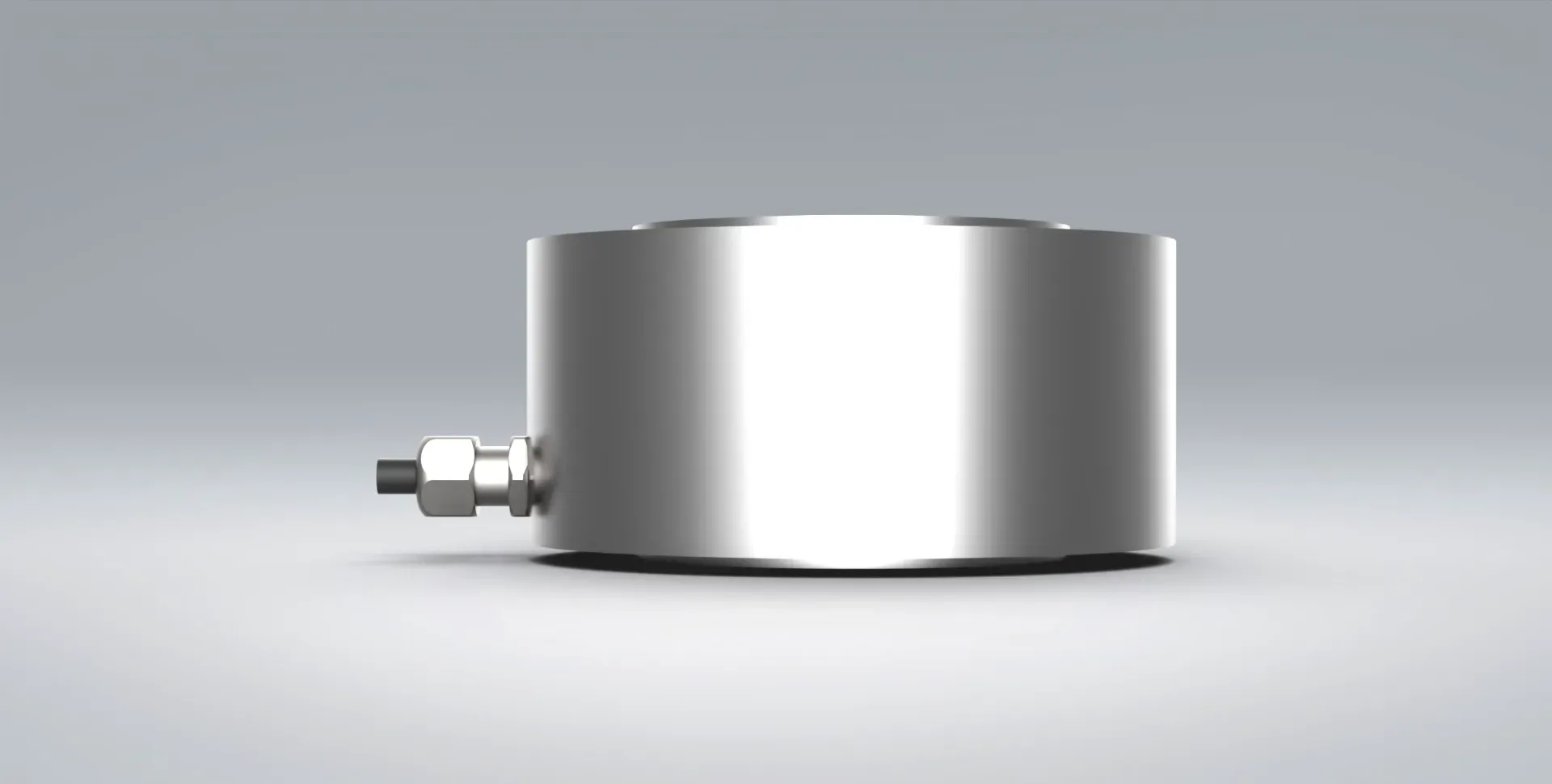

FW donut style load cell with through-hole manufactured from stainless steel with wheatstone bridge.

Nature's Symphony

Breathtaking colors of our planet
Button
FW force washer compression load cell with donut design ideal for bolt torque monitoring.

Faces of Humanity

Portraits of people from around the globe
Button

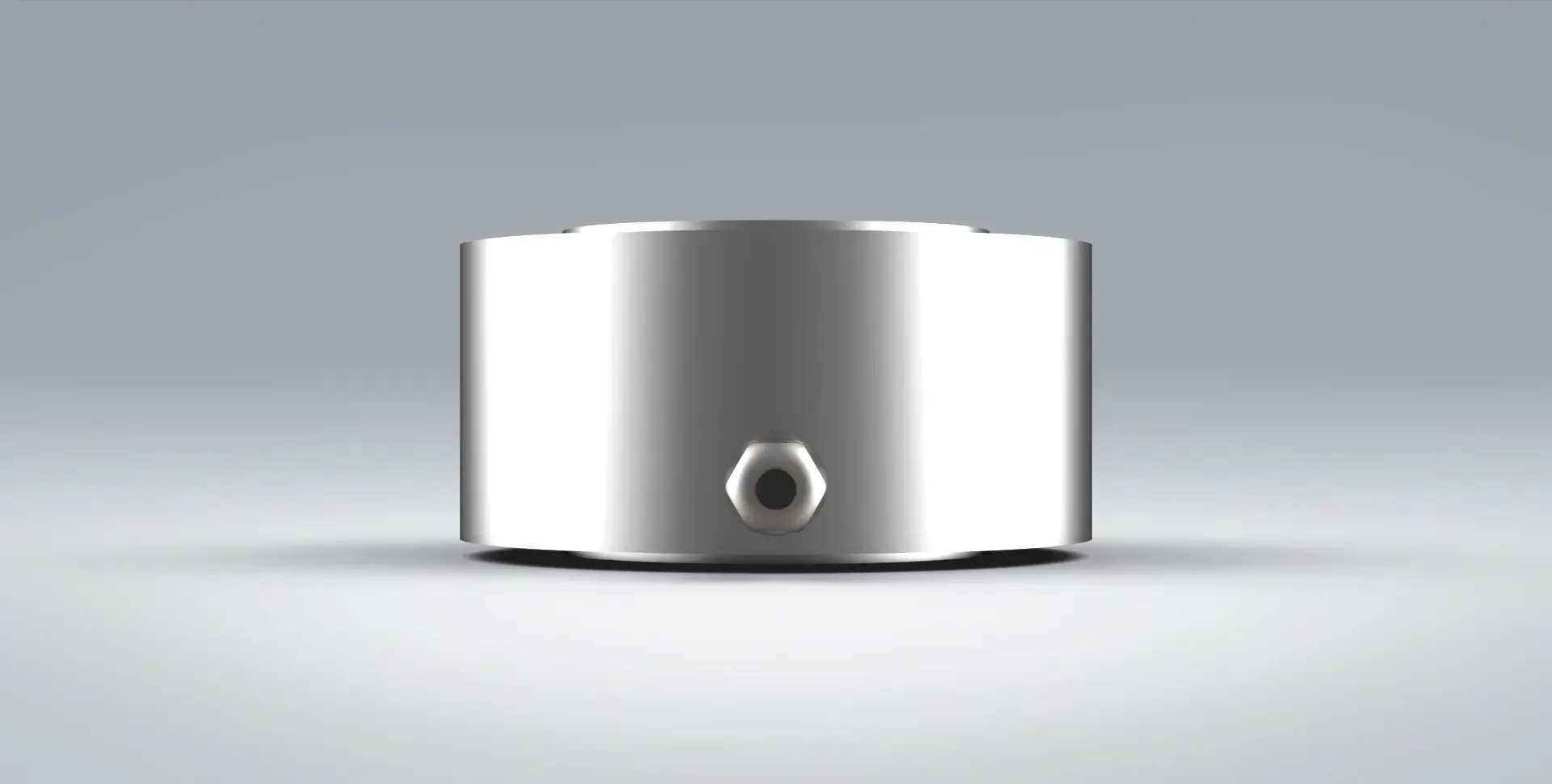

Front view of the FW donut load cell from Procter & Chester on a grey background.

Sands of Time

Stark beauty of desolate dunes
Button

Similar Products

a 3D designed model of the DIA compression load cell with a diaphragm design from PCM.

DIA

May 19, 2024
CAPACITY: 500KG - 1000KG
NON-LINEARITY: ±1% FS
RATING: IP65

available
3D model of a silver stainless steel CLS high performance column style compression load cell.

ALC

May 17, 2024
CAPACITY: 15TF – 200TF
NON-LINEARITY: ±1% FS
RATING: IP65
A close up design of the TC4 bi-directional pancake load cell for tension and compression measurement from stainless steel.

TC4

May 11, 2024
CAPACITY: 0.5TF – 500TF
NON-LINEARITY: ±0.05% FS
RATING: IP67

Typical Specification

PARAMETER VALUE UNITS
Capacities Range 4, 6, 8, 10, 25, 35, 55, 80 tf
Rated Output 1-2 mV/V
Linearity & Non-Repeatability 1 ±% of Rated Output
Zero Balance 5.0 ±% of Rated Output
Input Impedance 700±10 Ω
Output Impedance 700±10 Ω
Insulation Resistance >2 GΩ
Excitation (RECOMMENDED SUPPLY) 10 Volts AC or DC
Excitation (MAXIMUM SUPPLY) 15 Volts AC or DC
Temperature Range (OPERATING) -10 to +80 °C
Mechanical Limit (SAFE OVERLOAD) 150 % of Rated Output
Mechanical Limit (ULTIMATE OVERLOAD) 300 % of Rated Output
Cable Length 5 m
Sensor Construction Material Stainless Steel -
Environmental Protection IP67 -

Additional Information

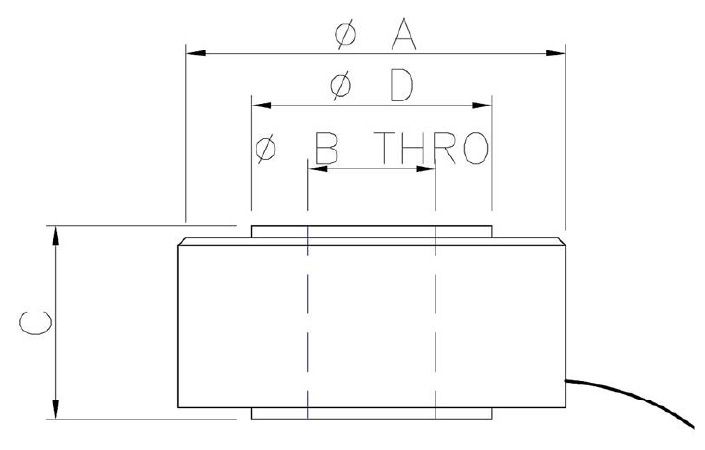

Outline dimensions for an FW force washer donut load cell.

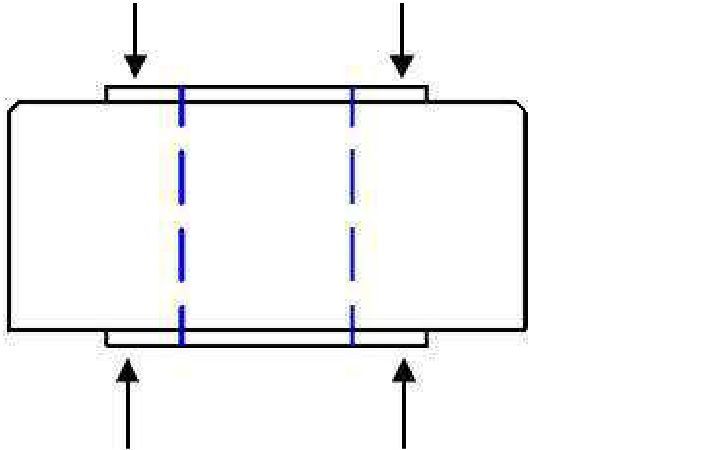

Loading instructions for an FW donut style force washer load cell.


CAPACITY (tf) BOLT SIZE ØA ØB C ØD
4 M8 36 9 23 17
6 M10 36 11 23 20
8 M12 50 14 23 25
10 M14 50 16 23 28
25 M20 65 22 33 44
35 M24 65 26 33 52
55 M30 80 33 75 64
80 M36 95 39 75 76

If the dimensions or specification do not suit, PCM has an in-house design team that should be able to satisfy your requirements.

Wiring Details

7/0.1 4-core screened cable, PVC sheath. Shield connected to the body of the load cell.

Wiring details for the FW donut style load cell.
OUTPUT CABLE (STANDARD)
EXCITATION+ RED
EXCITATION- BLUE
OUTPUT+ GREEN
OUTPUT- YELLOW
- SHIELD
