SLP

Shackle Load Pin for Tension Measurement

CAPACITY
2TF-100TF

NON-LINEARITY
0.25-2% RO

RATING
IP67

The SLP is a shackle load pin for tension measurement. It is designed around the Crosby G-2130 bolt type anchor shackle, although this can be changed.


An anti-rotation plate, nut, split pin or R clip, and centralising bobbin are all included as standard to help ensure the SLP operates as intended.


Our shackle load pins can be supplied hard-wired with a length of cable or with radio telemetry output.


The design of the SLP can be customised to better suit your application, if required.


To view the standard SLP shackle pin specification, please download the product datasheet.


To discuss your requirement in more detail with one of our experienced team members, please get in touch.

Technical Information Download Data Sheet Get a Quote
SLP shackle load pin for tension measurement from PCM.

Nature's Symphony

Breathtaking colors of our planet
Button

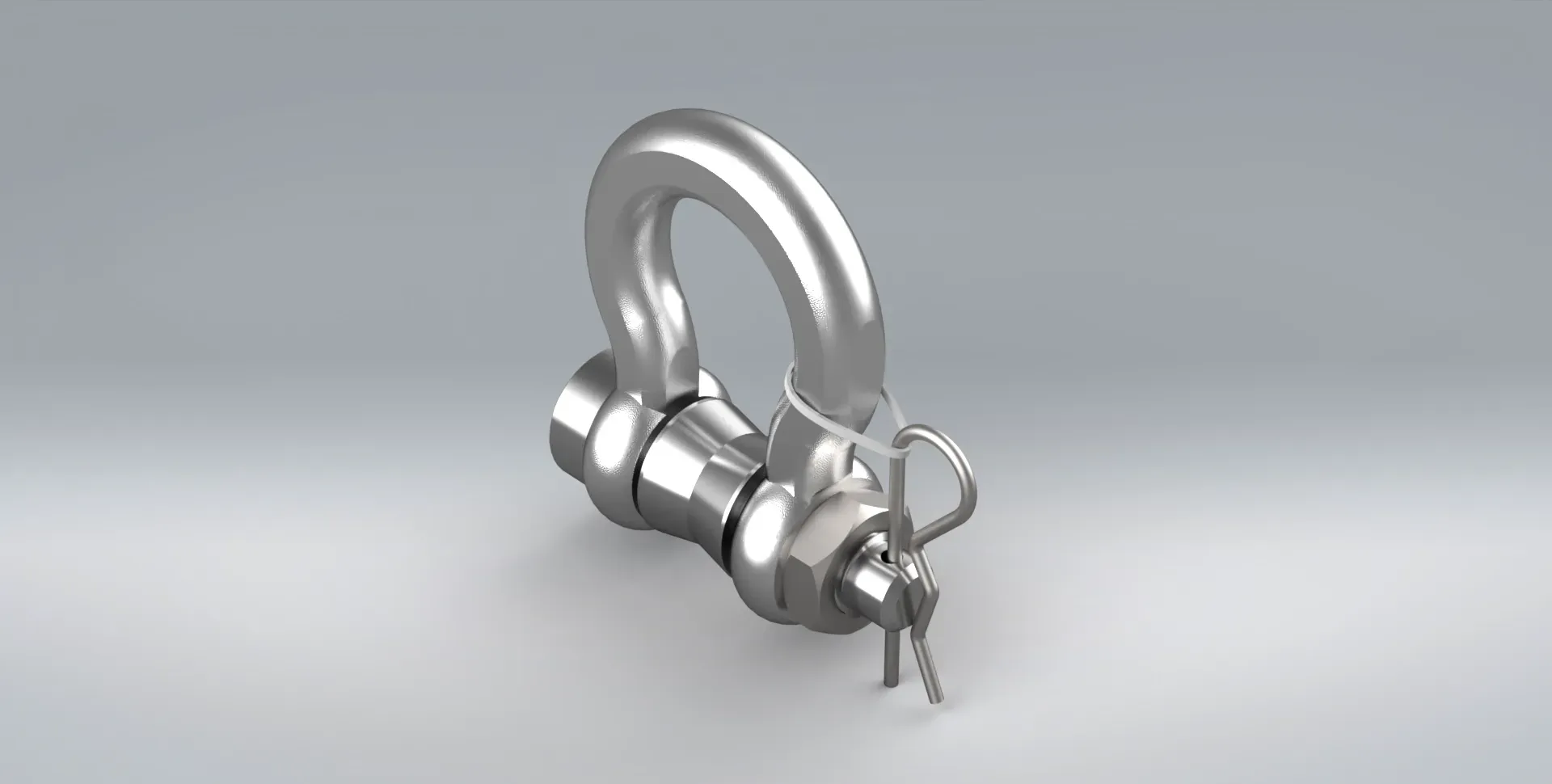

SLP Load shackle on a light grey background.

Faces of Humanity

Portraits of people from around the globe
Button

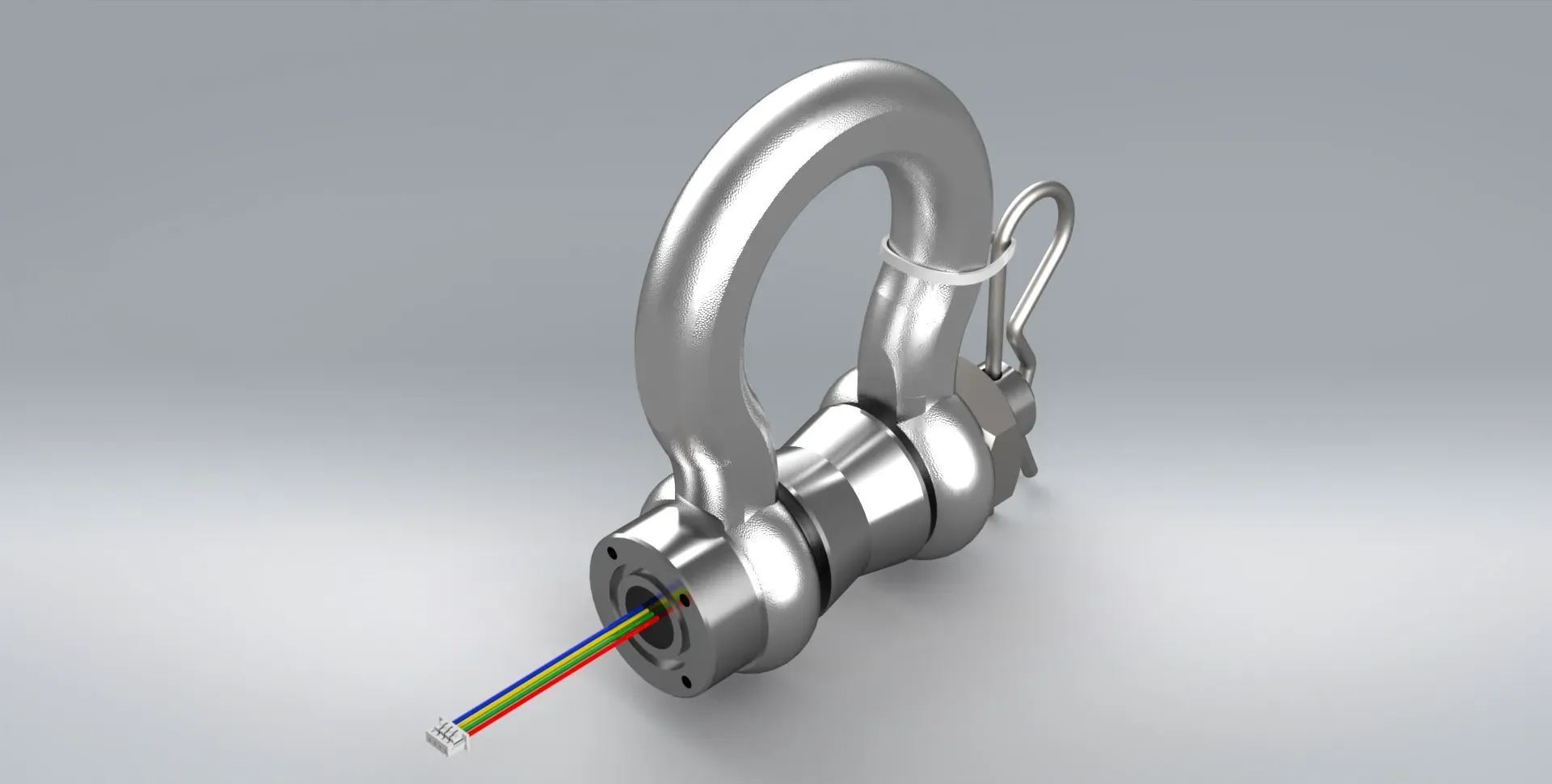

SLP load pin shackle from Procter & Chester Measurements.

Sands of Time

Stark beauty of desolate dunes
Button

Similar Products

A 3D model of the D200 tension link load cell, used to measure tension and designed with 2 holes on either side.

D200

May 7, 2024
CAPACITY: 20TF-100TF
NON-LINEARITY: ±0.1% FS
RATING: IP65
Design of the T20 standard tension link load cell. Laser welded stainless steel assembly on a plain grey background.

T20

May 7, 2024
CAPACITY: 5TF-20TF
NON-LINEARITY: ±0.023% FS
RATING: IP68

available
A 3D model of load pins designed, manufactured, strain gauged and calibrated by Procter and Chester Measurements.

LP

May 6, 2024
CAPACITY: BUILT TO ORDER
NON-LINEARITY: ±0.25-2% FS
RATING: IP67

Typical Specification

PARAMETER VALUE UNITS
Capacities Range 2, 5, 10, 15, 25, 35, 50, 100 tf
Rated Output 1-2 mV/V
Nominal Sensitivity 10 ±% of Rated Output
Linearity & Non-Repeatability 0.25 - 2 ±% of Rated Output
Zero Return (AFTER 30 MINUTES) 0.2 ±% of Applied Load
Zero Balance 1.5 ±% of Rated Output
Temperature Effect (ON ZERO) 0.02 ±% of Rated Output/°C
Temperature Effect (ON OUTPUT) 0.1 ±% of Rated Output/°C
Temperature Range (COMPENSATED) Ambient to +70 °C
Temperature Range (OPERATING) -10 to +80 °C
Input Resistance 380 (NOMINAL) Ω
Output Resistance 350 (NOMINAL) Ω
Insulation Resistance >2 GΩ
Excitation (RECOMMENDED SUPPLY) 10 Volts AC or DC
Excitation (MAXIMUM SUPPLY) 15 Volts AC or DC
Mechanical Limit (SAFE OVERLOAD) 200 % of Rated Output
Mechanical Limit (ULTIMATE OVERLOAD) 500 % of Rated Output
Cable Length 5 m
Cable Type 4-wire, screened -
Construction Material Stainless Steel -
Environmental Protection IP67 -

Additional Information

Outline dimensions for a load shackle from PCM for tension measurement.

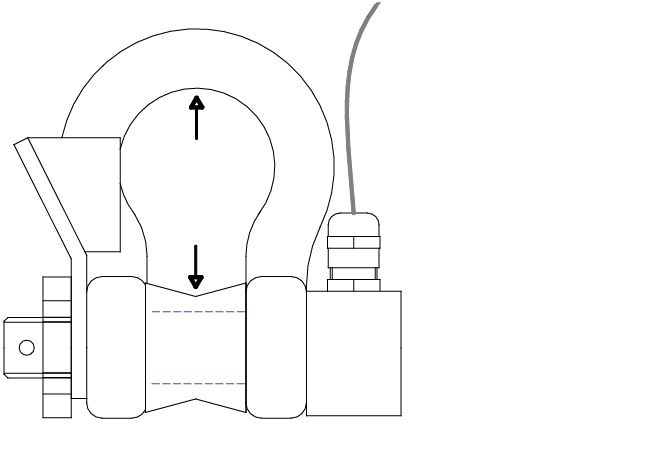

Loading instructions for a shackle load pin.


RATING (tf) G-2130 SHACKLE RATING (tf) A ØB C D ØE F G WEIGHT (KG)
2 3.25 26.9 19.1 60.5 106 30.3 38.1 16 0.76
5 6.5 36.6 25.4 84 148 36.6 53 22.4 1.79
10 12 51.5 35.1 119 210 52.6 76 31.8 5.31
25 25 73 51 178 313 72.7 106 44.5 15.4
35 35 82.5 57 197 348 79.4 122 51 23.7
50 55 105 70 267 453 91.9 145 66.5 44.6
75 85 127 82.5 330 546 115 165 76 70
100 120 133 95.5 372 626 127 203 92 120

If the dimensions or specification do not suit, PCM has an in-house design team that should be able to satisfy your requirements.

Wiring Details

Wiring Details for a shackle load pin
OUTPUT CABLE (STANDARD)
EXCITATION+ RED
OUTPUT+ YELLOW
EXCITATION- BLUE
OUTPUT- GREEN
SHIELD -
