CNC

Heavy Duty Canister Load Cell | Column Design

CAPACITY
75TF – 500TF

NON-LINEARITY
±0.5% RO

RATING
IP65

The CNC is a heavy-duty, low-profile compression load cell. It is simple but effective by design, featuring a stainless steel spring element and a plated steel case, sealed to IP65.


This load cell is a popular product as it is rugged and its physical size is ideal for handling/installation.  It can also be modified to better suit your application, if required.



To view the full specification, please download the product datasheet.

Technical Information Download STP Download Data Sheet Get a Quote
CNC heavy duty canister load cell used to measure compression with a plated steel case from PCM

Nature's Symphony

Breathtaking colors of our planet
Button

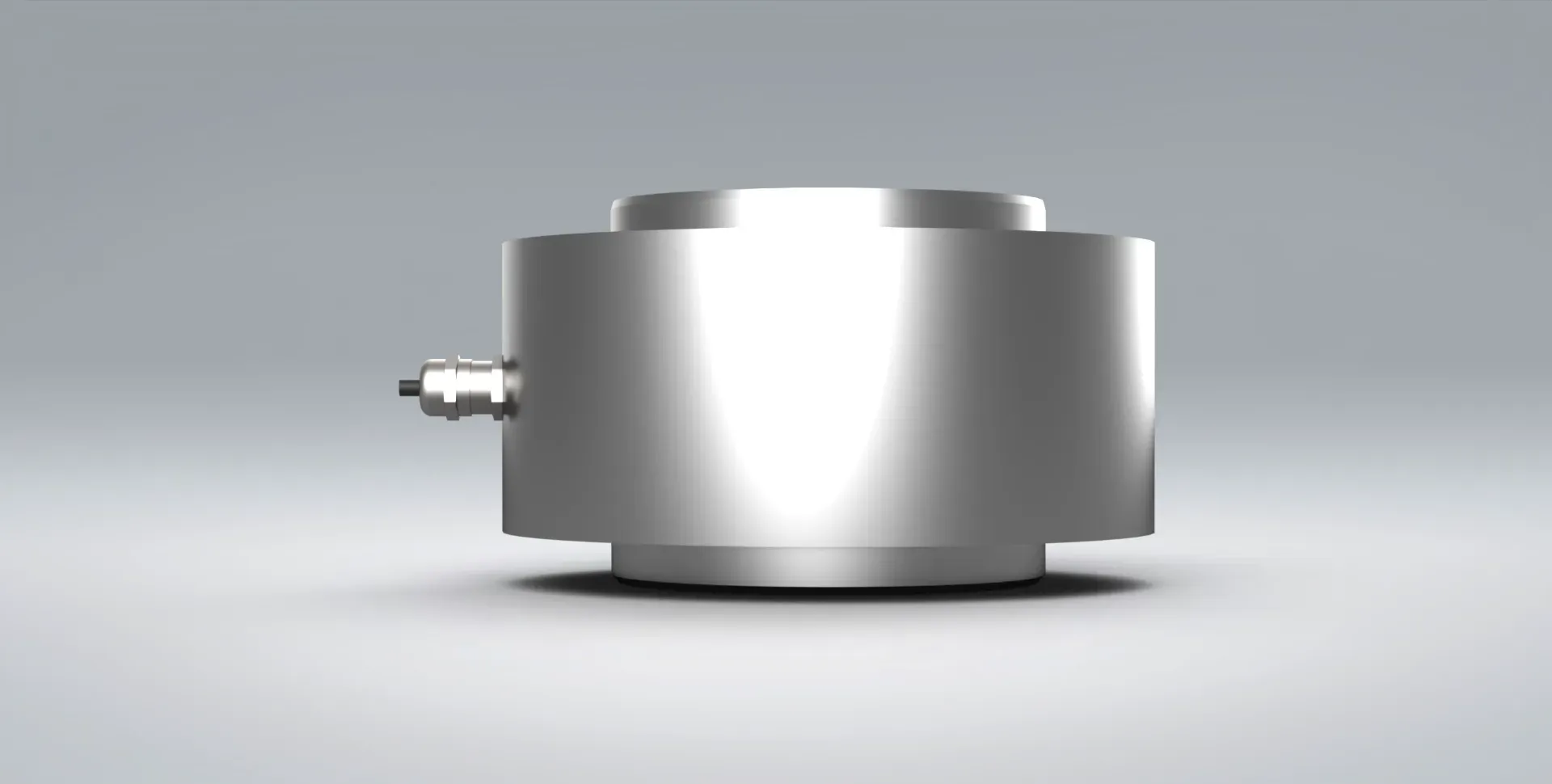

CNC heavy-duty low profile compression load cell with a grey background

Faces of Humanity

Portraits of people from around the globe
Button
Front image of the CNC heavy duty load cell from Procter & Chester Measurements

Sands of Time

Stark beauty of desolate dunes
Button

Similar Products

3D model of a silver stainless steel CLS high performance column style compression load cell.

ALC

May 17, 2024
CAPACITY: 15TF – 200TF
NON-LINEARITY: ±1% FS
RATING: IP65
3D model of a silver stainless steel CLS high performance column style compression load cell.

CLS

May 15, 2024
CAPACITY: 30TF – 500TF
NON-LINEARITY: ±0.023% FS
RATING: IP68

available
3D design of PCM's CN column compression load cell made from stainless steel on a grey background.

CN

May 14, 2024
CAPACITY: 50TF– 1000TF
NON-LINEARITY: ±0.25% FS
RATING: IP65

Typical Specification

PARAMETER VALUE UNITS
Capacities Range 75, 100, 200, 300*, 400*, 500* tf
Rated Output 2 ±10% mV/V
Linearity & Non-Repeatability 0.5 (*1-1.5) ±% of Rated Output
Zero Balance 2.0 ±% of Rated Output
Temperature Effect (ON ZERO) 0.02 ±% of Rated Output/°C
Temperature Effect (ON OUTPUT) 0.1 ±% of Applied Load/°C
Temperature Range (COMPENSATED) -10 to +70 °C
Temperature Range (OPERATING) -30 to +80 °C
Input Resistance 760±20 Ω
Output Resistance 700±10 Ω
Insulation Resistance >2 GΩ
Excitation (RECOMMENDED SUPPLY) 5-10 Volts AC or DC
Excitation (MAXIMUM SUPPLY) 15 Volts AC or DC
Mechanical Limit (SAFE OVERLOAD) 150 % of Rated Output
Mechanical Limit (ULTIMATE OVERLOAD) 300 % of Rated Output
Cable Length 5 m
Cable Type 4-wire, screened -
Construction Material (ELEMENT) Stainless Steel -
Construction Material (CASE) Plated Steel -
Environmental Protection IP65 -
PARAMETER 75 100 200 300 400 500
Weight (~KG) 6 7 8 10 12 14

Additional Information

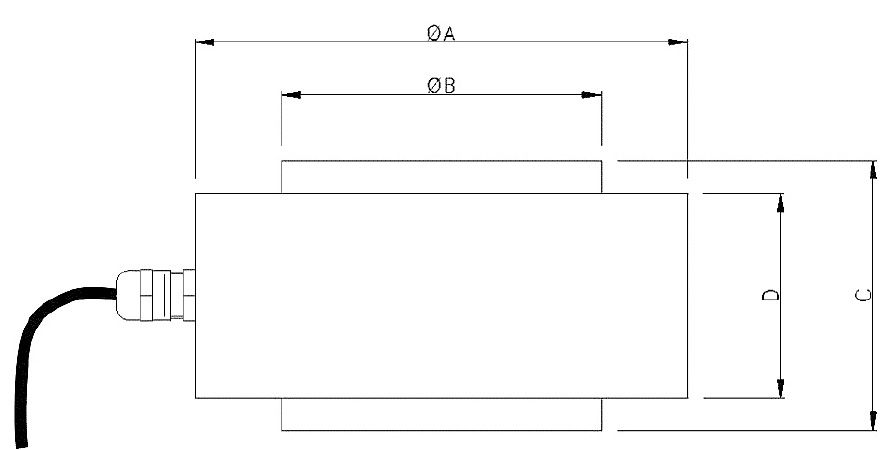

Outline dimensions for the CNC heavy duty canister load cell.

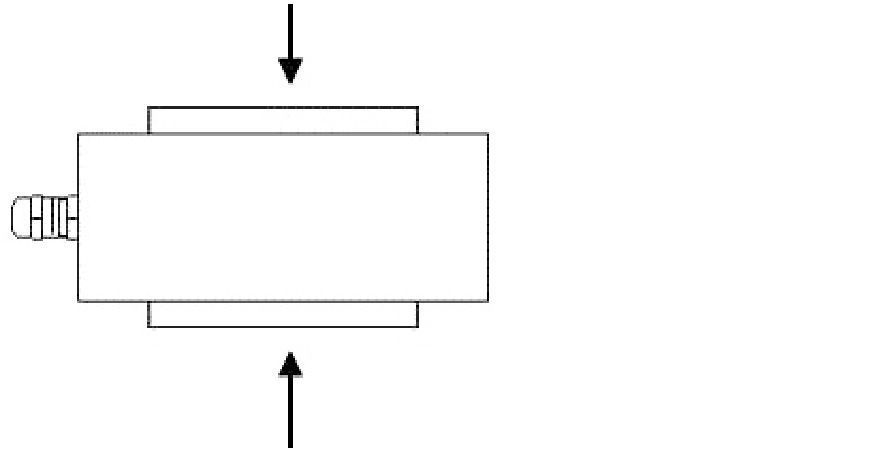

Loading instructions for the CNC heavy duty canister load cell.


CAPACITY (tf) ØA ØB C D
75 153 102 89 67
100 153 102 89 67
200 153 102 89 67
300 153 127 89 67
400 153 127 89 67
500 182 150 100 92

If the dimensions or specification do not suit, PCM has an in-house design team that should be able to satisfy your requirements.

Wiring Details

Wiring details for the heavy duty CNC canister load cell.
OUTPUT CABLE (STANDARD)
EXCITATION+ RED
OUTPUT+ GREEN
EXCITATION- BLUE
OUTPUT- YELLOW
SHIELD -
