High Capacity Canister Load Cell

CAPACITY
50TF – 1000TF

NON-LINEARITY
±0.25% RO

RATING
IP65

The CN is a rugged column design compression load cell with an integrated self-aligning load button.


As standard, these load cells are supplied as a stainless steel spring element and plated steel cover assembly that is sealed to IP65.


The CN can be customised to suit your application - typical options include a second bridge for dual bridge output, lifting handles to allow safer handling, and/or a change in dimensions.



To view the full specification, please download the product datasheet.

Technical Information Download STP Download Data Sheet Get a Quote

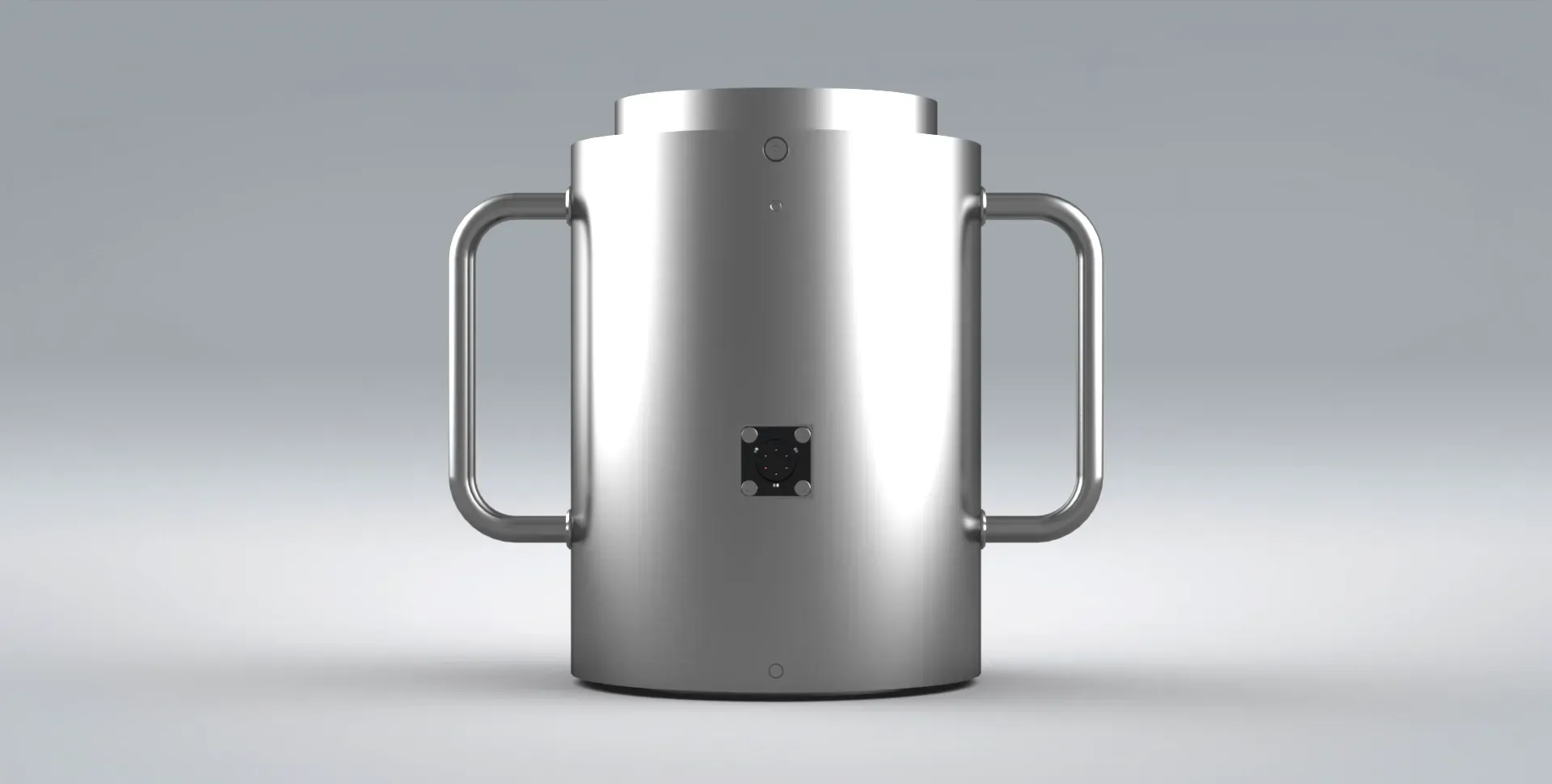

CN high capacity canister load cell made from stainless steel on a grey background

Nature's Symphony

Breathtaking colors of our planet
Button

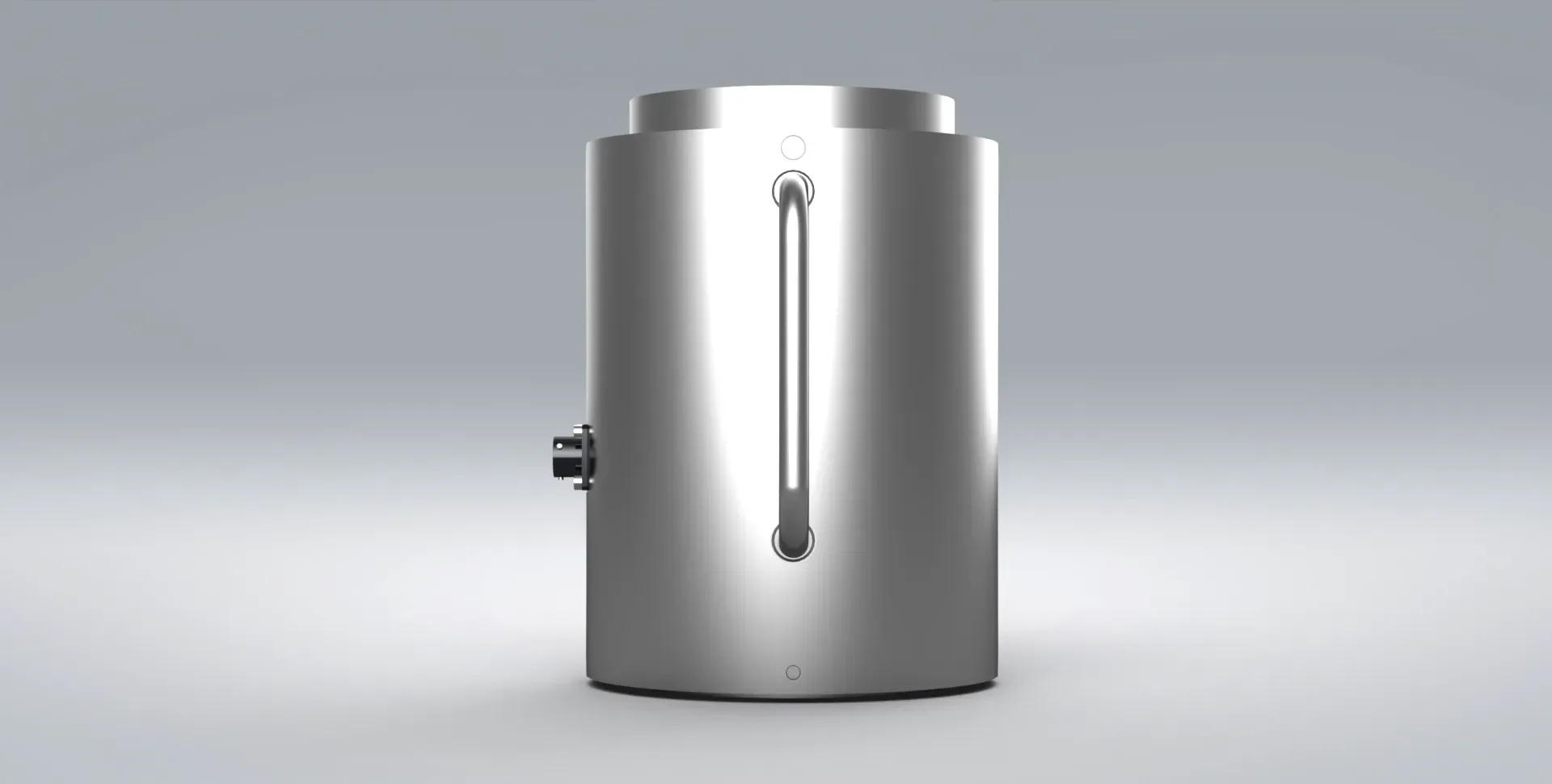

Side view of the CN heavy duty column compression load cell from PCM

Faces of Humanity

Portraits of people from around the globe
Button
Front view of the CN canister load cell on a grey background

Sands of Time

Stark beauty of desolate dunes
Button

Similar Products

3D model of a silver stainless steel CLS high performance column style compression load cell.

ALC

May 17, 2024
CAPACITY: 15TF – 200TF
NON-LINEARITY: ±1% FS
RATING: IP65
A metallic steel 3D model of a CNC heavy-duty, low-profile compression load cell on a lighter grey background.

CNC

May 16, 2024
CAPACITY: 75TF – 500TF
NON-LINEARITY: ±0.5% FS
RATING: IP65

available
3D model of a silver stainless steel CLS high performance column style compression load cell.

CLS

May 15, 2024
CAPACITY: 30TF – 500TF
NON-LINEARITY: ±0.023% FS
RATING: IP68

available

Typical Specification

PARAMETER VALUE UNITS
Capacities Range 50, 100, 200, 400, 600, 800, 1000 tf
Rated Output 2 ±10% mV/V
Linearity & Non-Repeatability 0.25 ±% of Rated Output
Zero Balance 2.0 ±% of Rated Output
Temperature Effect (ON ZERO) 0.02 ±% of Rated Output/°C
Temperature Effect (ON OUTPUT) 0.1 ±% of Rated Output/°C
Temperature Range (COMPENSATED) -10 to +70 °C
Temperature Range (OPERATING) -30 to +80 °C
Input Resistance 760±20 Ω
Output Resistance 700±10 Ω
Insulation Resistance >2 GΩ
Excitation (RECOMMENDED SUPPLY) 5-10 Volts AC or DC
Excitation (MAXIMUM SUPPLY) 15 Volts AC or DC
Mechanical Limit (SAFE OVERLOAD) 150 % of Rated Output
Mechanical Limit (ULTIMATE OVERLOAD) 300 % of Rated Output
Cable Length 5 m
Cable Type 4-wire, screened -
Construction Material (ELEMENT) Stainless Steel -
Construction Material (CASE) Plated Steel -
Environmental Protection IP65 -
PARAMETER 50 100 200 400 600 800 1000
Weight (~KG) 4 4 10 24 35 64 146

Additional Information

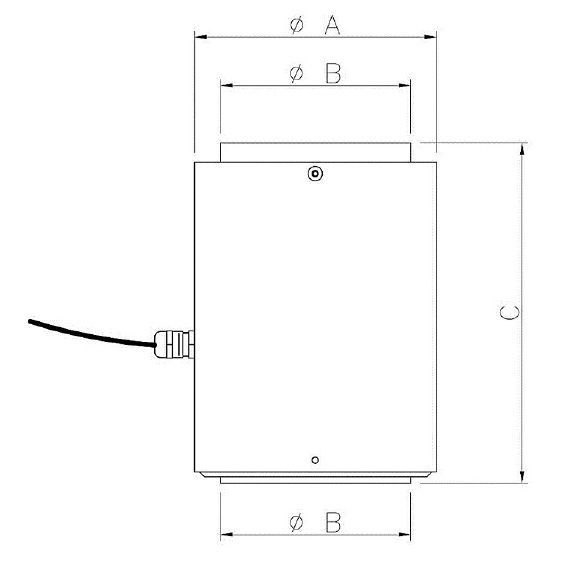

Outline dimensions of a CN high capacity canister load cell.

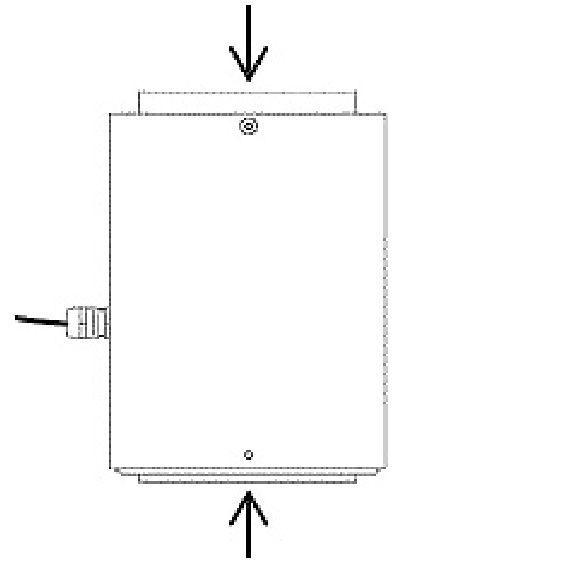

Loading instructions for a CN high capacity canister load cell.


CAPACITY (tf) A B C
50 102 52 110
100 102 52 110
200 120 85 153
400 152 120 214
600 184 147 250
800 216 179 293
1000 254 210 450

If the dimensions or specification do not suit, PCM has an in-house design team that should be able to satisfy your requirements.

Wiring Details

Wiring details for the CN high capacity canister load cell.
OUTPUT CABLE
EXCITATION+ RED
OUTPUT+ GREEN
EXCITATION- BLUE
OUTPUT- YELLOW
SHIELD -
