CLS

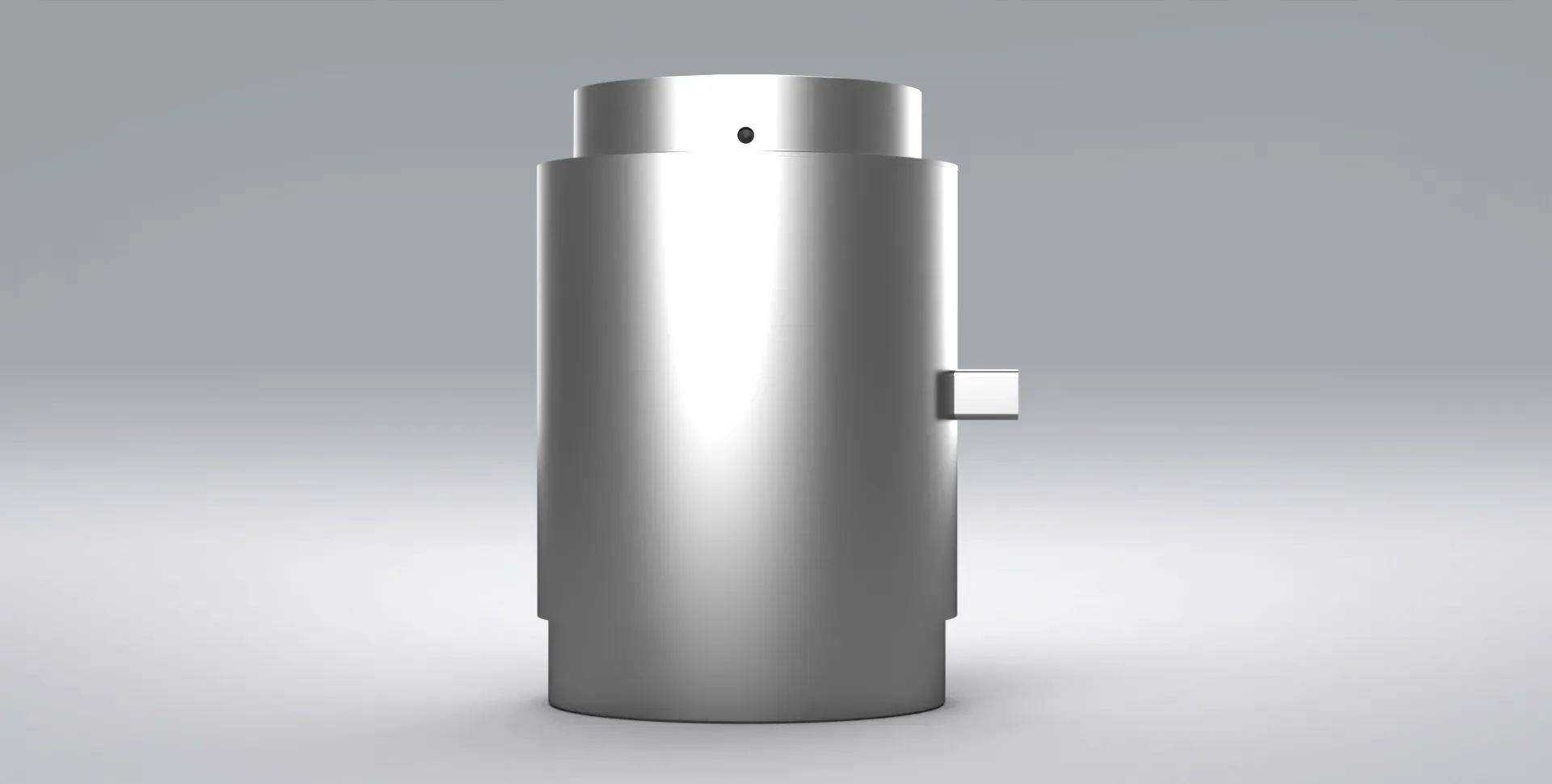

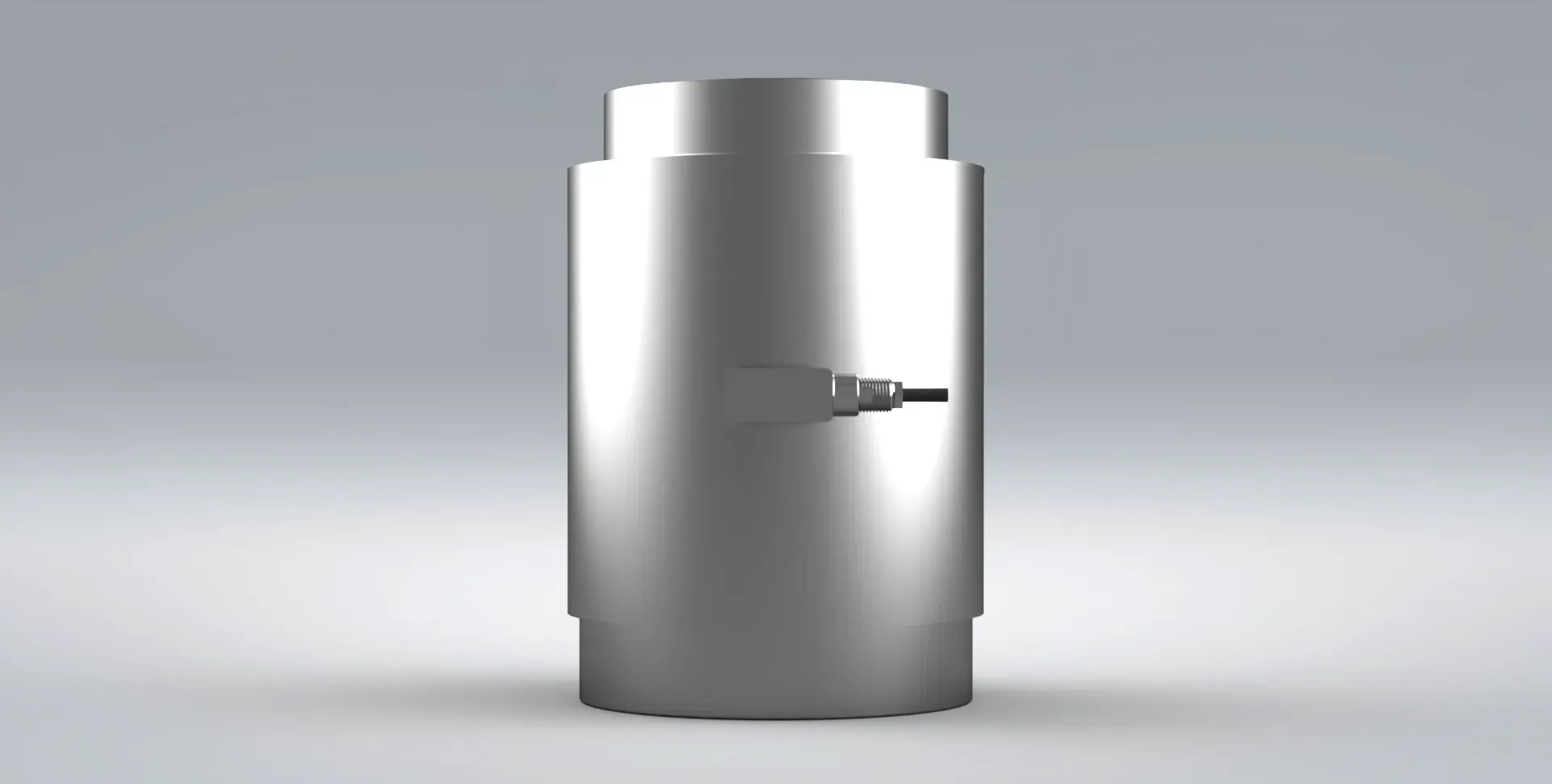

Heavy Duty Canister Load Cell | Hermetically Sealed
CAPACITY
30TF – 500TF
NON-LINEARITY
±0.023% RO
RATING
IP68

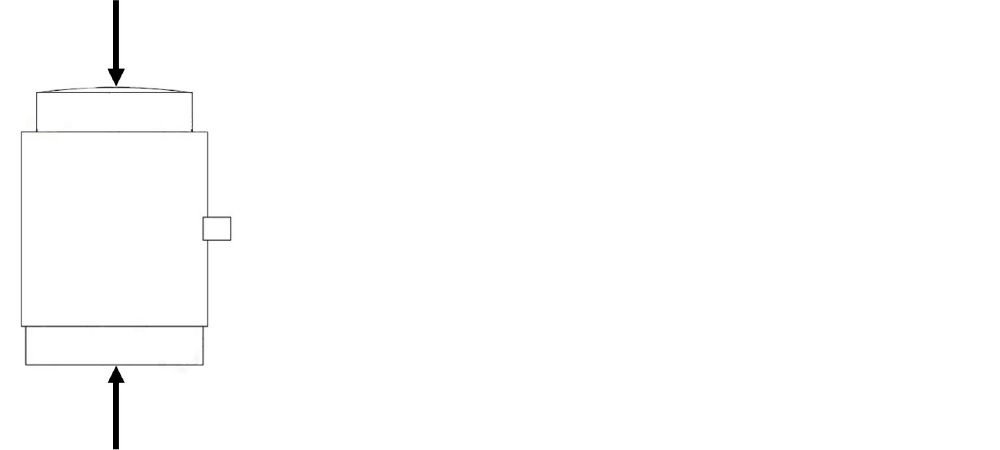

Produced from stainless steel, the CLS is a high performing column design compression load cell that is fully laser welded and sealed to IP68 to provide long term stability and high mechanical resistance.
A separate loading head is supplied as standard to maximise performance.
This load cell cannot be customised.
To view the full specification, please download the product datasheet.
Similar Products
Typical Specification
| PARAMETER | VALUE | UNITS |
|---|---|---|
| Capacities Range (Emax) | 30, 60, 100, 200,300, 500 | tf |
| Rated Output | 2 | mV/V |
| Nominal Sensitivity | 2 ±0.1% | ±% of Rated Output |
| Minimum Verification Interval (Vmin) | Emax / 10000 | - |
| Combined Error | 0.023 | ±% of Rated Output |
| Non-Repeatability | 0.010 | ±% of Rated Output |
| Zero Return (AFTER 30 MINUTES) | 0.026 | ±% of Rated Output |
| Creep (OVER 30 MINUTES) | 0.028 | ±% of Rated Output |
| Creep (OVER 20 & 30 MINUTES) | 0.008 | ±% of Rated Output |
| Temperature Effect (ON ZERO) | 0.024 | ±% of Rated Output/°C |
| Temperature Effect (ON OUTPUT) | 0.017 | ±% of Rated Output/°C |
| Insulation Resistance | >5 | GΩ |
| Zero Balance | 1 | ±% of Rated Output |
| Excitation (NOMINAL SUPPLY RANGE) | 1-15 | Volts AC or DC |
| Excitation (RECOMMENDED) | 10 | Volts AC or DC |
| Excitation (MAXIMUM) | 18 | Volts AC or DC |
| Temperature Range (NOMINAL) | -10 to +40 | °C |
| Temperature Range (COMPENSATED) | -20 to +80 | °C |
| Temperature Range (OPERATING) | -20 to +70 | °C |
| Mechanical Limit (SERVICE OVERLOAD) | 120 | % of Rated Output |
| Mechanical Limit (SAFE OVERLOAD) | 150 | % of Rated Output |
| Mechanical Limit (ULTIMATE OVERLOAD) | 300 | % of Rated Output |
| Mechanical Limit (MAXIMUM TRANSVERSE LOAD) | 50 | % of Rated Output |
| Cable Length | 5 | m |
| Sensor Construction Material | Stainless Steel | - |
| Environmental Protection | IP68 | - |
| PARAMETER | 30 | 60 | 100 | 200 | 300 | 500 |
|---|---|---|---|---|---|---|
| Input Impedance | 700±2 | 700±2 | 700±2 | 350±2 | 350±2 | 350±2 |
| Output Impedance | 700±2 | 700±2 | 700±2 | 350±2 | 350±2 | 350±2 |
| Weight (~KG) | 7 | 7 | 7 | 16 | 16 | 31 |
Additional Information

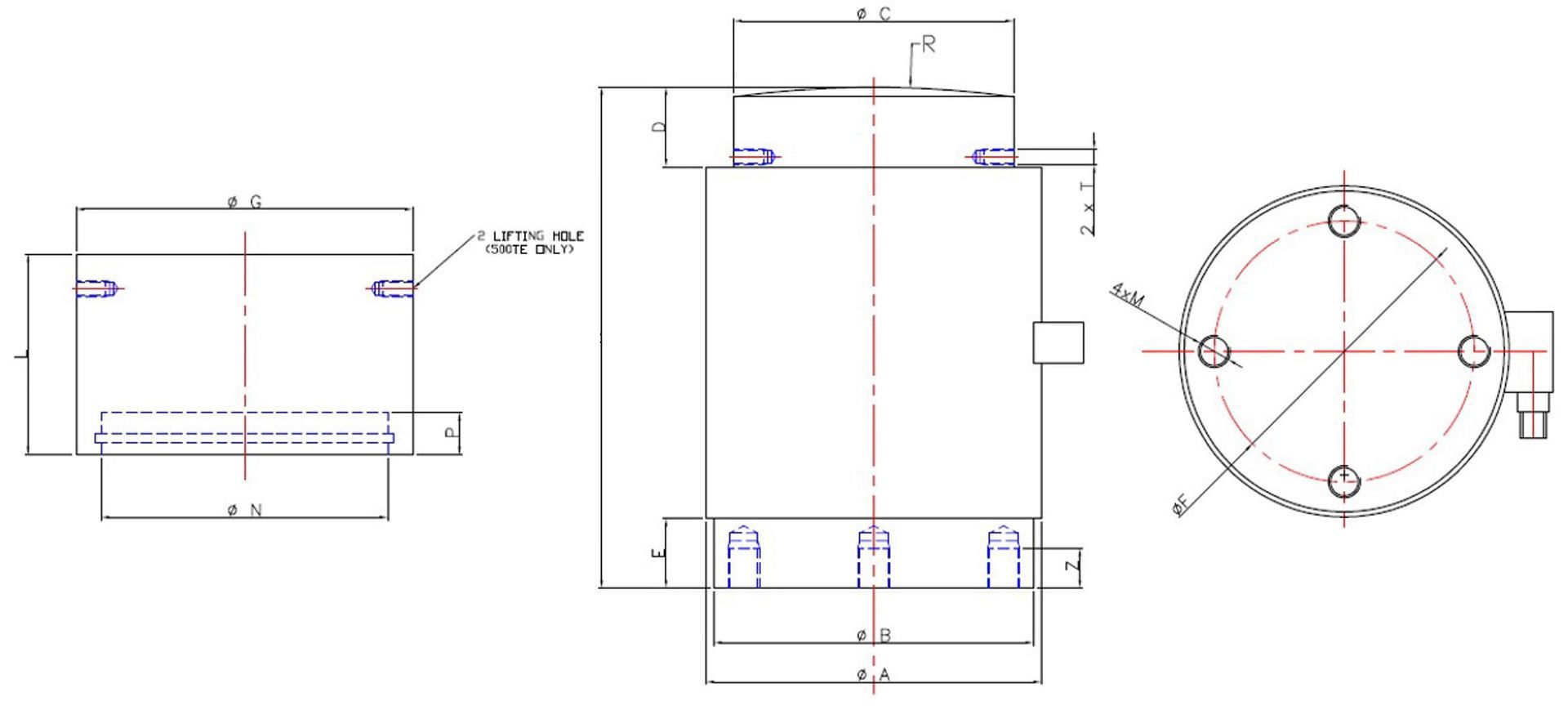

| CAPACITY (tf) | ØA | ØB | ØC | D | E | F | ØG | H | L | M | ØN | P | R | T | Z |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 30 | 102 | 94 | 76 | 15 | 15 | 70 | 102 | 165 | 65 | M8 | 79 | 12 | 200 | - | 16 |
| 60 | 102 | 94 | 76 | 15 | 15 | 70 | 102 | 165 | 65 | M8 | 79 | 12 | 200 | - | 16 |
| 100 | 102 | 94 | 76 | 15 | 15 | 70 | 102 | 165 | 65 | M8 | 79 | 12 | 200 | - | 16 |
| 200 | 129 | 122 | 106 | 20 | 14 | 90 | 129 | 215 | 80 | M12 | 109 | 17 | 350 | - | 18 |
| 300 | 129 | 122 | 106 | 20 | 14 | 90 | 129 | 215 | 80 | M12 | 109 | 17 | 350 | - | 18 |
| 500 | 168 | 160 | 140 | 35 | 35 | 130 | 168 | 250 | 100 | M16 | 143 | 21 | 500 | M8 | 20 |
If the dimensions or specification do not suit, PCM has an in-house design team that should be able to satisfy your requirements.
Wiring Details
(1)PVC 105°C shielded cable, Ø5.2mm with 4 tinned Ø0.25mm2 conductors. Shield connected to the body of the load cell. (2) M12 OPTION: Supplied with mating female 8 poles straight M12x1 connector, complete with 5m PVC 80°C shielded cable, Ø5.2mm with 6 tinned Ø0.25mm2 conductors.
| OUTPUT | CABLE(1) | MIL7M (OPTIONAL) | M12(2)(OPTIONAL) |
|---|---|---|---|
| EXCITATION+ | RED | C | 1 |
| SENSE+ | ORANGE | F | 5 |
| OUTPUT+ | WHITE | A | 3 |
| EXCITATION- | BLACK | B | 2 |
| SENSE- | BLUE | G | 6 |
| OUTPUT- | YELLOW | D | 4 |
| - | SHIELD | E | 8 |
