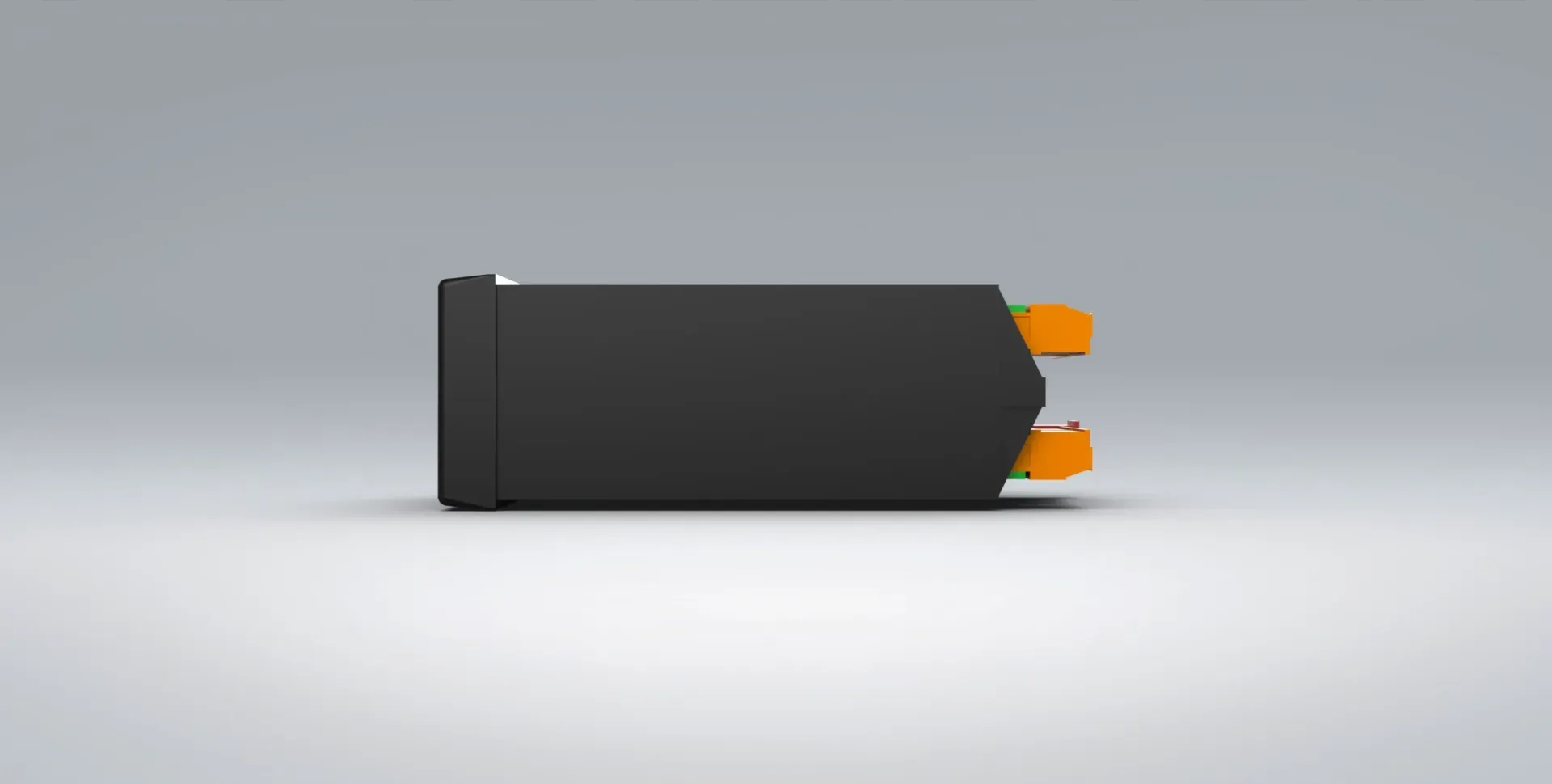

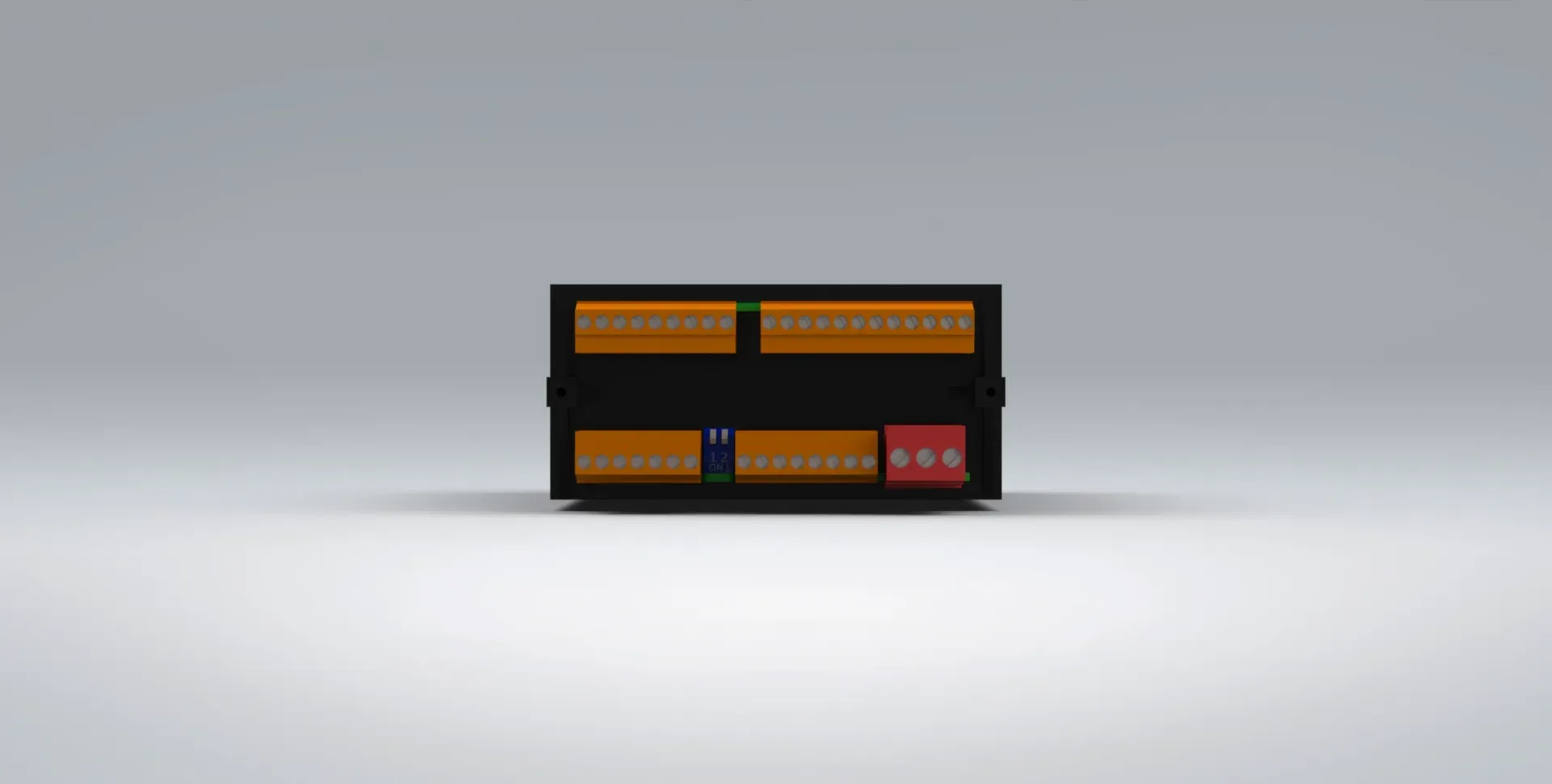

INT4
Intuitive Load Cell Panel Meter
OUTPUT
DISPLAY
POWER SUPPLY
110-240VAC, 11-30VDC
RATING
IP65

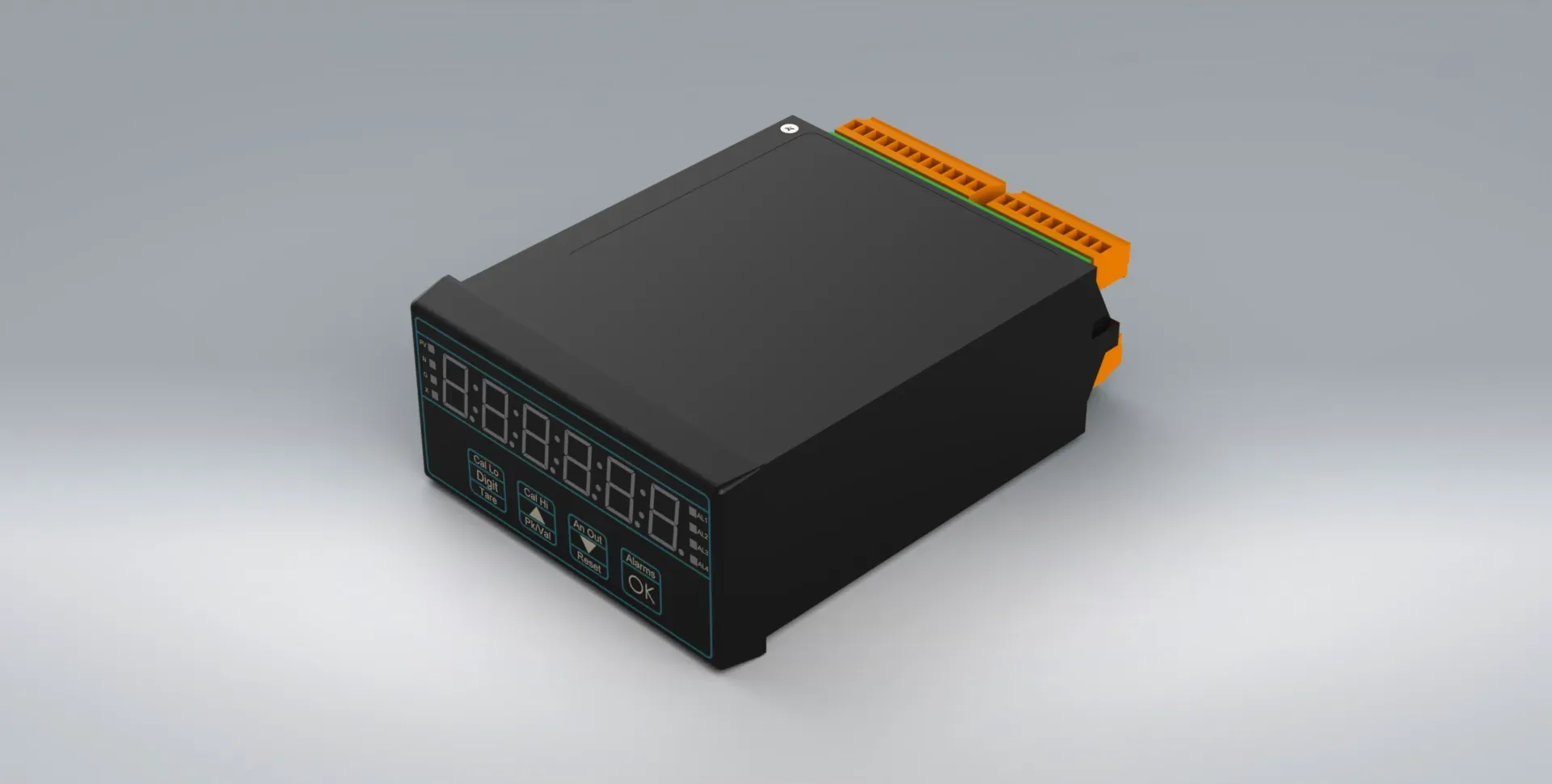

The INT4-L is an ideal general purpose weighing indicator for 4 wire and 6 wire load cells. These are among the easiest of programmable panel meters to commission, programmable using the front panel push buttons which may then be locked with a rear switch. The Intuitive series offers high precision with long term reliability, available with AC or DC power supply options.
The main function of the INT4-L is to give a numeric readout of the variable being monitored and includes an excitation power output to power the load cell directly. Various optional output modules are also available to give alarm relay outputs, analogue output or digital communications, or any combination of these options.
The INT4-L has been designed to mount into a protective enclosure which will protect users from contact with power and signal wiring. These panel meters must be installed fully assembled, and must be installed according to local electrical installation rules.
When properly installed, they provide ingress protection to IP65/NMA4X from the front. To view the full specification, please download the product datasheet.
Similar Products
Typical Specification
| PARAMETER | VALUE |
|---|---|
| Bezel Size | 48mm high by 96mm wide (1/8 DIN) |
| Panel Cutout | 45mm high by 92mm wide. |
| Case Depth | 125mm including connectors. |
| Weight | 300g |
| Case Material | Black polycarbonate. |
| Connectors | Detachable screw terminal connectors. |
| Storage Temperature Range | -20°C to +70°C (non-condensing) |
| Operating Temperature Range | 0°C to +50°C (non-condensing) |
| Environmental Protection | IP65 (front sealed) – Optional IP67. |
| Power Supply | 110-240V AC (45-60Hz), or Optional 11-30V DC. |
| Burden (Maximum) | 10VA |
| Input Signals (Bipolar) | 4-wire/6-wire load cell up to ±40mV – Optional ±100mV. |
| Input Resistance | >10MΩ |
| Accuracy | ±0.05% of range. Allow 30 minutes after switch-on for thermal stabilisation. |
| Span Tempco | 25ppm/°C |
| Zero Tempco | 30ppm/°C |
| 5V Excitation Voltage | 5V DC nominal rated at 40mA. (MUST CONNECT TO SENSE) |
| 10V Excitation Voltage | 10V DC nominal rated at 120mA. (MUST CONNECT TO SENSE) |
| Excitation Sense | Ratiometric, 4V absolute minimum allowed after line drops. |
| Filtering/Smoothing | Selectable time constraints of 0-25 seconds. |
| A/D Conversion | - A/D is preceded by an active low pass filter with 7Hz cut-off point. |
| - Sigma-Delta 10 conversions per second, 50/60Hz rejection. | |
| - Resolution 1 in 400,000 maximum over full range. | |
| Display Update Rate | 10 readings per second. |
| Display Range (Maximum) | ±199999, depending on available signal level. |

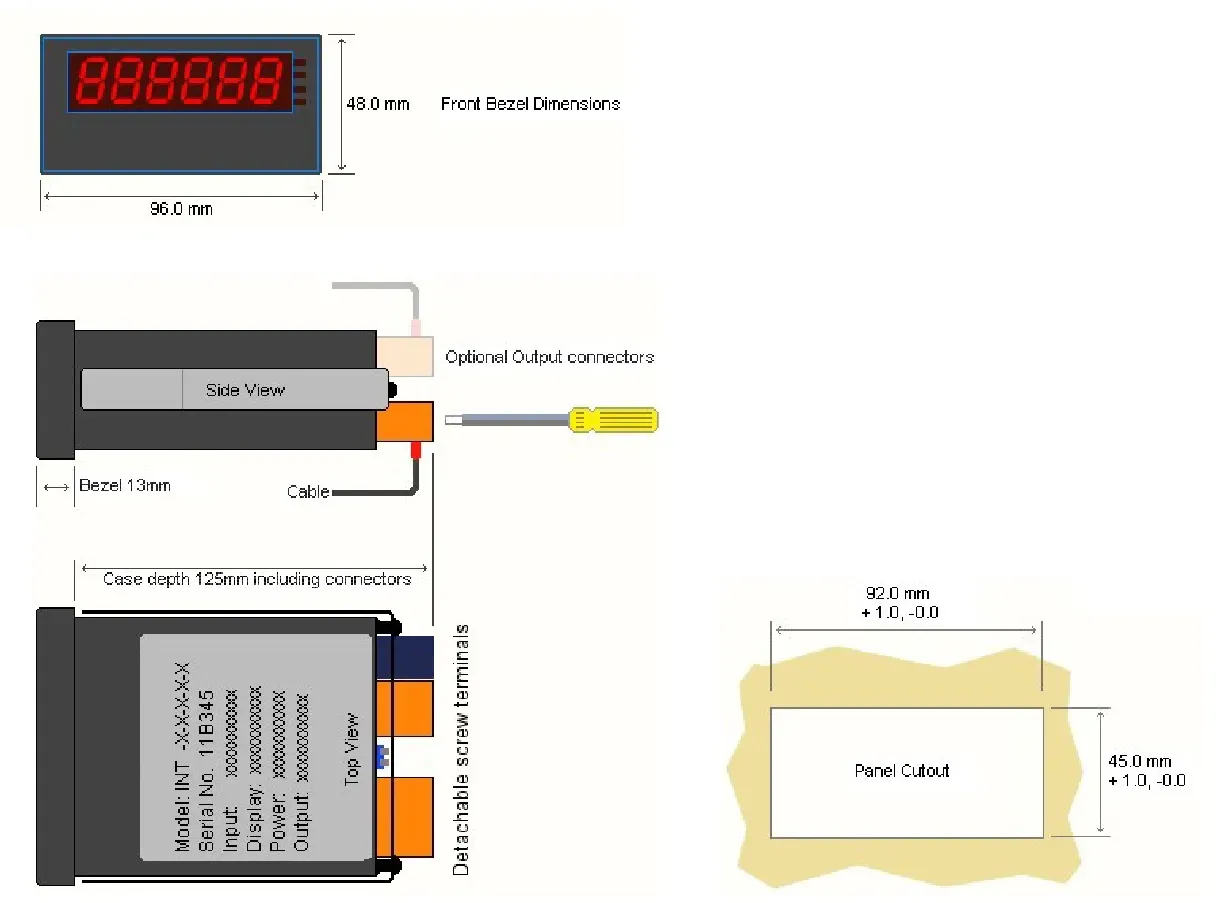

Outline Dimensions (mm)
Ordering Codes
When PCM provide you with a quotation you will see an ordering code like this: “INT4-L-ANI-0-0-R-AC-0”
| CODE | DESCRIPTION |
|---|---|
| INT4-L | Load Cell Panel Meter |
| CODE | DESCRIPTION |
|---|---|
| 0 | No analogue output. |
| ANI | 4-20mA output. |
| ANV | 0-10V output. |
| ANB | ±10V output. |
| CODE | DESCRIPTION |
|---|---|
| 0 | No alarm output. |
| AL2 | 2 alarms. |
| AL4 | 4 alarms. |
| SPCO | 2x SPCO. |
| DSS | Dual Solid State. |
| QSS | Quad Solid State. |
| CODE | DESCRIPTION |
|---|---|
| 0 | No serial output |
| 232 | RS232 output. |
| 485 | RS485 output. |
| RTU | Modbus RTU output. |
| CODE | DESCRIPTION |
|---|---|
| R | Red display colour (standard) |
| RDLV | Red colour daylight viewing display |
| G | Green display colour. |
| CODE | DESCRIPTION |
|---|---|
| AC | 95-265VAC supply. |
| DC | 11-30VDC supply. |
| CODE | DESCRIPTION |
|---|---|
| 0 | No additional add-ons. |
| 100mV | 100mV input. |
| H | Real time clock (USUALLY FITTED WITH RS232/RS485 SERIAL OUTPUT) |
| PL | Plain lens. |
| SPC4 | IP67 rated front cover. |
| WALLBOX | IP65 rated case (INCLUDES SPC4 IP67 RATED FRONT COVER) |
| MEM | 8 program memory. |
| DIN | DIN rail mounting. |
| 100X | 100X fast conversion. |
| CLONE KIT | Clone kit. |
| 5VEXC | 5V excitation. |
| PBEXT | Connection for 4 remote programming buttons. |
| HALFBRIDGE | Half bridge input for load cells. |
