DSCUSB

Strain Gauge Digital Signal Conditioner

OUTPUT
USB

POWER SUPPLY
USB

RATING
IP50

The DSCUSB strain gauge to USB converter is a compact, high performance strain gauge digital signal conditioner with USB connectivity, aimed at applications which require high-accuracy measurement repeatability.


Ideal for all strain gauge bridge based sensors, the device simply plugs into your PC, where data can be acquired and manipulated by accompanying software. This removes the need for amplifiers, filters and multimeters. No additional power supply is required either, as power is drawn from the USB bus.



Its rugged ABS IP50 enclosure makes the DSCUSB suitable for all environments.


Although ideal for 1 to 1 interface, the DSCUSB can also connect to multiple sensors through the use of a suitable hub. It will communicate as a simple serial device rather than a ‘native’ USB device - once the device is plugged into a PC and the supplied drivers are installed, the device will appear as a Virtual Serial Port to the PC.


Typical applications for the DSCUSB digitiser module are those requiring simple sensor connectivity in desktop settings, such as test and measurement, R&D and laboratory environments.

To view the full specification, please download the product datasheet.

Technical Information Download Software View User Manual Download Data sheet Get a Quote
DSCUSB strain gauge digital signal conditioner from Procter & Chester Measurements on a grey background

Nature's Symphony

Breathtaking colors of our planet
Button

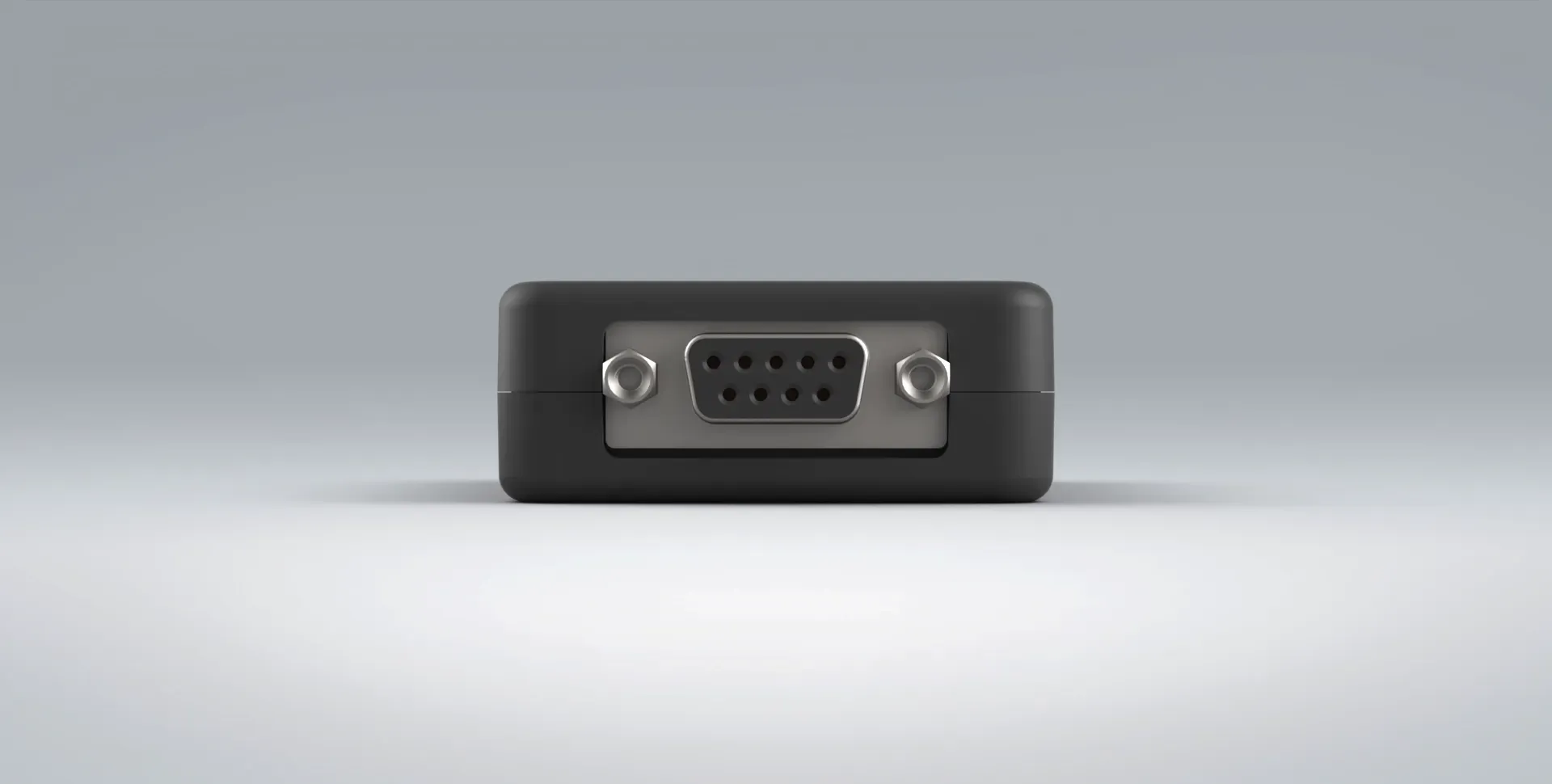

The DSCUSB strain gauge to USB converter made by Mantracourt Electronics

Faces of Humanity

Portraits of people from around the globe
Button

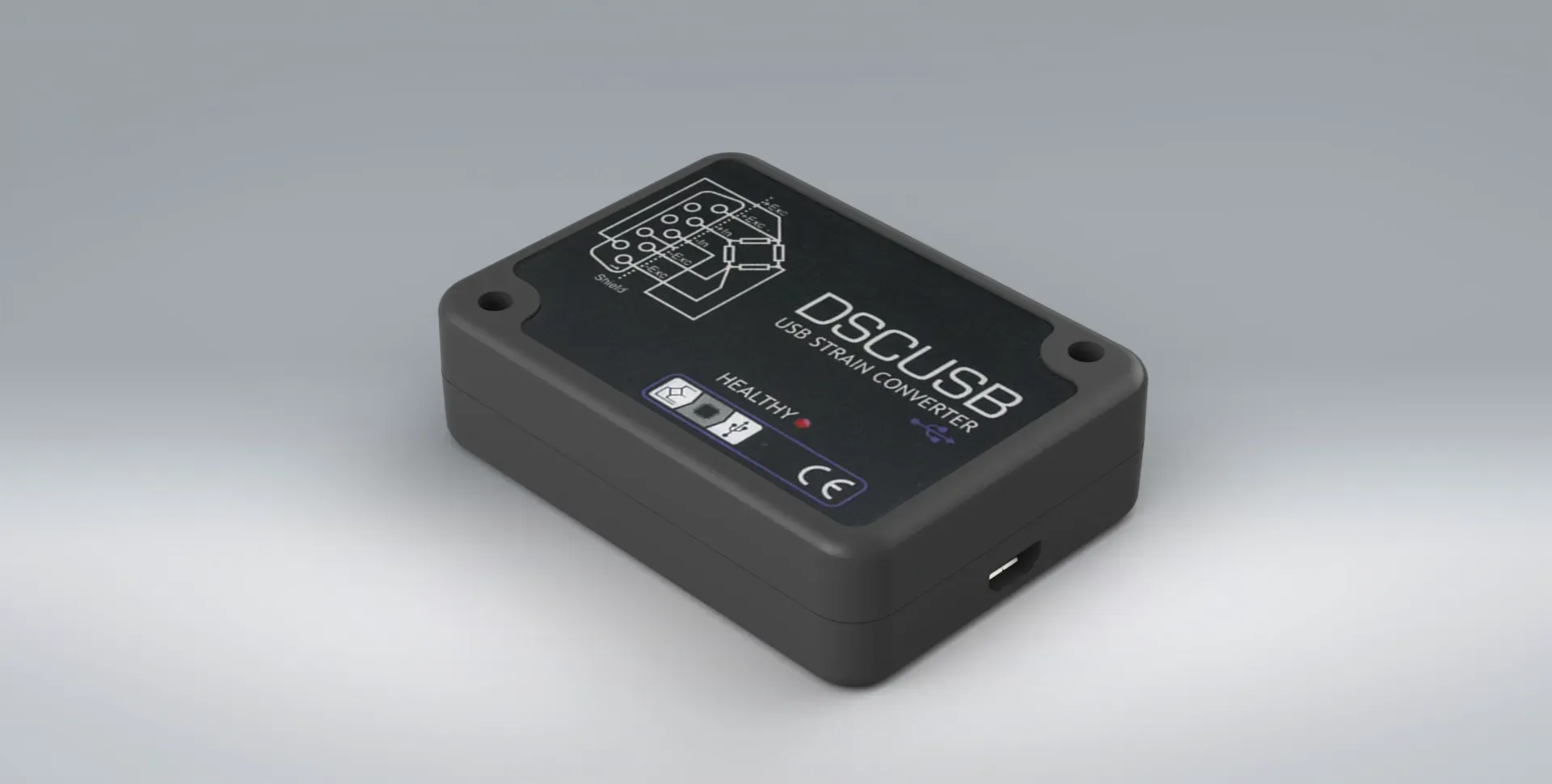

Back view of the DSCUSB strain gauge digital signal conditioner

Sands of Time

Stark beauty of desolate dunes
Button

Similar Products

A black PSDS display device with a screen and touchpad of arrows and buttons.

PSDS

April 29, 2024
OUTPUT: USB/DISPLAY
POWER SUPPLY: 2XAA/USB
RATING: IP64

available
A black box T24 wireless telemetry sensor system for industrial sensor applications, sat on a grey background.

T24

April 27, 2024
OUTPUT: 2.4GHz/DISPLAY
POWER SUPPLY: BATTERY/USB
RATING: IP50-IP67

available
The INT4-L weighing indicator device for load cells. It is a black box with a clear readable screen and orange components.

INT4

April 20, 2024
OUTPUT: DISPLAY
POWER SUPPLY: 110-240VAC/11-30VDC
RATING: IP65

Typical Specification

PARAMETER VALUE
Strain Gauge Measurement 4-Wire
Strain Gauge Excitation Voltage 5V DC
Strain Gauge Drive Capability 85Ω
Strain Gauge Sensitivity 3mV/V
Temperature Stability (OFFSET) 5ppm/°C
Temperature Stability (GAIN) 5ppm/°C
Non-Linearity (BEFORE LINEARIZATION) 25ppm/FR
Internal Resolution 16million counts/divisions
Resolution at 1Hz 200,000 counts/divisions
Resolution at 10Hz 120,000 counts/divisions
Resolution at 100Hz 50,000 counts/divisions
Power Supply (Voltage USB) 5V DC
Power Supply (CURRENT 350Ω BRIDGE) 68Ma
Output Cable Length (MAXIMUM) 5m
Data Transmission Rate 115.200kbps
Environmental Protection IP50
Operating Temperature Range -40 to +85°C
Storage Temperature Range -40 to +85°C
Maximum Humidity 95% RH

Outline Dimensions (mm)

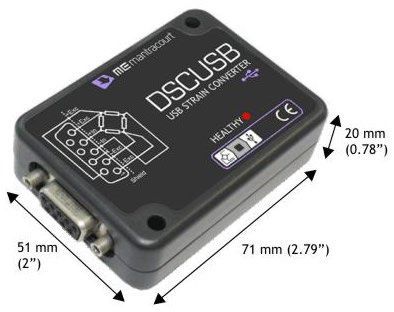

External outline dimensions for the DSCUSB strain gauge digital conditioner.

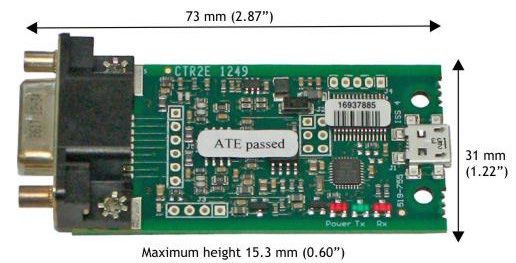

Internal front side dimensions of the DSCUSB strain gauge digital conditioner.

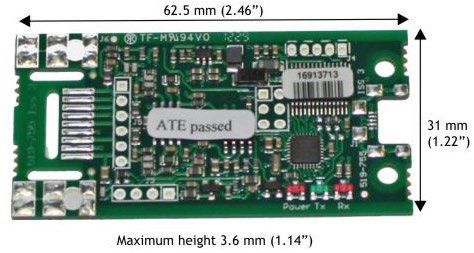

Internal backside dimensions for the DSCUSB strain gauge digital conditioner.

Ordering Codes

CODE DESCRIPTION
DSCUSB Standard DSCUSB cased digitiser module.
DSCUSB-A DSCUSB module, cased, 4.5mV/V sensitivity.
DSCUSBOEM1 DSCUSB PCB – uncased.
DSCUSBOEM1A DSCUSB PCB – uncased, 4.5mV/V sensitivity.
DSCUSBOEM Uncased DSCUSB module without field connectors.
DSCUSB-DIN DIN rail mounting kit.
DTEMP Digital temperature sensor module for wiring to DSCUSB.
