SG4

OUTPUT
mV/V

POWER SUPPLY
BRIDGE DEPENDENT

RATING
IP65

The SG4 junction box enables the user to perform connections in parallel of 4 load cells with 4 or 6 wires.


The SG4 makes weighing, dosing and plant controlling easier, whenever connecting load cells in parallel is necessary in order to have a single output signal that represents the sum of the signals of connected load cells.


The SG4 has five terminal boards with screw-type clamping have been arranged to connect load cells in parallel and they are used to perform electrical connections of both input and output cables.


To view the full specification, please download the product datasheet.

View Data sheet Contact us
SG4 junction box for Load cells and strain gauges

Nature's Symphony

Breathtaking colors of our planet
Button

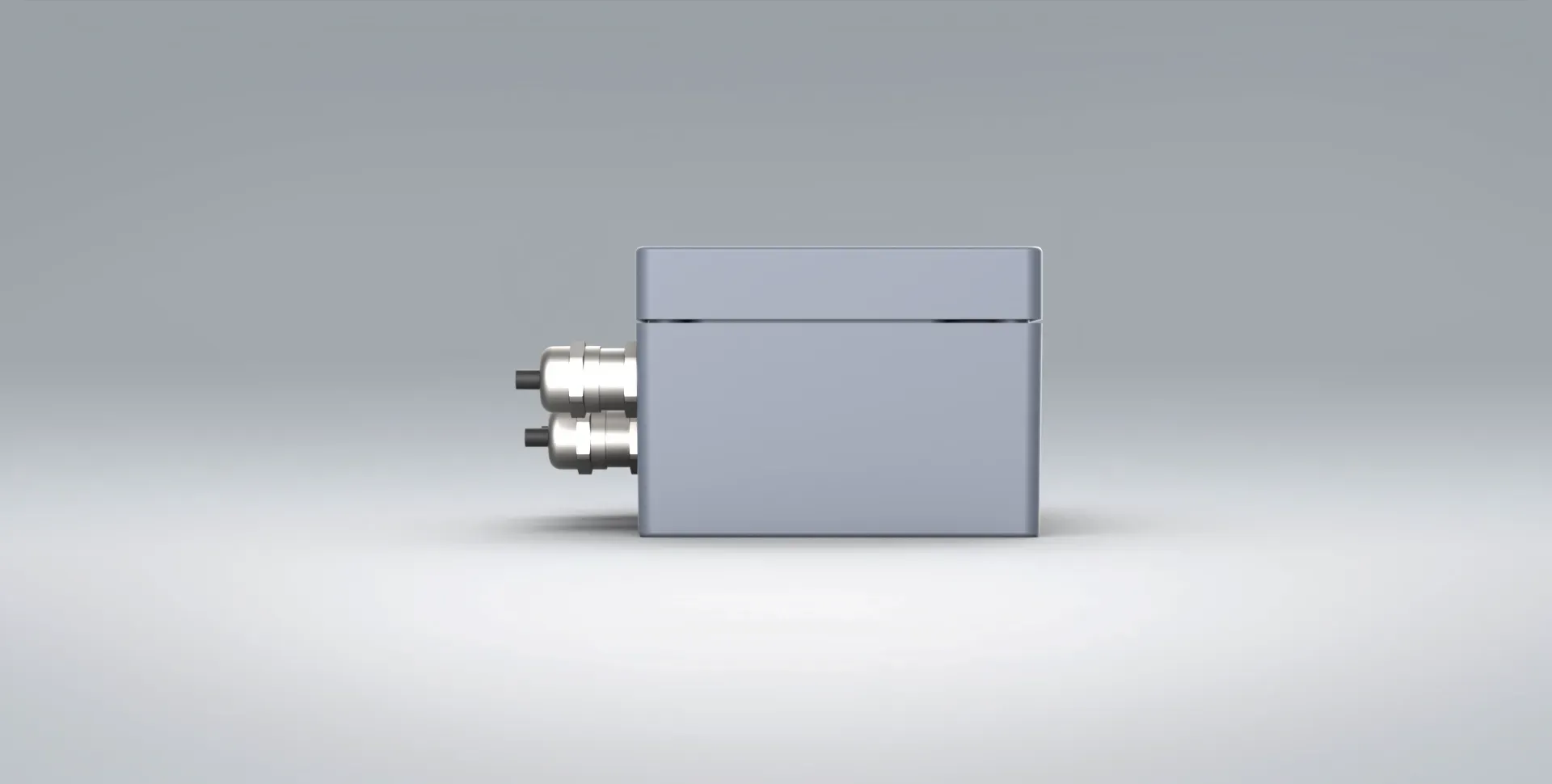

Side on view of the SG4 junction box from Procter & Chester Measurements
