IUA DUPE

Miniature Universal Amplifier

OUTPUT
4-20mA, 0.5-4.5V, 0-10V, ±10V

POWER SUPPLY
12-30VDC, ±12-±30VDC

RATING
IP67

The IUA miniature universal amplifier is a compact, digitally configurable strain gauge and load cell signal conditioner designed for integration within load cells or installed in an inline housing where space is limited. Supplied in miniature PCB format, the IUA provides a flexible solution for converting low-level mV/V signals into industry-standard analogue outputs.


Designed for versatile system integration, the amplifier supports multiple configurable output options, including voltage and current formats, allowing it to interface easily with control systems, PLCs and data acquisition equipment. Stable three-wire measurement connections ensure reliable signal performance, while configuration and calibration can be carried out via the OWI communication interface, enabling adjustments without direct access to the installed unit.


To improve measurement accuracy across applications, the IUA supports multi-point linearisation, and configuration settings can be saved and restored to maintain consistent setup during servicing or replication across installations.


For applications requiring external installation, the amplifier is also available with an optional stainless-steel inline enclosure, capable of housing up to two IUA units while providing robust environmental protection for industrial use.


For full technical specifications, please download the product datasheet.


View Data sheet Get a Quote
The ICA strain gauge amplifier. Miniature analogue signal conditioner from PCM.

Nature's Symphony

Breathtaking colors of our planet
Button
Bottom view of the ICA strain gauge amplifier from Procter and Chester Measurements

Sands of Time

Stark beauty of desolate dunes
Button
Top view of the ICA instrument, a popular strain gauge amplifier

Faces of Humanity

Portraits of people from around the globe
Button

Similar Products

CAD model of the IPA ulra-miniature load cell amplifier. A small, green, computer chip-like signal c

IPA

By Michael.wimbury • April 26, 2024
OUTPUT: 0.5-4.5V
POWER SUPPLY: 8-30VDC
RATING: ENCLOSURE DEPENDENT
The ICA strain gauge amplifier from PCM is a miniature analogue signal conditioner. It is a small green circuit board.

ICA

April 24, 2024
OUTPUT: 4-20mA, 0-5V, 0-10V, ±5V, ±10V
POWER SUPPLY: 7.5/28VDC
RATING: ENCLOSURE DEPENDENT
A black box SGA amplifier, simple to use and cost effective, with green and white branding on the front on a grey background.

SGA

April 23, 2024
OUTPUT: 4-20mA, 0-5V, 0-10V, ±10V
POWER SUPPLY: 110/230VAC, 18-24VDC, 9-36VDC
RATING: IP67

available
Premium Quality Products Badge in White and Green

Premium Quality

Fast Turnaround Badge in White and Green

Rapid Turnaround

Dedicated Support Team Badge in White and Green

Dedicated Support Team

Warranty Badge in White and Green

12 Month Warranty

Technical Specifications

PARAMETER VALUE
Supply Voltage Range 12 to 30VDC or ±12 to ±30VDC.
Supply Current 25mA.
Bridge Excitation 1.75VDC.
Minimum Bridge Resistance 350Ω.
Bridge Sensitivity 1 to 500mV/V.
Input Resolution 1:16,700,000 (24 bits)
Analogue Outputs 4-20mA or 0.5-4.5V or 0-10V or ±10V.
Analogue Output Resolution 1:65,000 (16 bits)
Bandwidth 2.9kHz.
Storage Temperature -40 to +125°C.
Operating Temperature -40 to +150°C.

Approvals

PARAMETER VALUE
EMC Directive 2014/30/EU
Low Voltage Directive 2014/35/EU
RoHS Directive 2011/65/EU
EMC Standards BSEN 61326-1:2013, BS EN 61326-2-3:2013
Low Voltage Standard BSEN 61010-1-2010

Additional Information

  • Miniature digitally configured strain gauge conditioner/load cell amplifier.

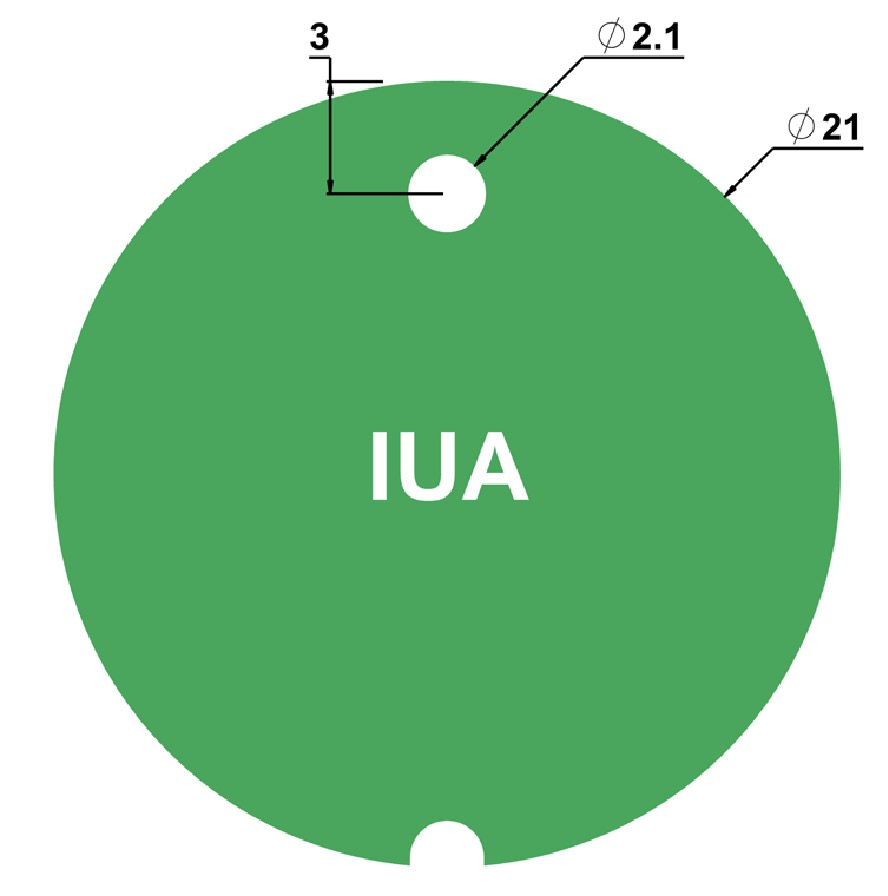

  • PCB format for easy fitting inside sensors or an inline housing.
  • Analogue output configurable between 0.5-4.5V, ±10V, 4-20mA
  • or 0-10V.
  • 3-Wire measurement connections for stable output.
  • “Universal” functionality allows easy set-up and calibration via OWI
  • communication protocol.
  • 2-point or 3-point linearization available.
  • Configuration can be saved and restored for security of setup.
  • Optional inline stainless-steel housing to hold up to 2 IUAs.
